Support Bearing

  1. Install bearing into retainer.
    Fig 1: Installing Support Bearing Into Retainer
    G01318950Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install dust shield.
  3. Install snap ring.
  4. Press drive shaft into bearing.
    Fig 2: Pressing Drive Shaft Into Support Bearing
    G01318951Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install snap ring.
  6. Install new dust shield.

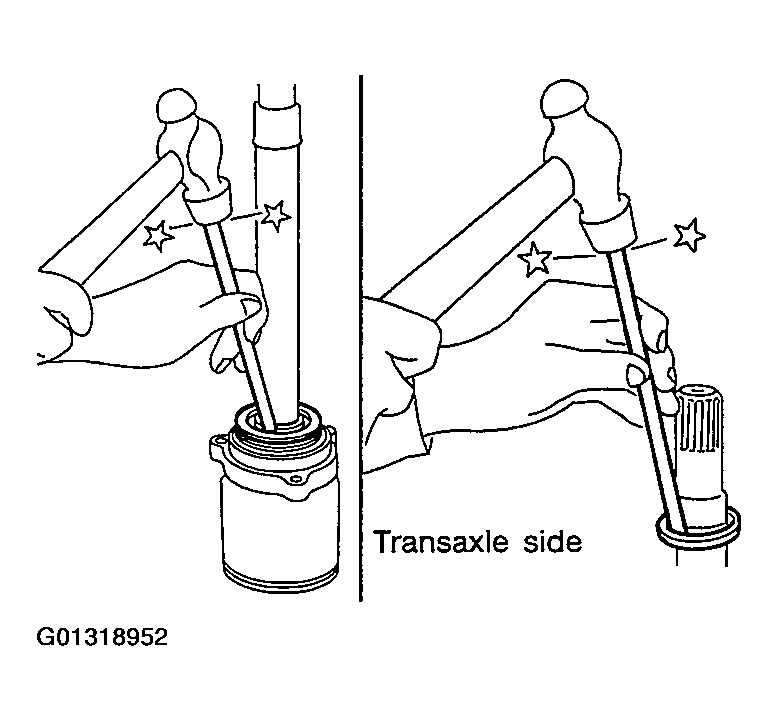

    Fig 3: Installing Snap Ring And Dust Shield - Support Bearing
    G01318952Courtesy of NISSAN MOTOR CO., U.S.A.
