Wheel Hub And Knuckle: Components

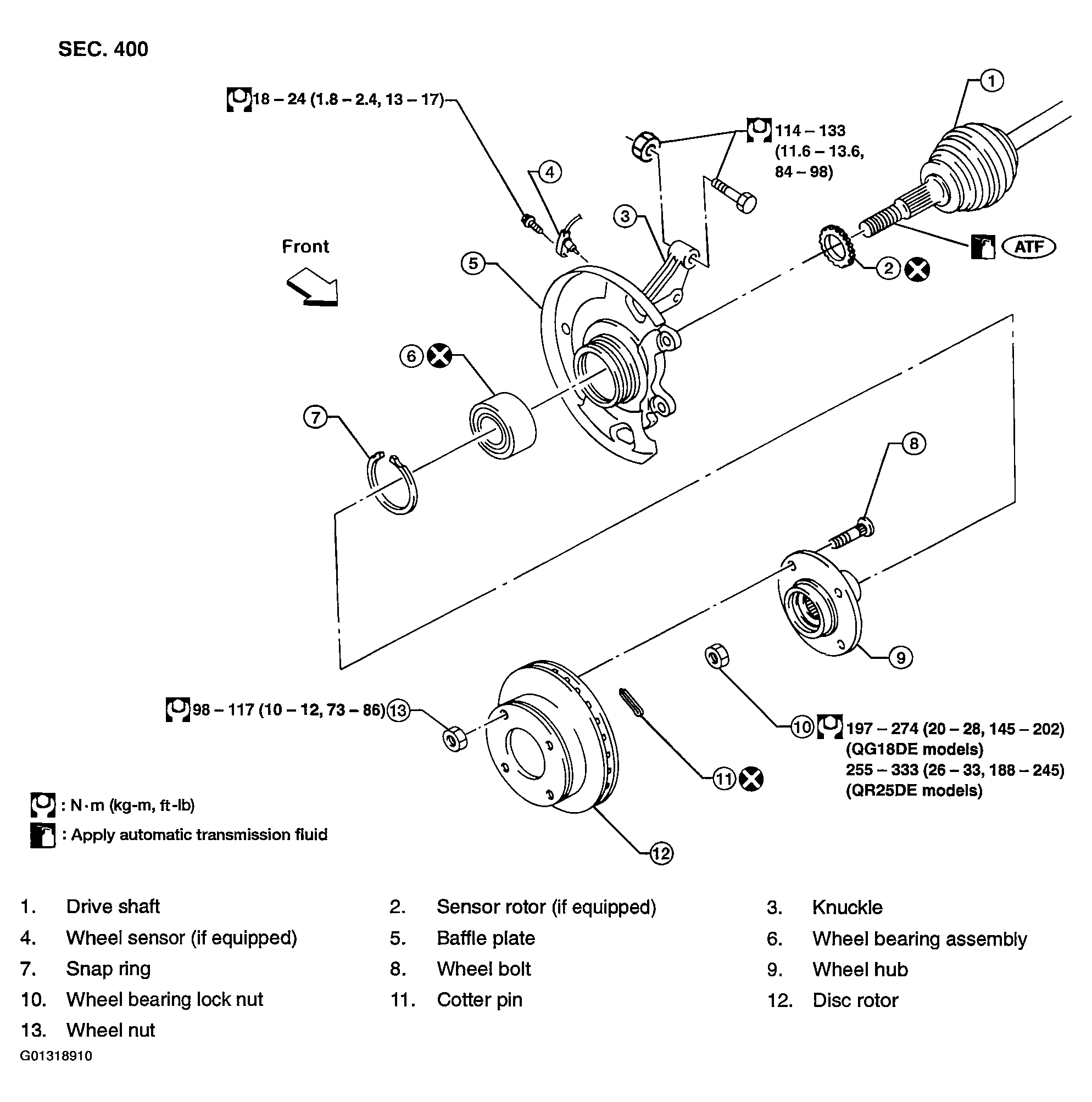

Fig 1: Identifying Wheel Hub And Knuckle Components

G01318910

Courtesy of NISSAN MOTOR CO., U.S.A.
