Wheel Hub: Components

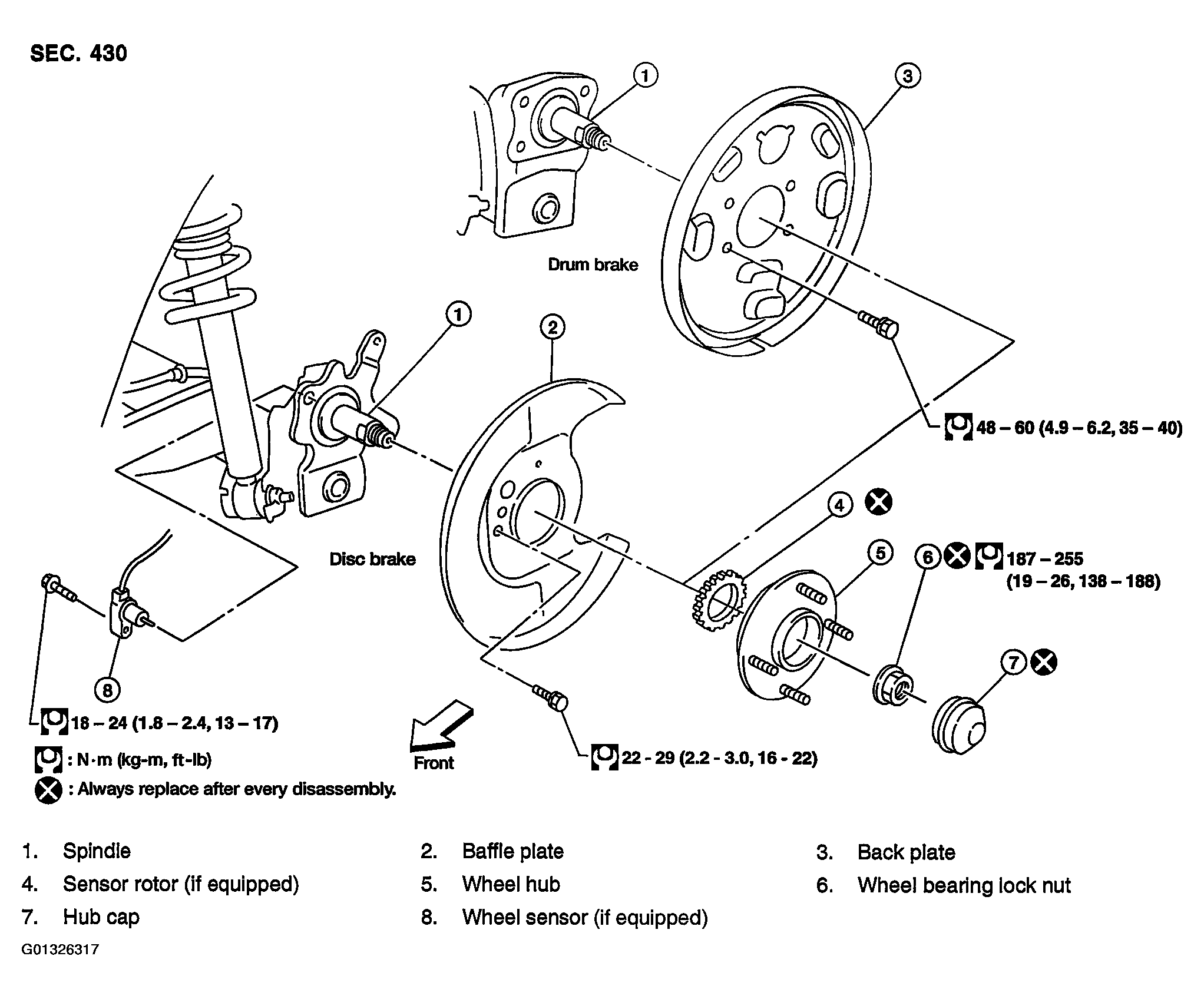

Fig 1: Identifying Wheel Hub Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
