Lubrication System: Notes

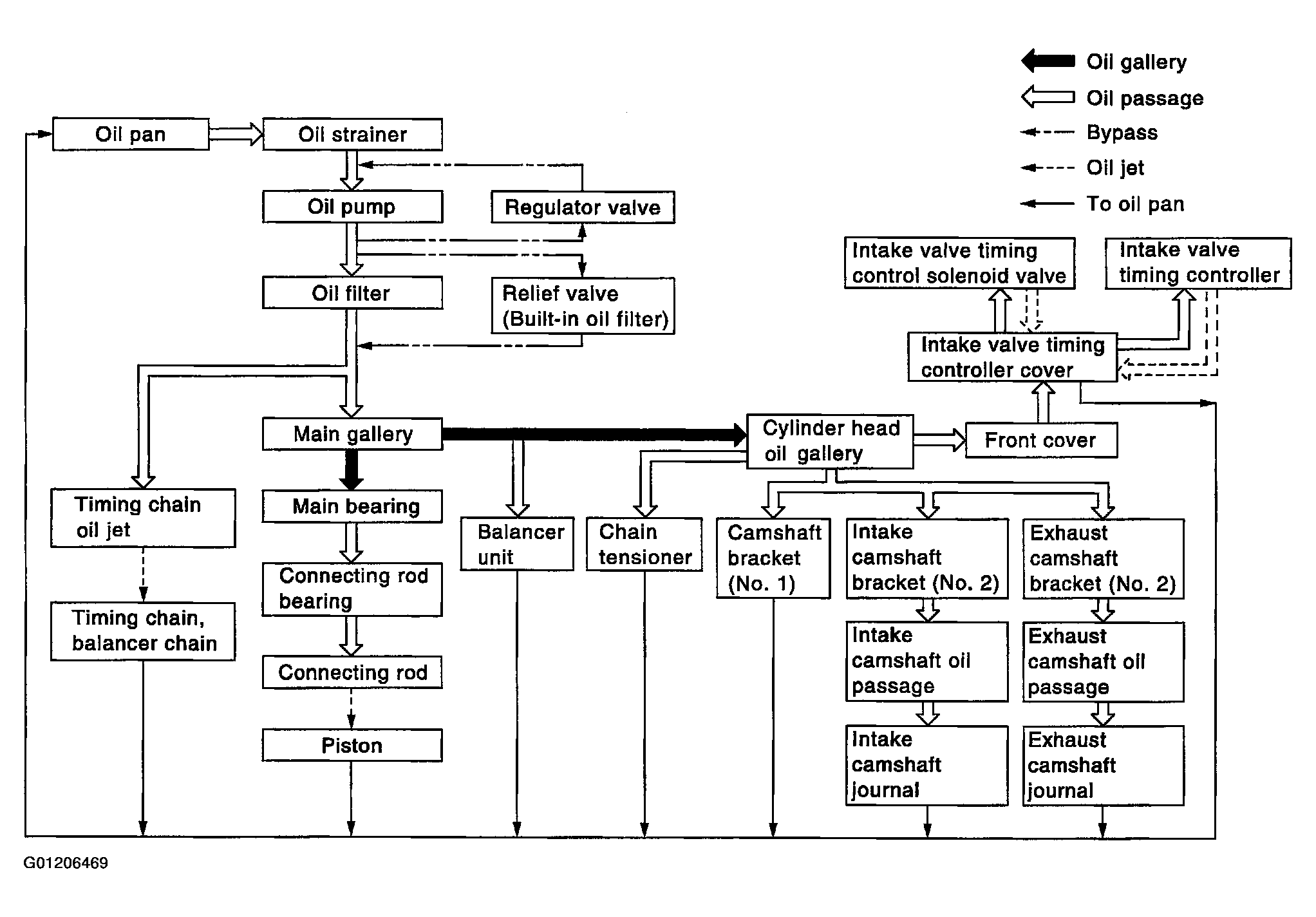

Fig 1: Lubrication Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

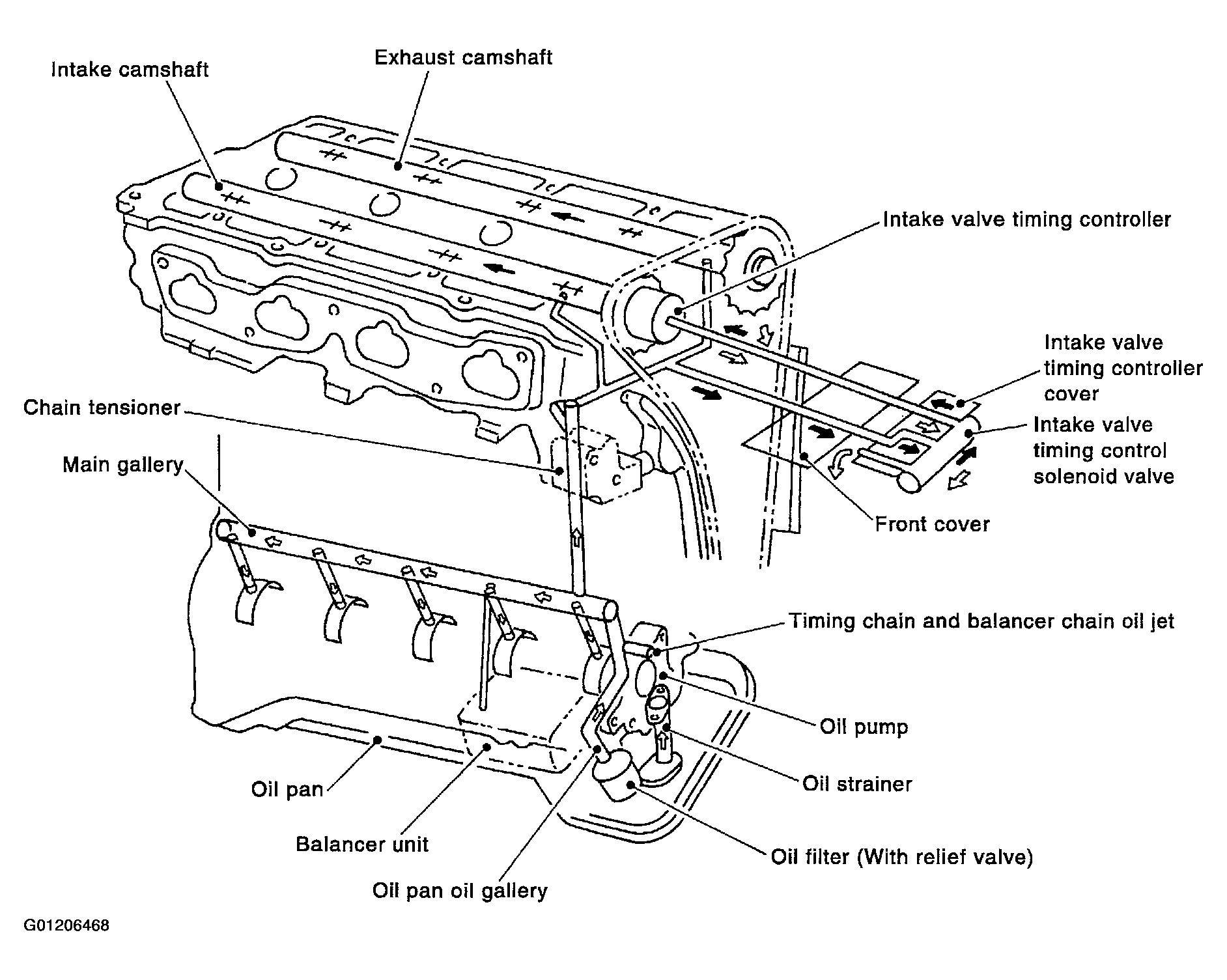

Fig 2: System Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
