Connector Identification

NOTE: For connector terminal identification not shown, see included circuit diagram/connector terminal identification within appropriate DTC testing procedure.

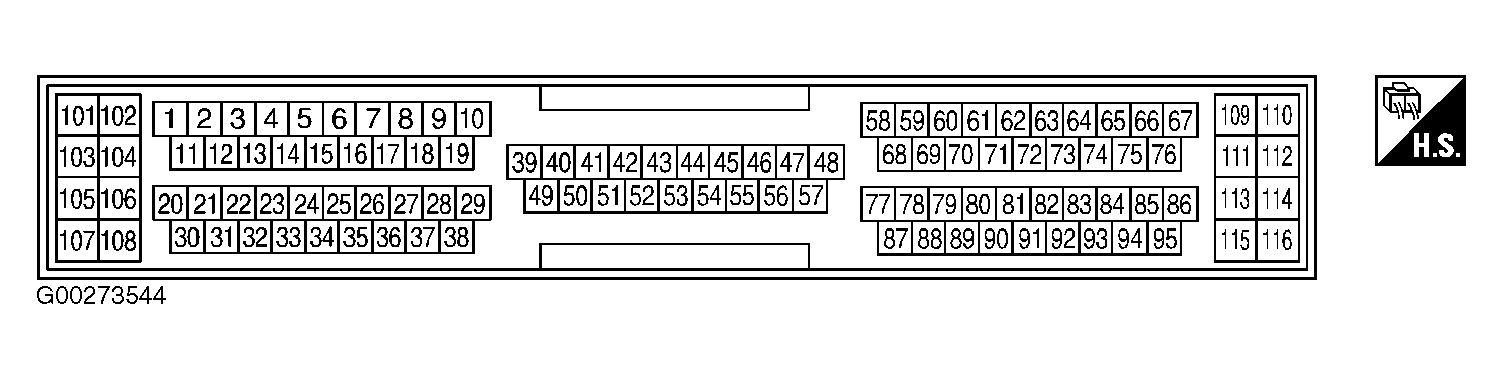

Fig 1: Identifying ECM Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
