Component Inspection

For the component inspection, see Fig 1 .

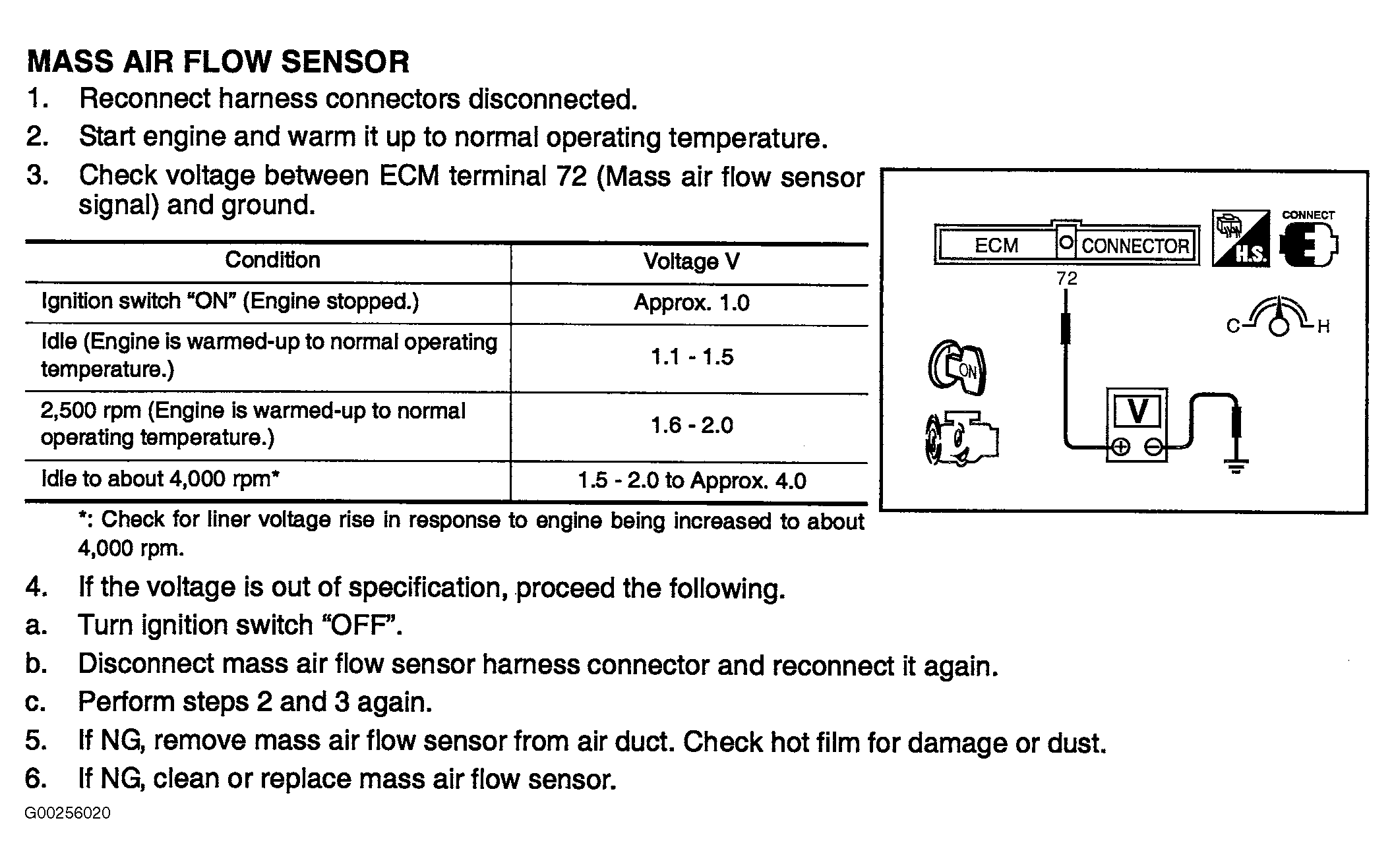

Fig 1: DTC P0101 Component Inspection
G00256020Courtesy of NISSAN MOTOR CO., U.S.A.
