Engine Controls - Self-Diagnostics (Qr25DE)
›
Diagnostic Tests
›
DTC P0452: EVAP Control System Pressure Sensor Low Input
›
Component Inspection
Component Inspection
For component inspection, see

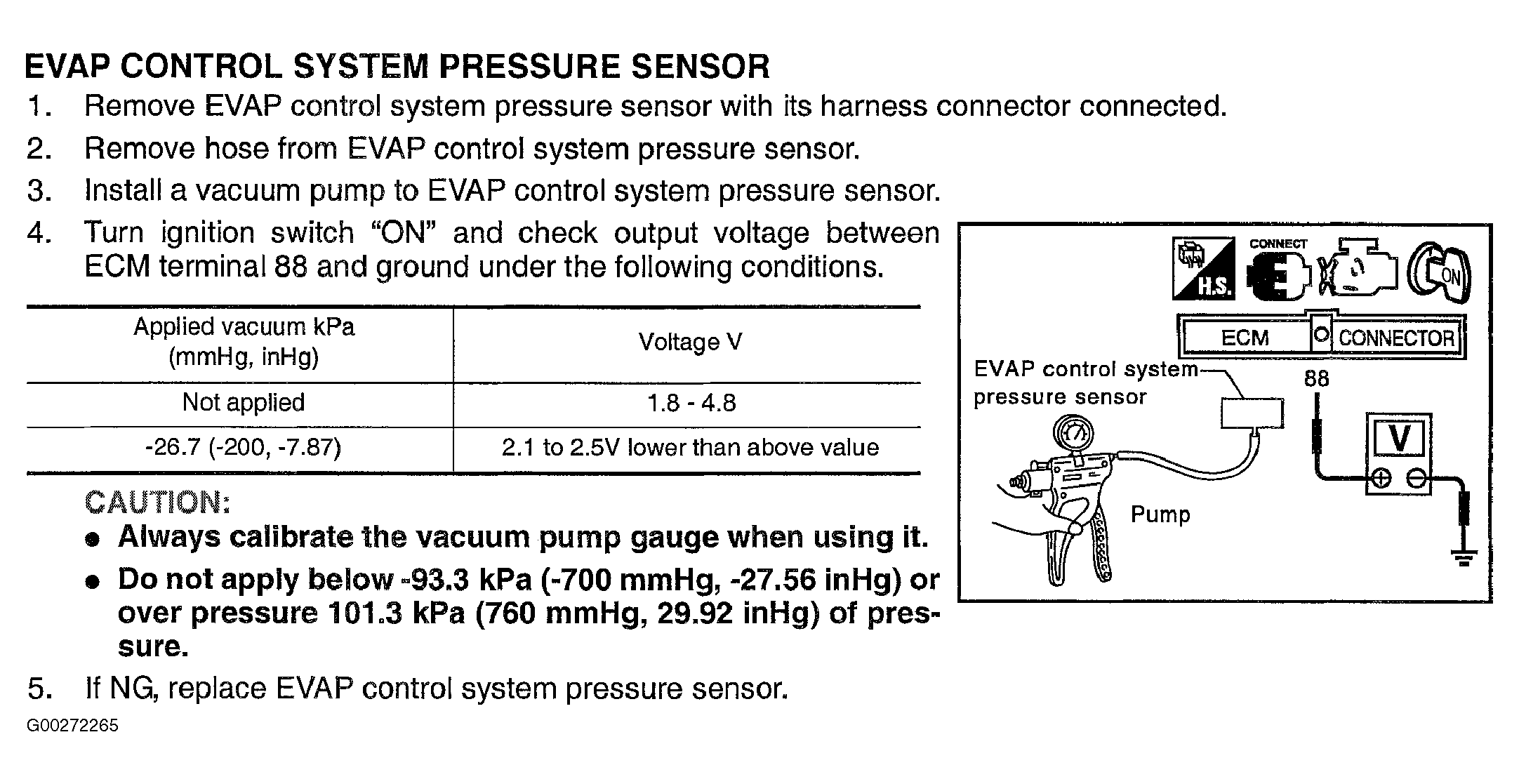

Fig 1
.
Fig 1: DTC P0452 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
