Engine Controls - Self-Diagnostics (Qr25DE)
›
Diagnostic Tests
›
DTC P0453: EVAP Control System Pressure Sensor High Input
›
Component Inspection
Component Inspection
For component inspection, see
Fig 1
.

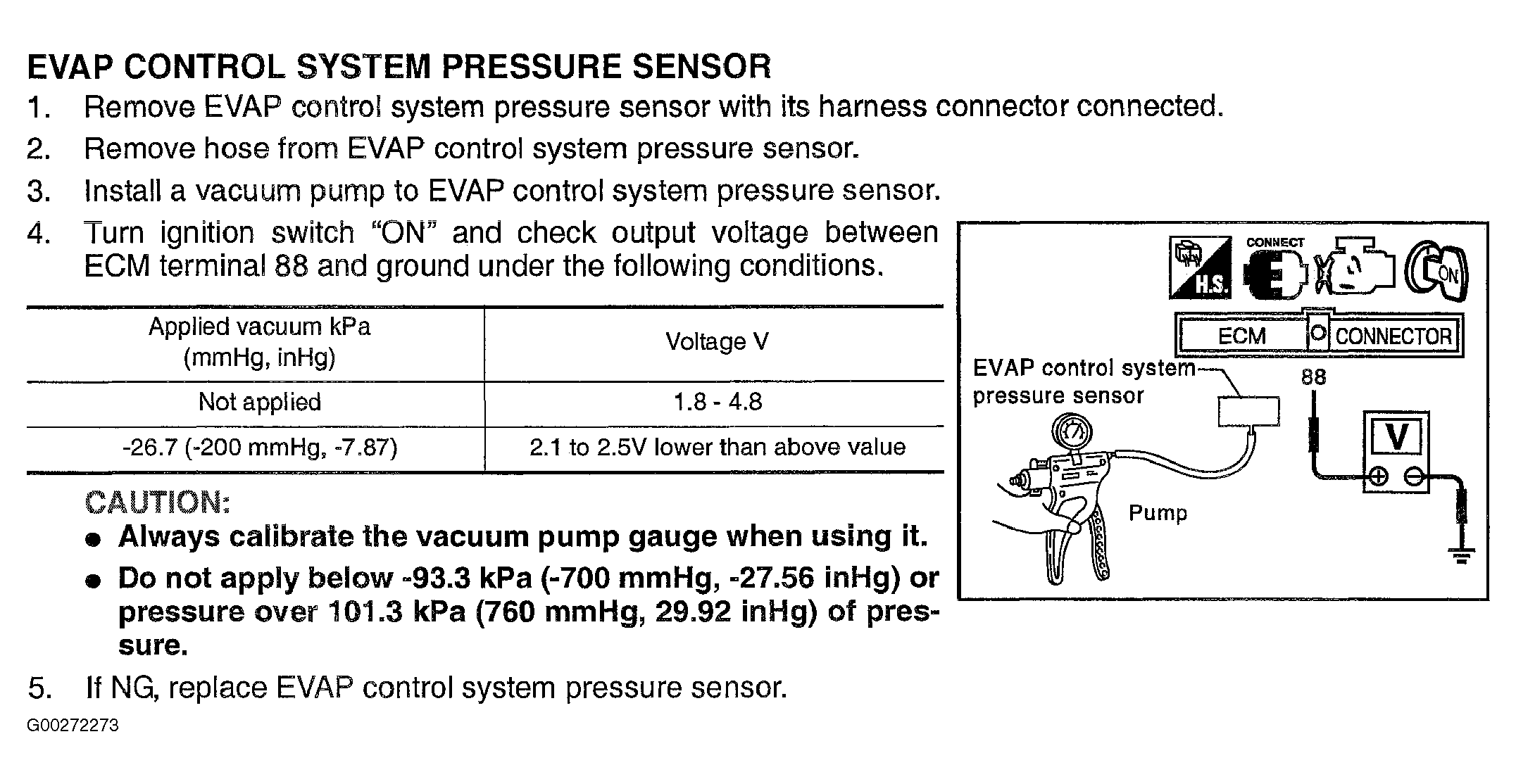

Fig 1: DTC P0453 Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
