Circuit Identification

For circuit identification, see Fig 1 and Fig 2 .

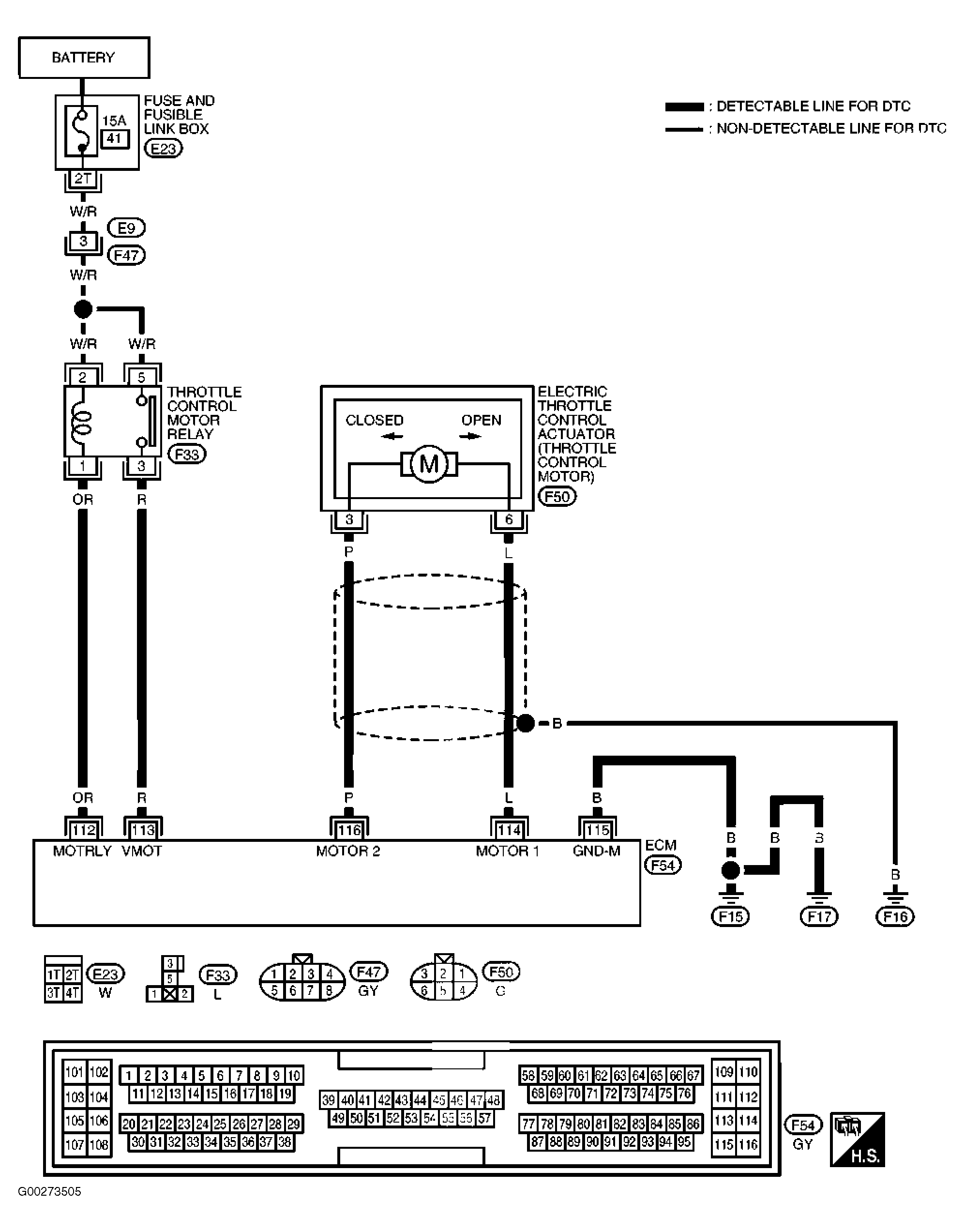

Fig 1: DTC P1122 Electric Throttle Control Function Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

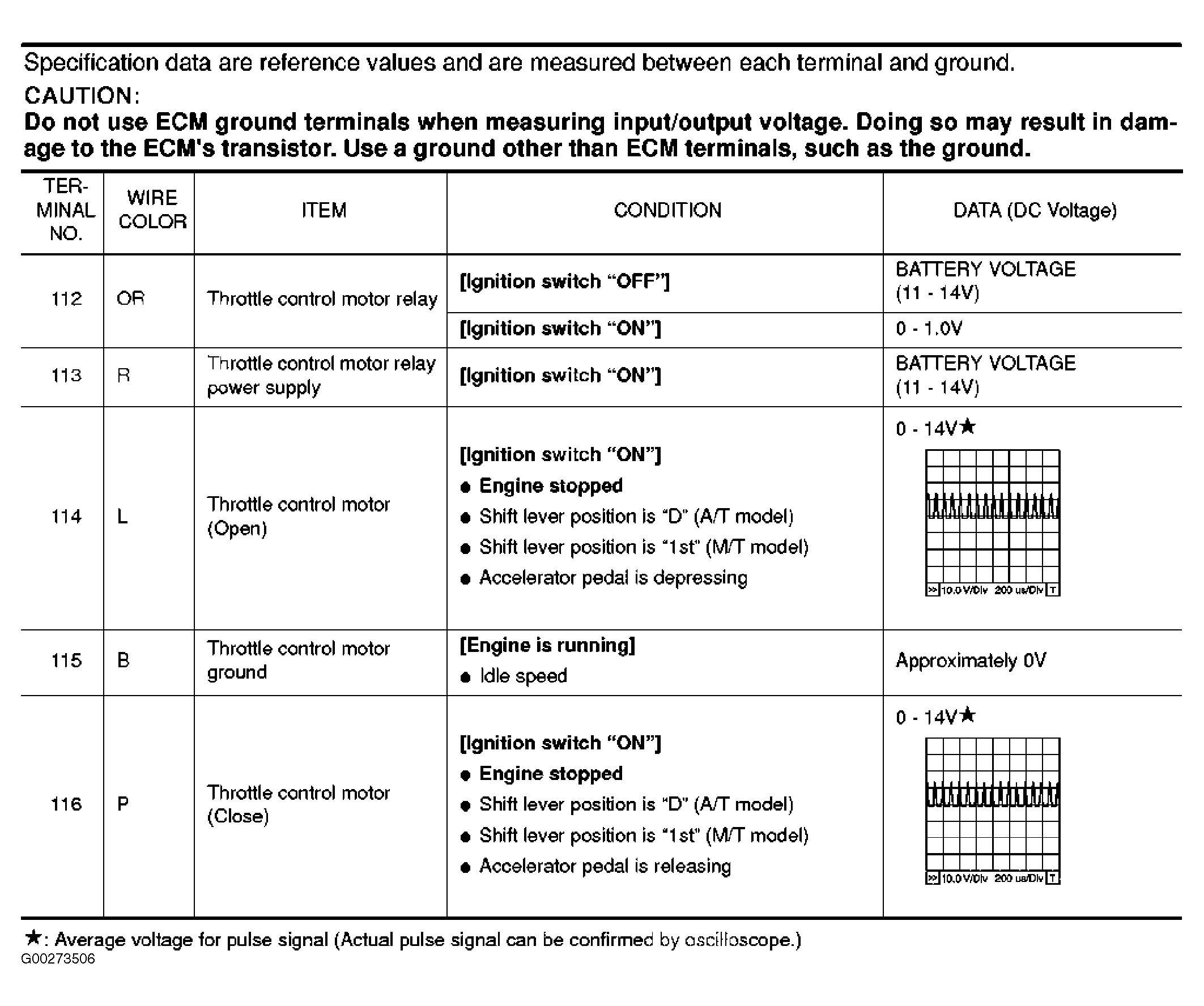

Fig 2: DTC P1122 Electric Function Throttle Control Function Circuit Terminal Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
