Component Inspection

For component inspection, see Fig 1 or Fig 2 .

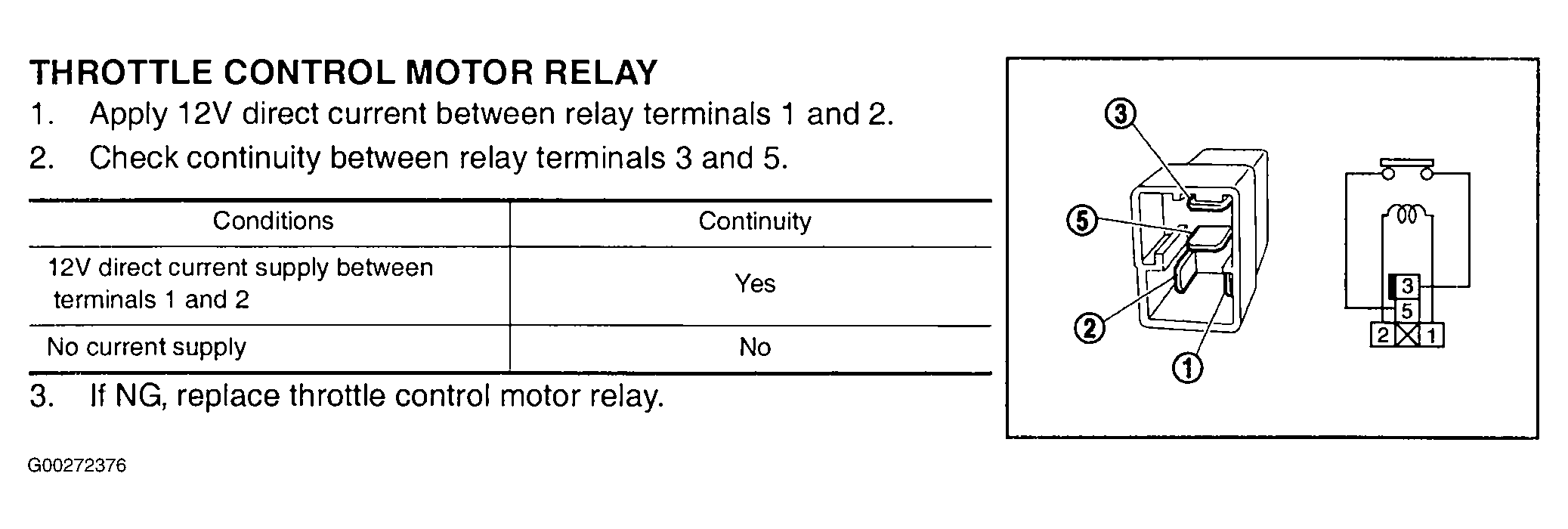

Fig 1: DTC P1122 Component Inspection (Throttle Control Motor Relay)

Courtesy of NISSAN MOTOR CO., U.S.A.

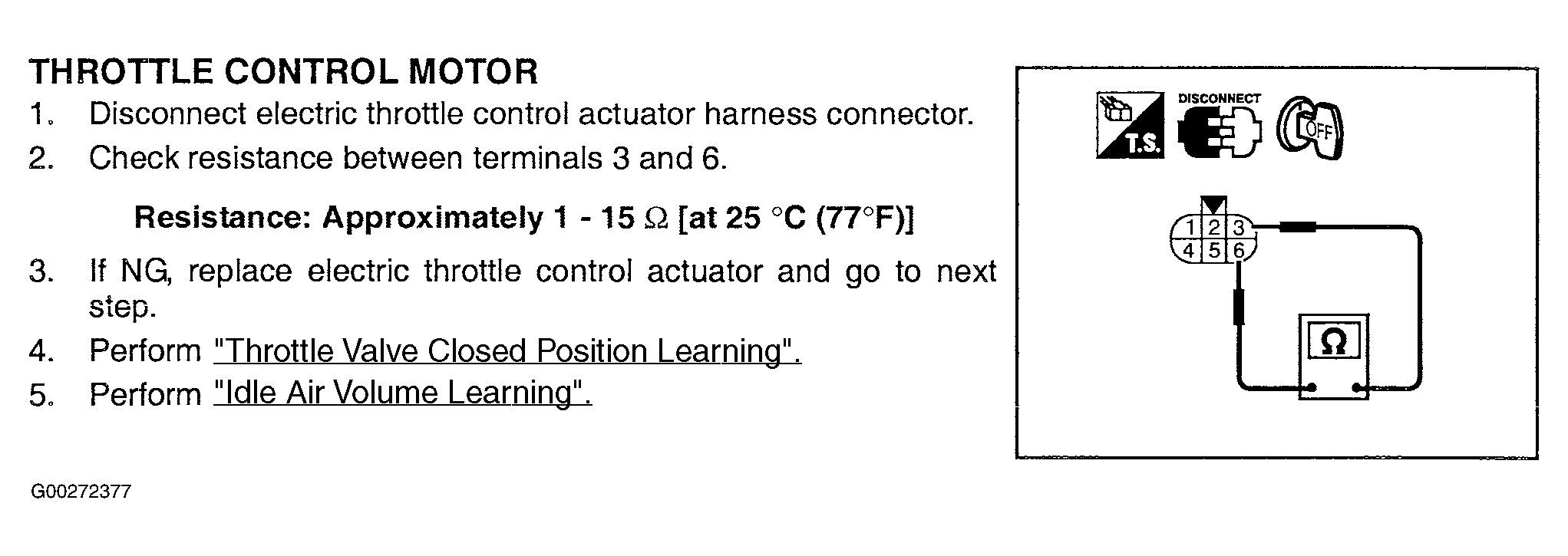

Fig 2: DTC P1122 Component Inspection (Throttle Control Motor)

Courtesy of NISSAN MOTOR CO., U.S.A.
