Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 4 .

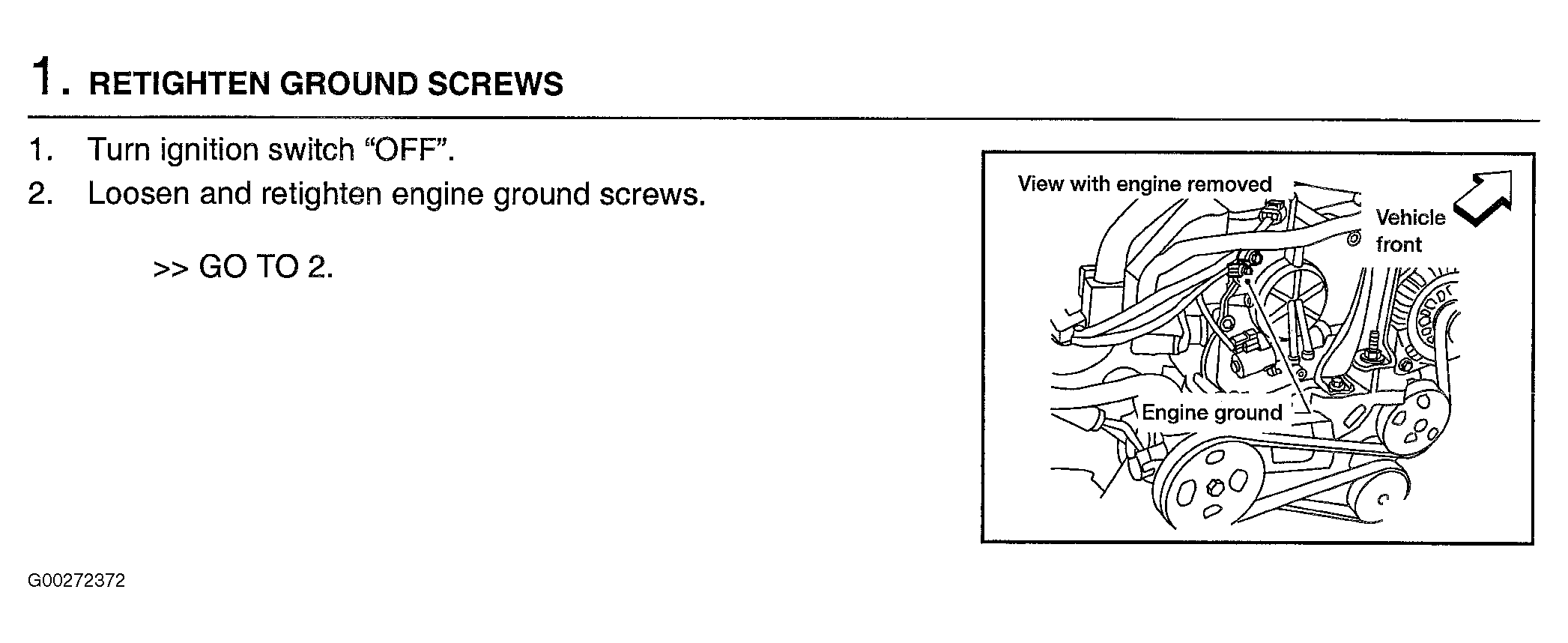

Fig 1: DTC P1122 Diagnostic Procedure (Step 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

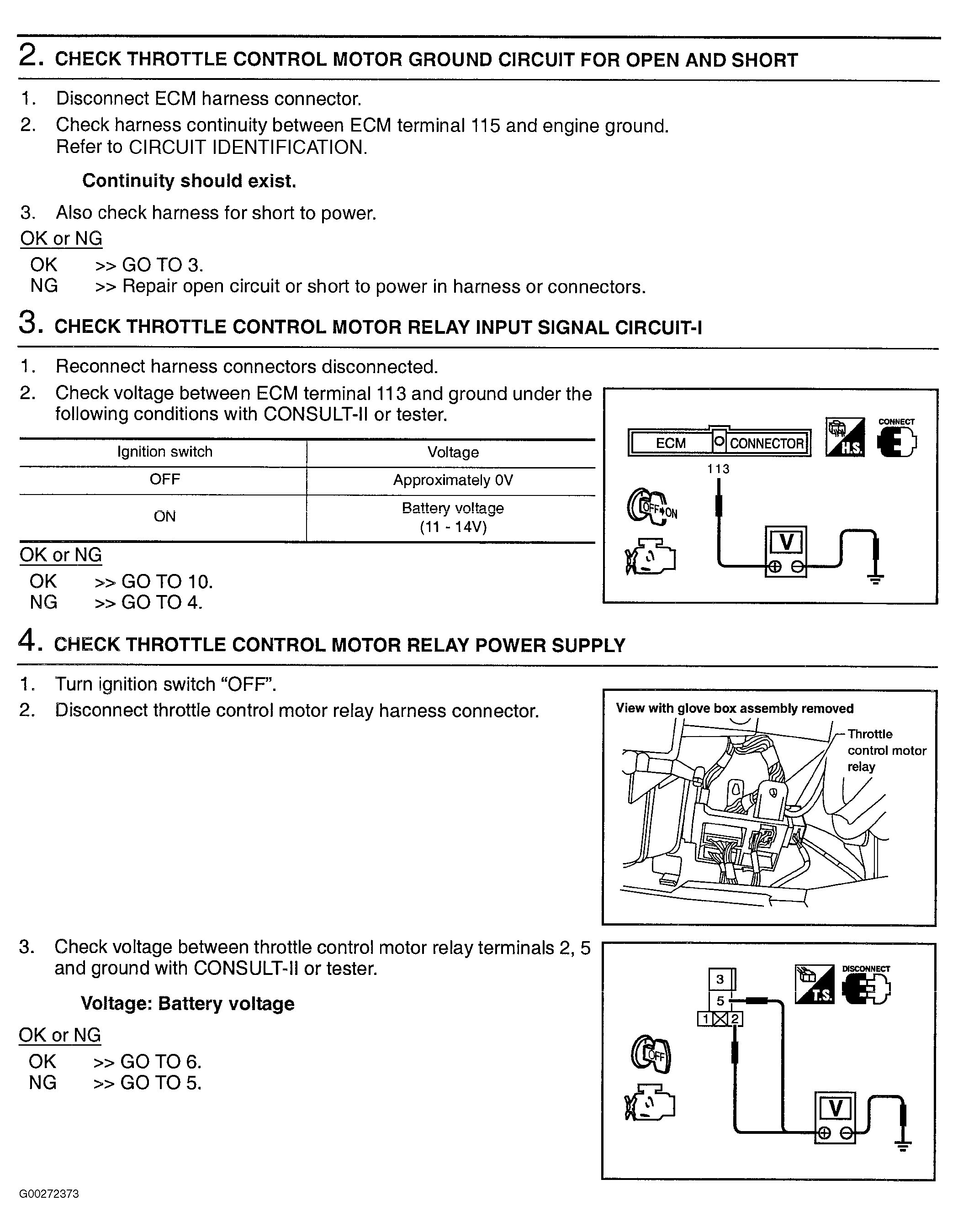

Fig 2: DTC P1122 Diagnostic Procedure (Steps 2-4)

Courtesy of NISSAN MOTOR CO., U.S.A.

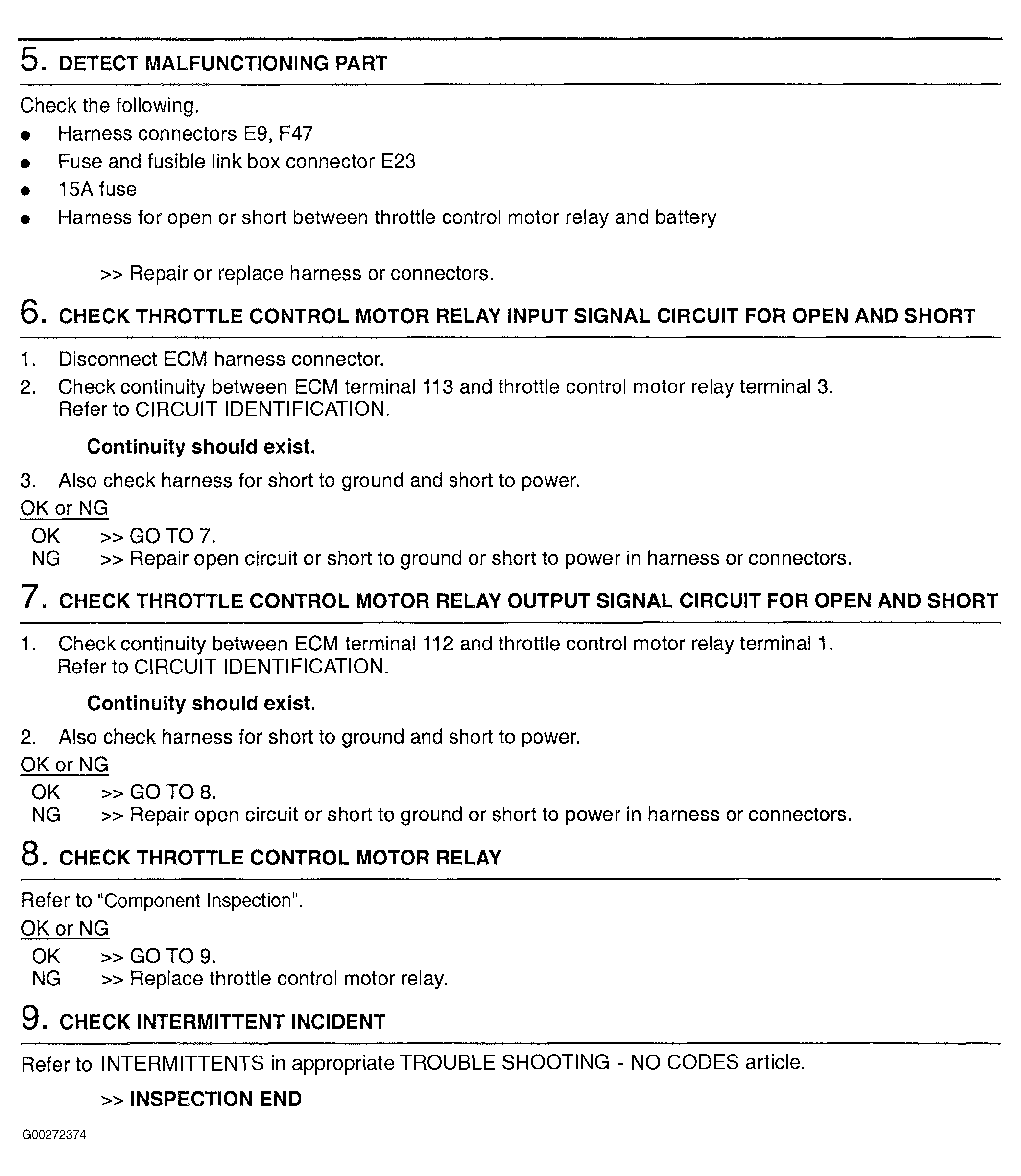

Fig 3: DTC P1122 Diagnostic Procedure (Steps 5-9)

Courtesy of NISSAN MOTOR CO., U.S.A.

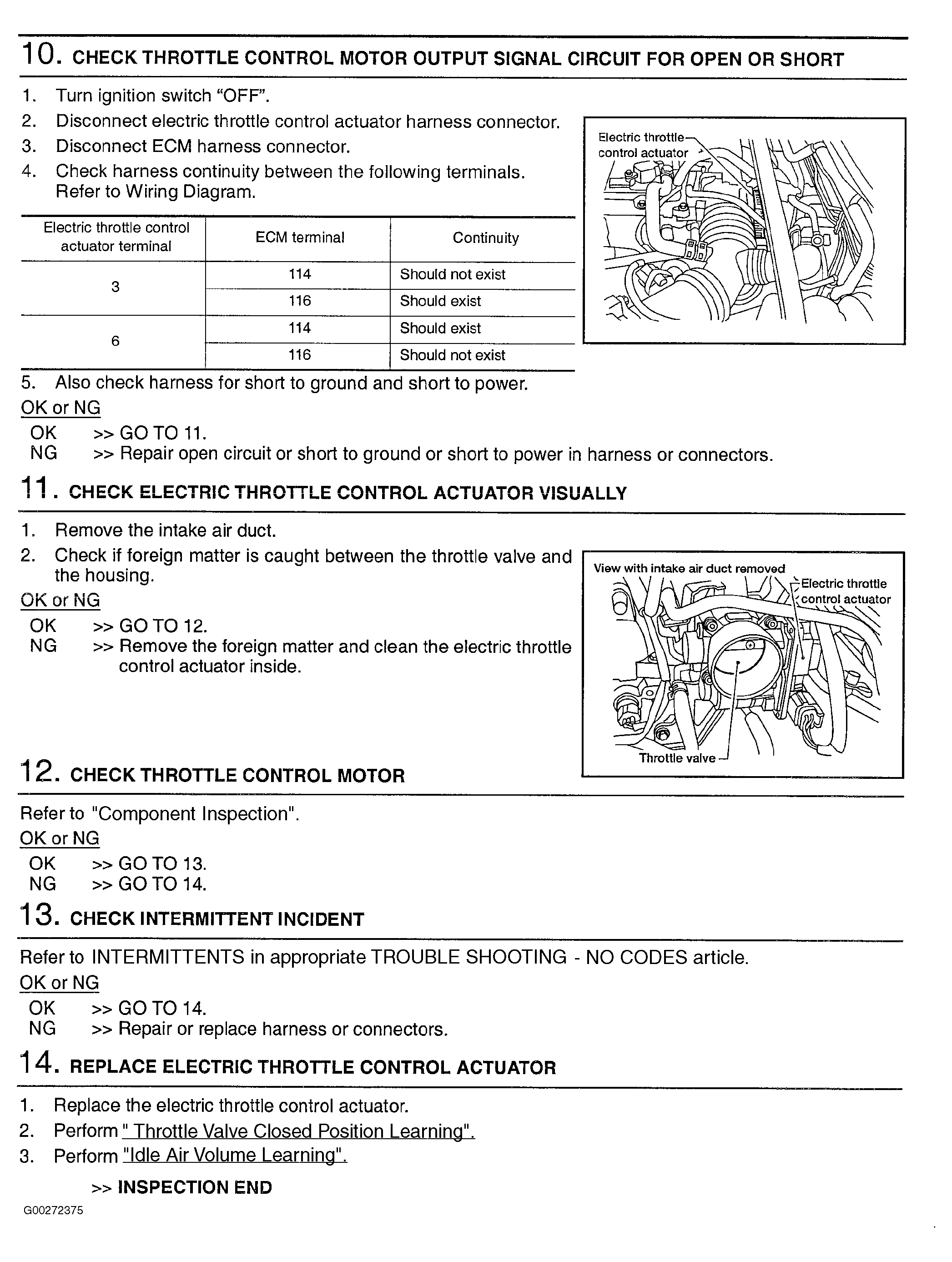

Fig 4: DTC P1122 Diagnostic Procedure (Steps 10-14)

Courtesy of NISSAN MOTOR CO., U.S.A.
