Overall Function Check

For overall function check, see Fig 1 .

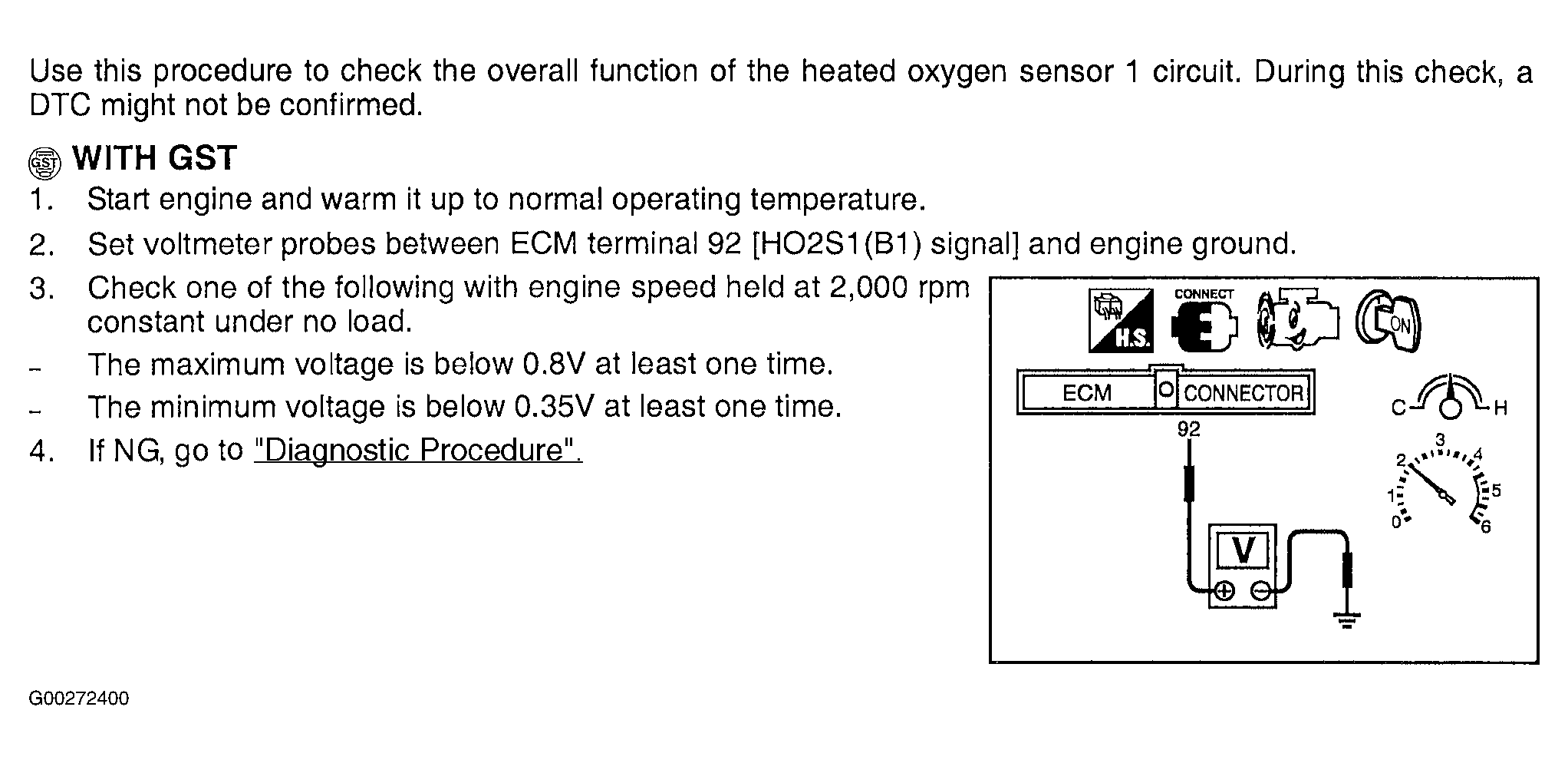

Fig 1: DTC P1144 Overall Function Check
G00272400Courtesy of NISSAN MOTOR CO., U.S.A.
