Component Inspection

For component inspection, see Fig 1 -Fig 3 .

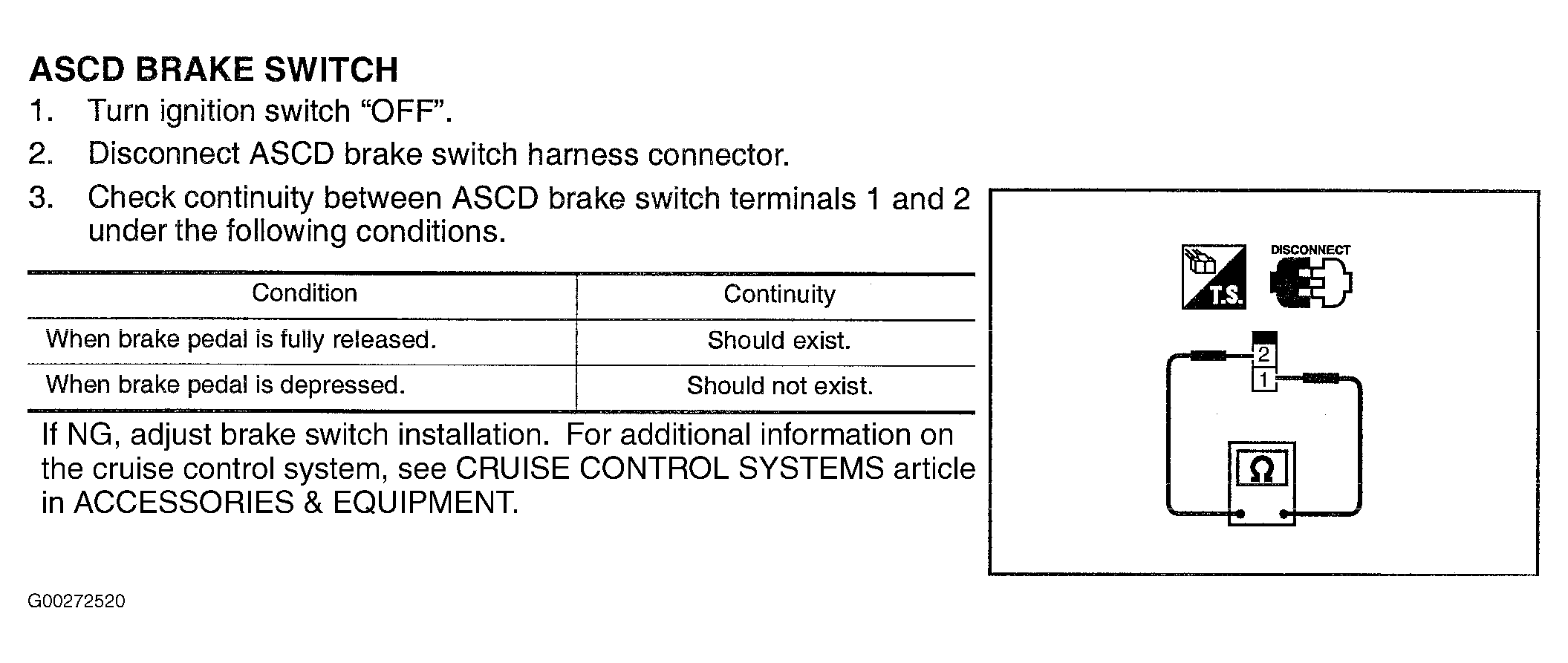

Fig 1: DTC P1572 Component Inspection (ASCD Brake Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.

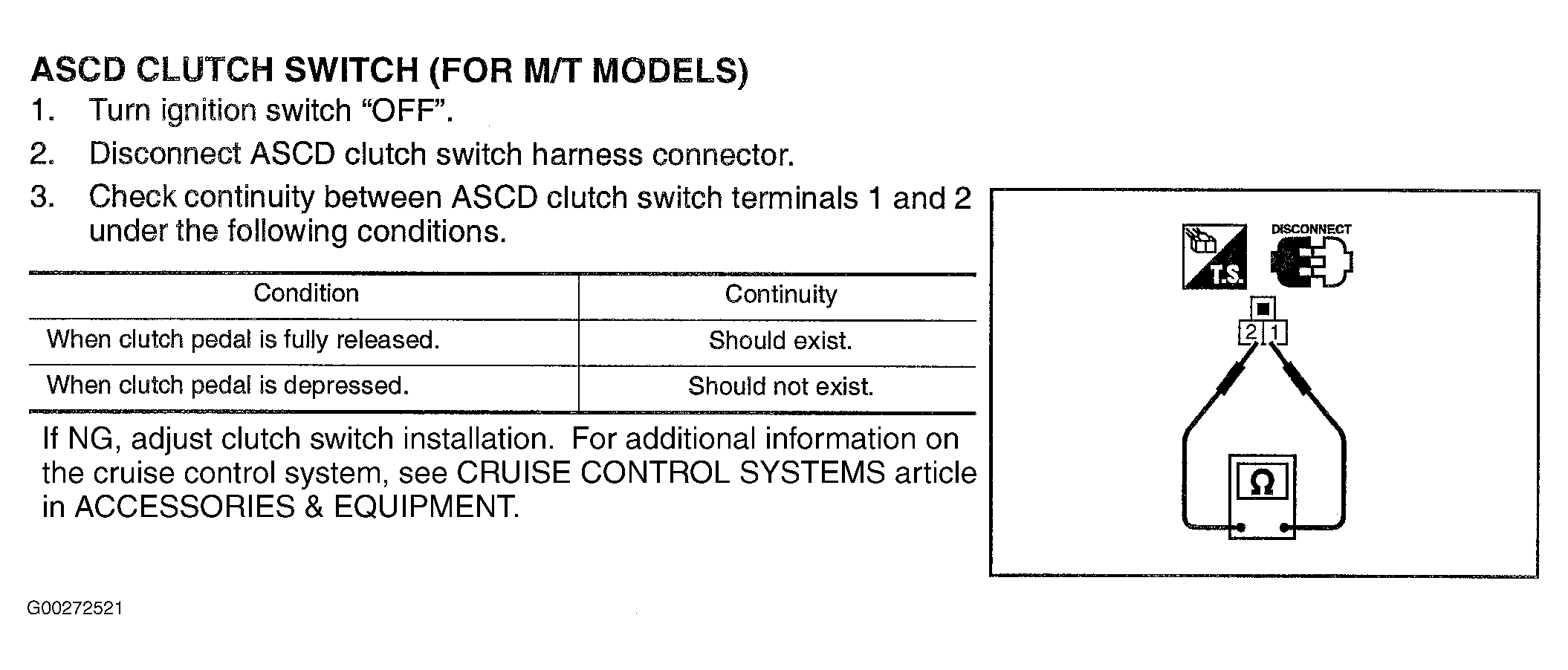

Fig 2: DTC P1572 Component Inspection (ASCD Clutch Switch - For M/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

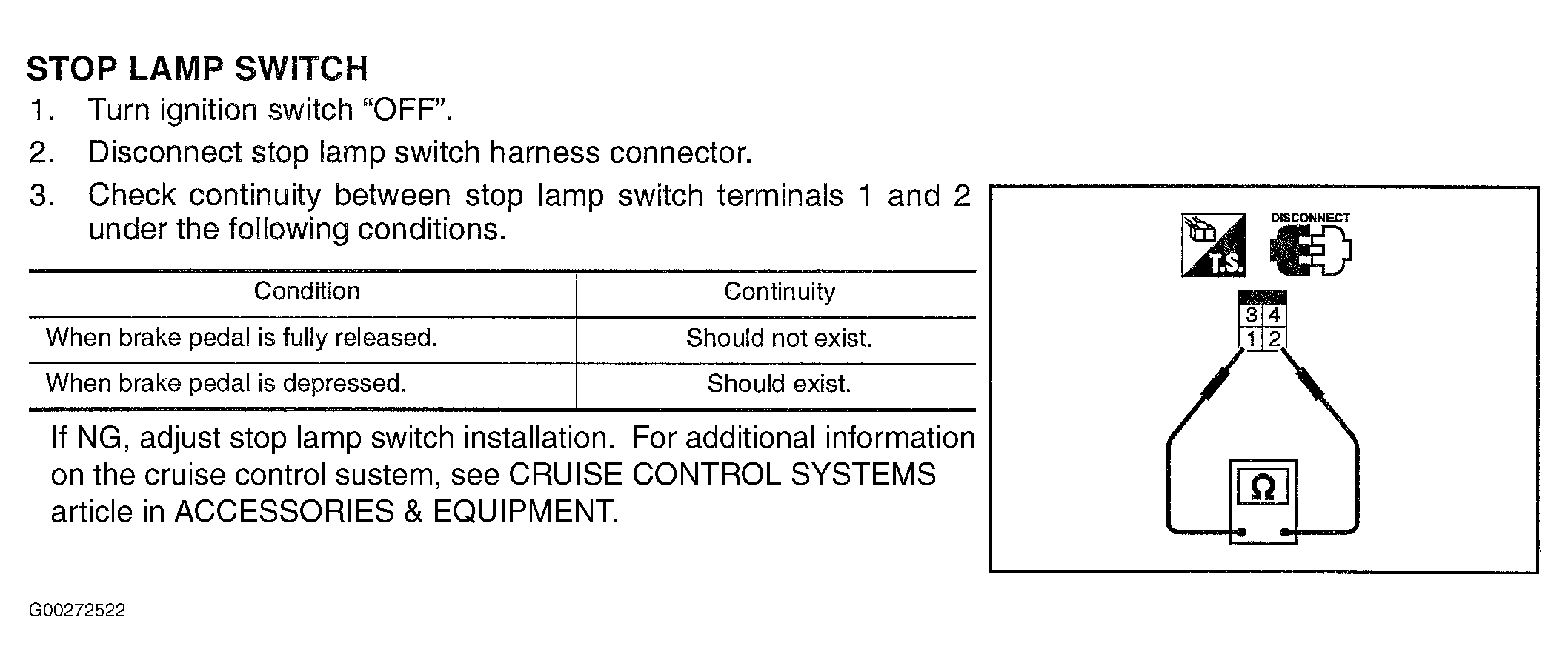

Fig 3: DTC P1572 Component Inspection (Stop Lamp Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.
