Component Testing

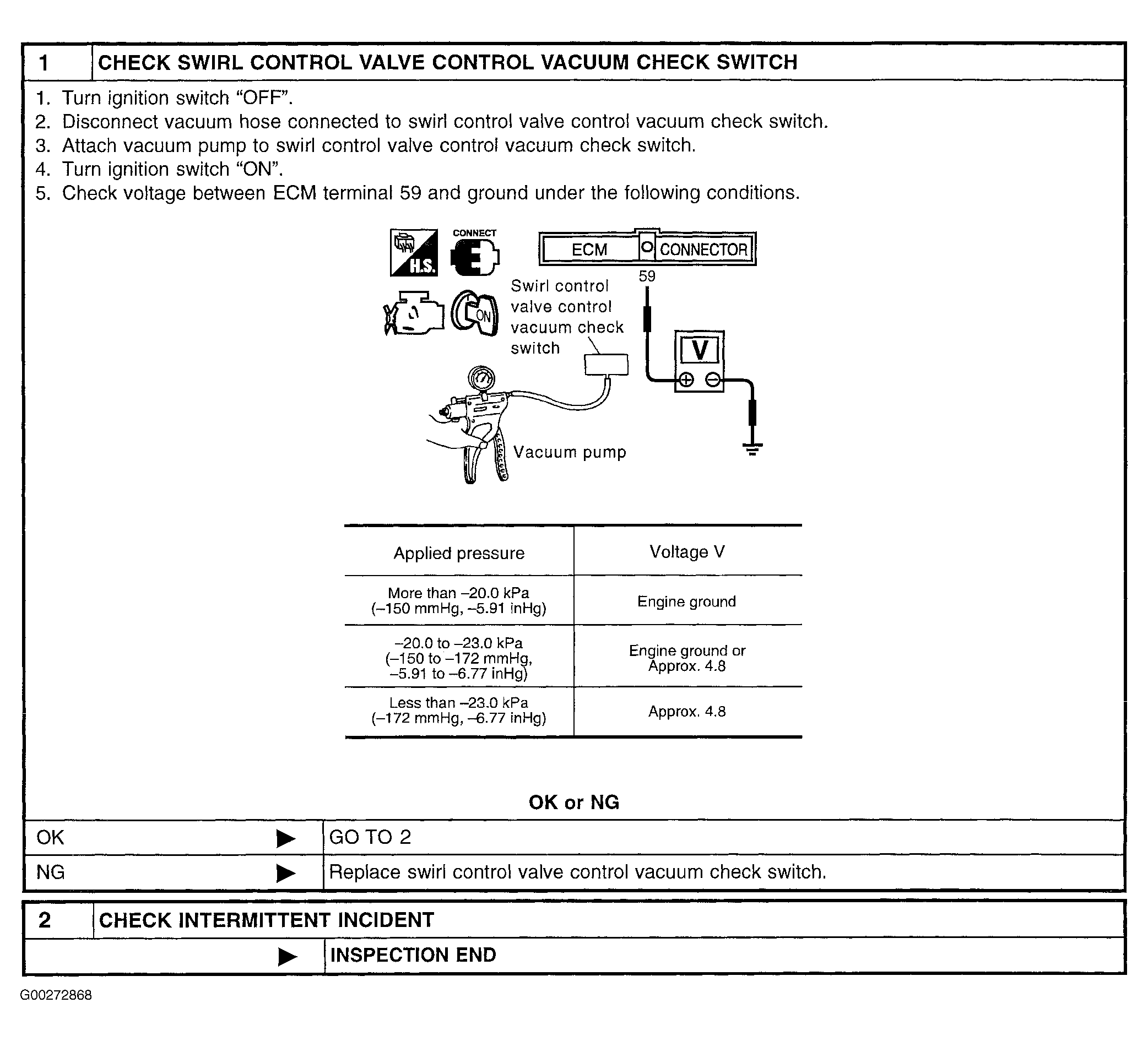

Fig 1: Testing Swirl Control Valve Control Vacuum Check Switch (Pathfinder)
G00272868Courtesy of NISSAN MOTOR CO., U.S.A.

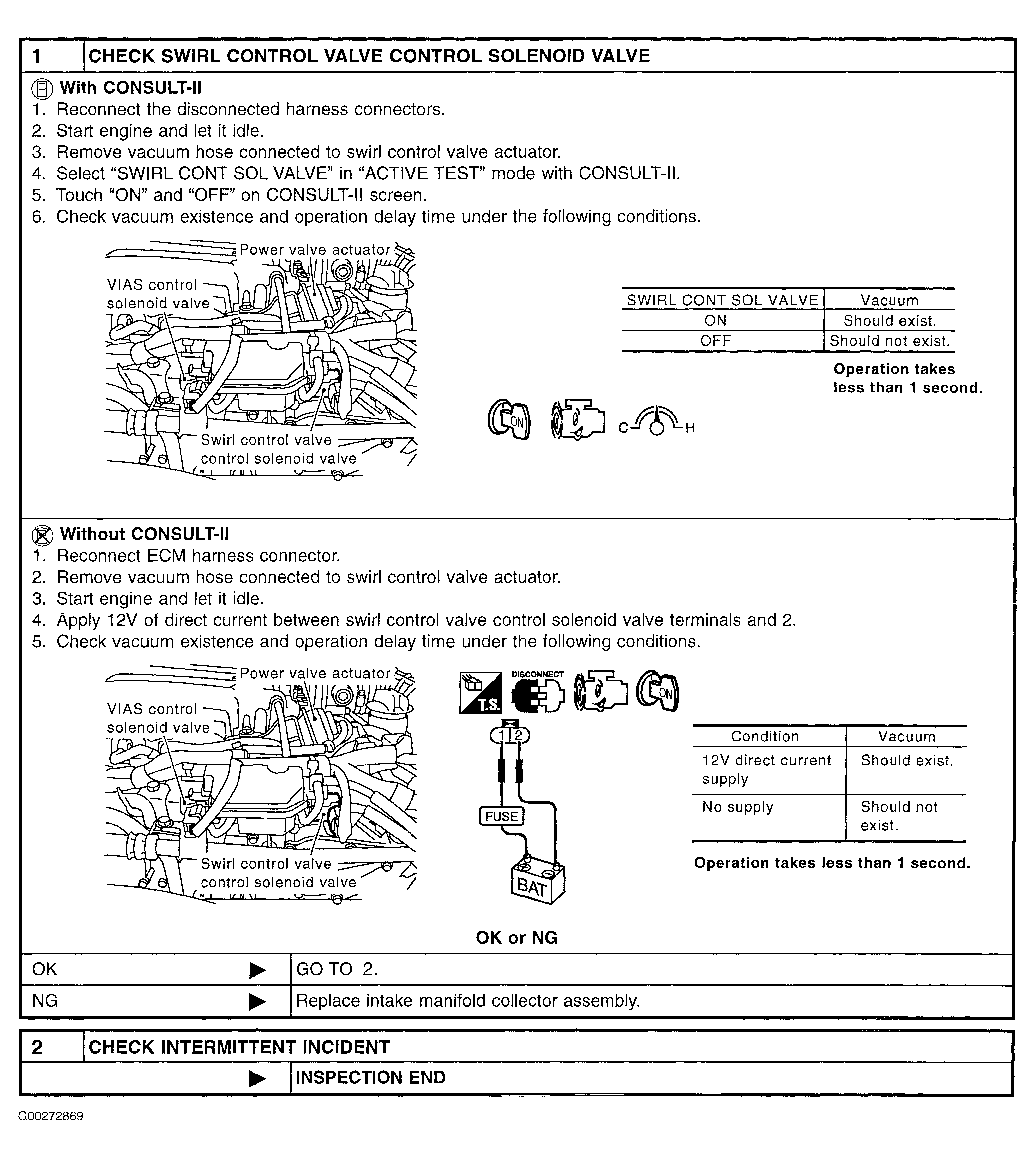

Fig 2: Testing Swirl Control Valve Control Solenoid Valve (Pathfinder)
G00272869Courtesy of NISSAN MOTOR CO., U.S.A.

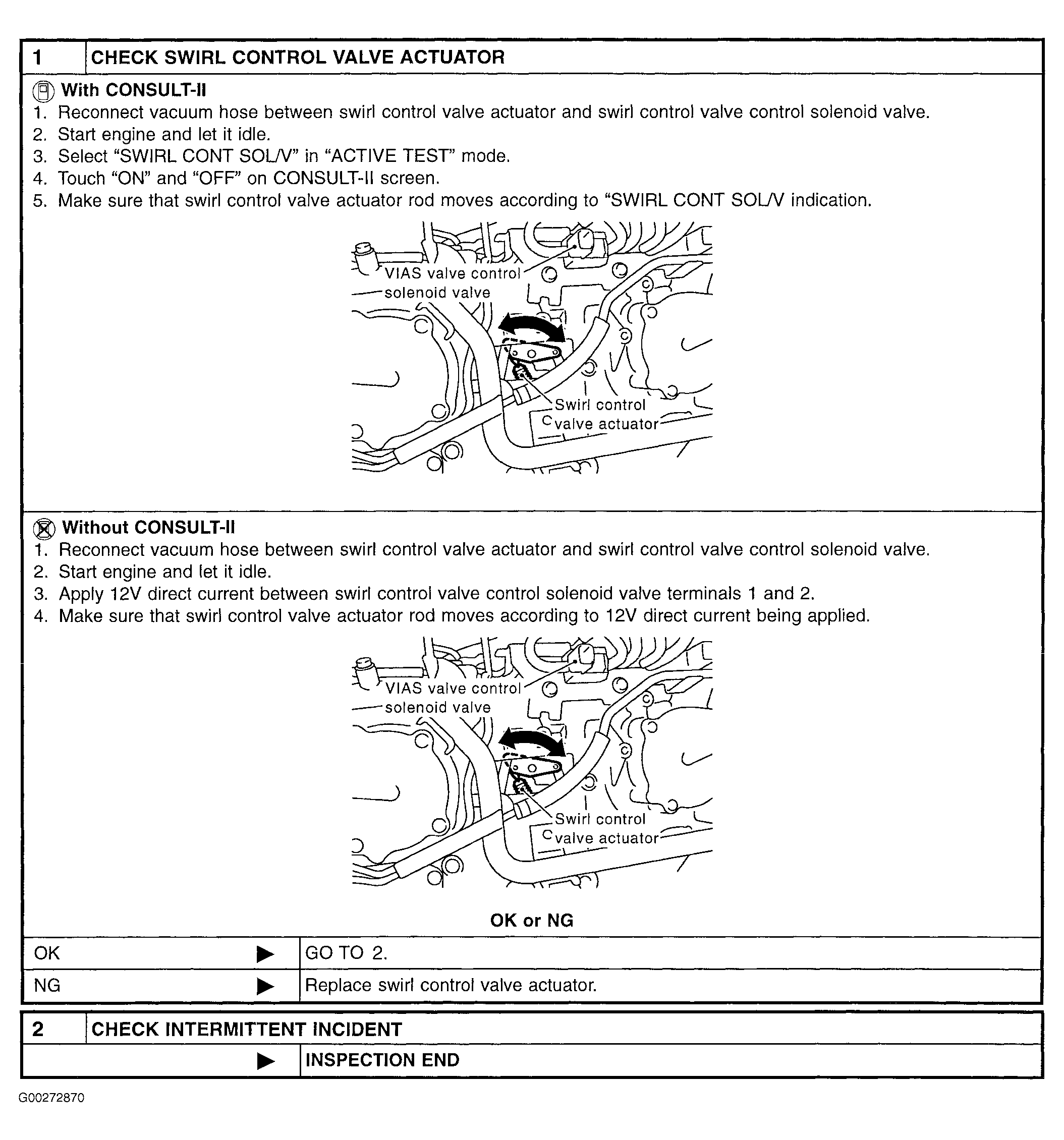

Fig 3: Testing Swirl Control Valve Actuator (Pathfinder)
G00272870Courtesy of NISSAN MOTOR CO., U.S.A.
