Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Lock the CD changer unit mechanism (models with CD changer). Refer to LOCKING CD CHANGER UNIT MECHANISM .
Disconnect both terminals from battery and wait three minutes.
Disconnect air bag module connectors in advance.
Be careful not to scratch pad and other parts.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

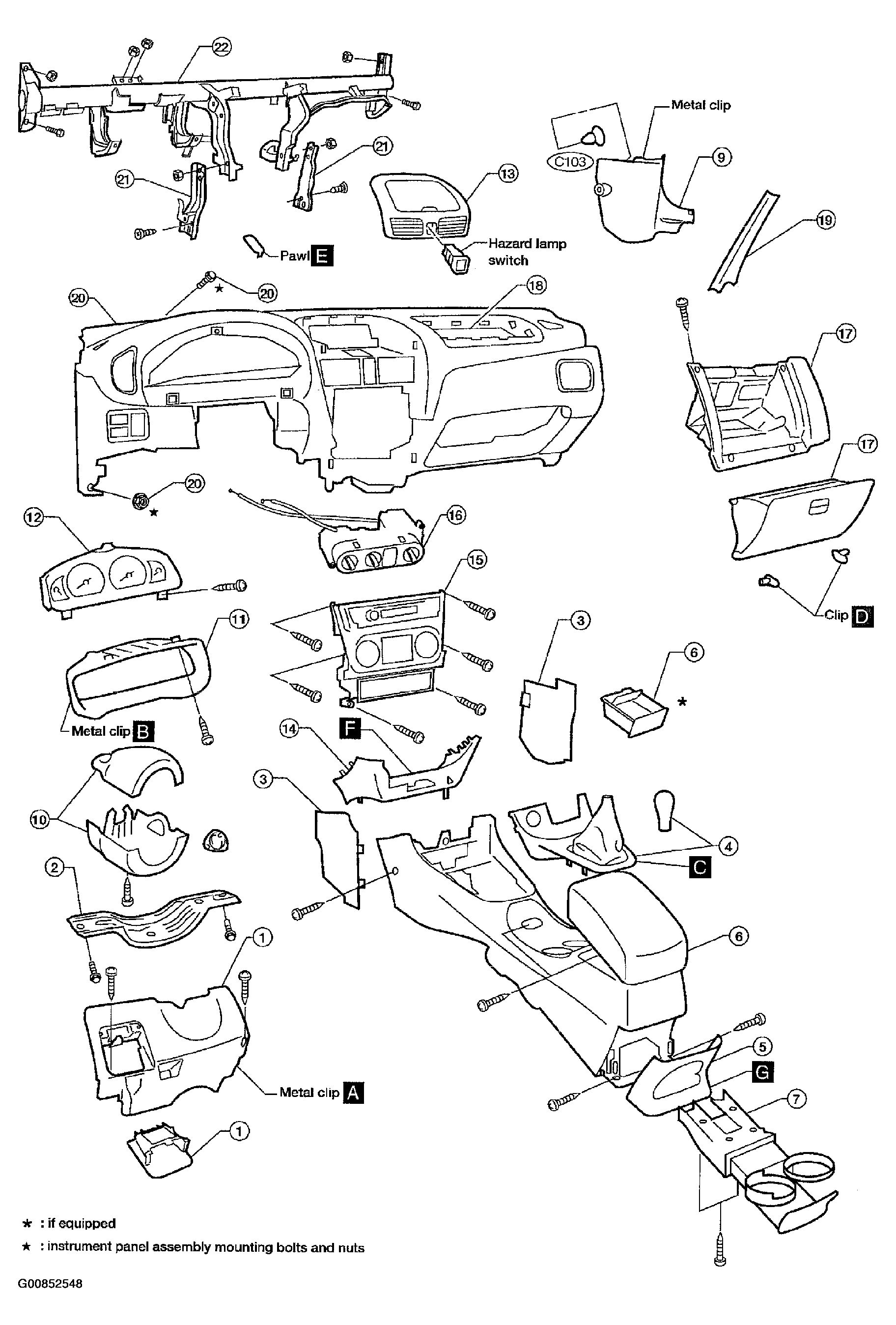

Fig 1: Identifying Instrument Panel Flow Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

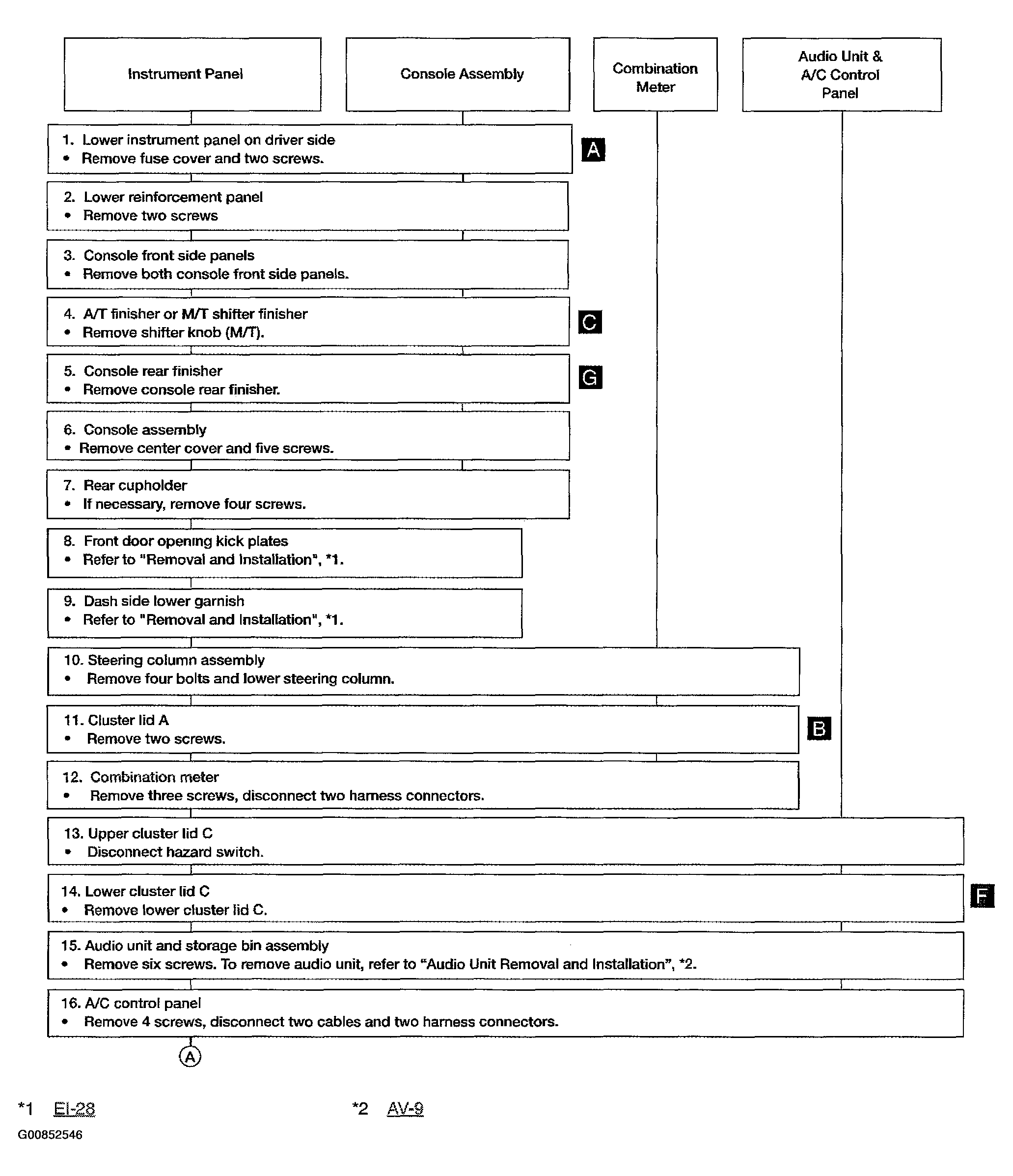

Fig 2: Identifying Instrument Panel Flow Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

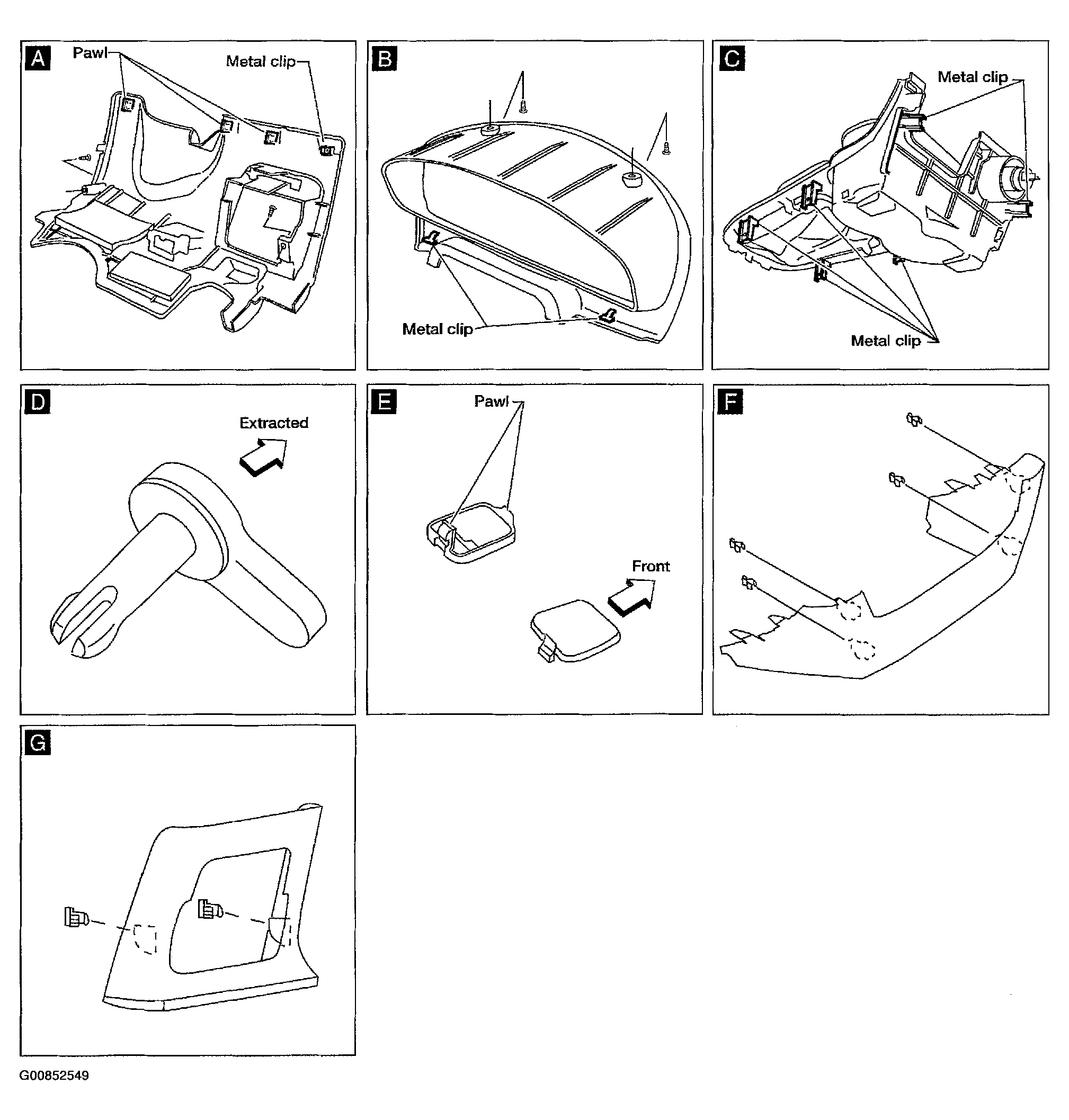

Fig 3: Identifying Instrument Panel Flow Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

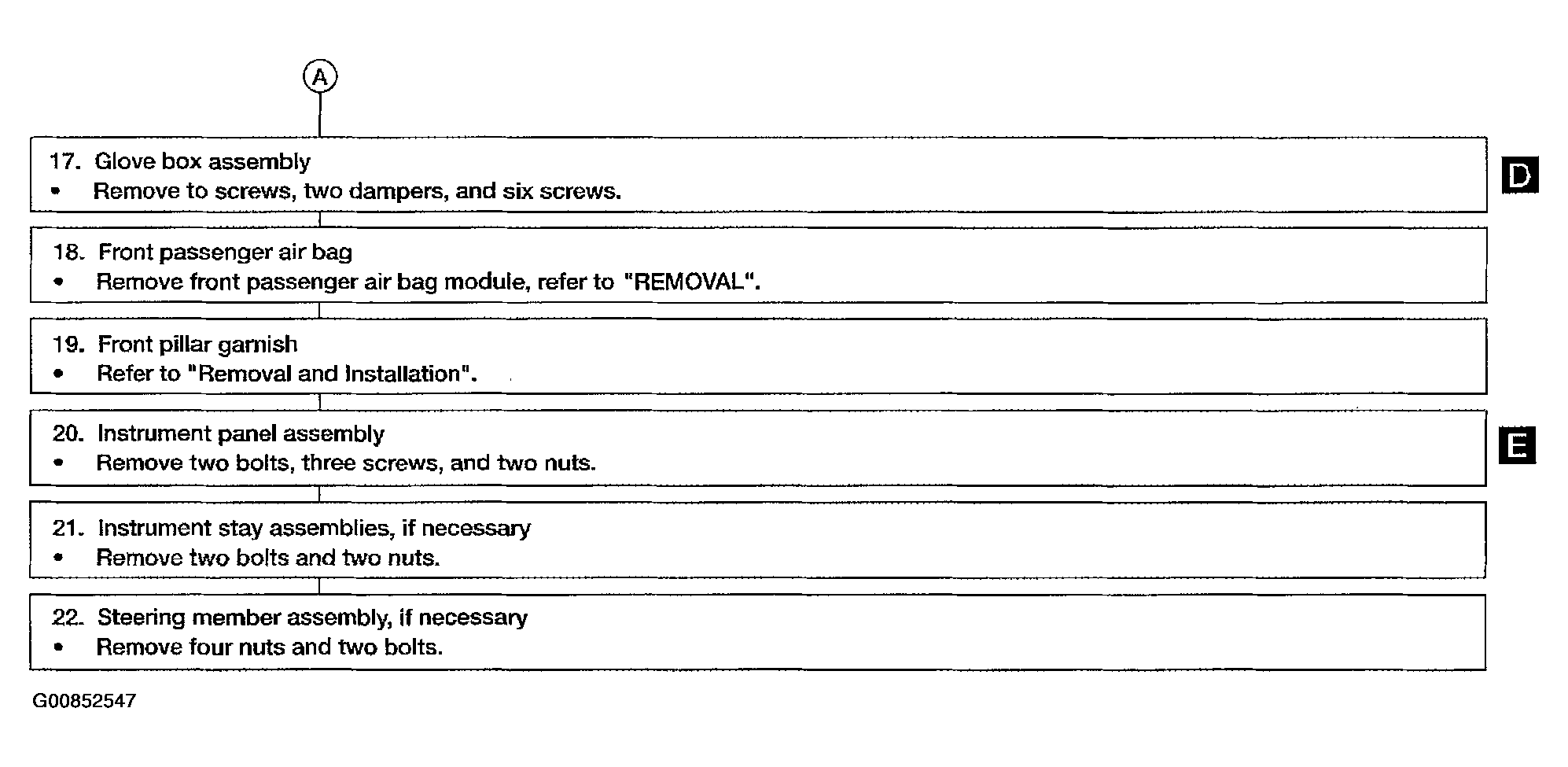

Fig 4: Identifying Instrument Panel Flow Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
