Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Removal of front side air bag module should only be done to allow deployment of front side air bag module prior to disposal of seatback assembly.

Only complete seatback assemblies can be replaced. Refer to "REMOVAL OF SEATBACK ASSEMBLY "

CAUTION:
  • Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
  • When servicing the SRS, do not work from directly in front of air bag module.
  1. Remove the front seat. Refer to "REMOVAL "
  2. Remove the seatback trim and pad. Refer to "SEAT-BACK TRIM AND PAD ".
  3. Remove the seatback rear finisher and remove the retainers securing the seat cushion trim. Refer to "SEAT CUSHION TRIM AND PAD ".
  4. Remove air bag module harness clips.
  5. Remove the fasteners from the front side air bag module and remove the front side air bag module.
    Fig 1: Identifying Front Side Air Bag Module & Fasteners
    G02447956Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Identifying Side Air Bag Module
    G02447957Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • When using a clip removal tool to remove the seatback board, take care not to damage the harness for front side air bag module.
    • When servicing the SRS, do not work from directly in front of air bag module.
    • Always place the front side air bag module with the mounting stud side facing down
    • Do not insert any foreign objects (screwdrivers, etc.) into air bag module or harness connectors.
    • Do not disassemble air bag module
    • Do not expose front seatback assembly (side air bag module) to temperatures exceeding 90°C (194°F).
    • Replace front seatback assembly (side air bag module) if it has been dropped or sustained an impact.

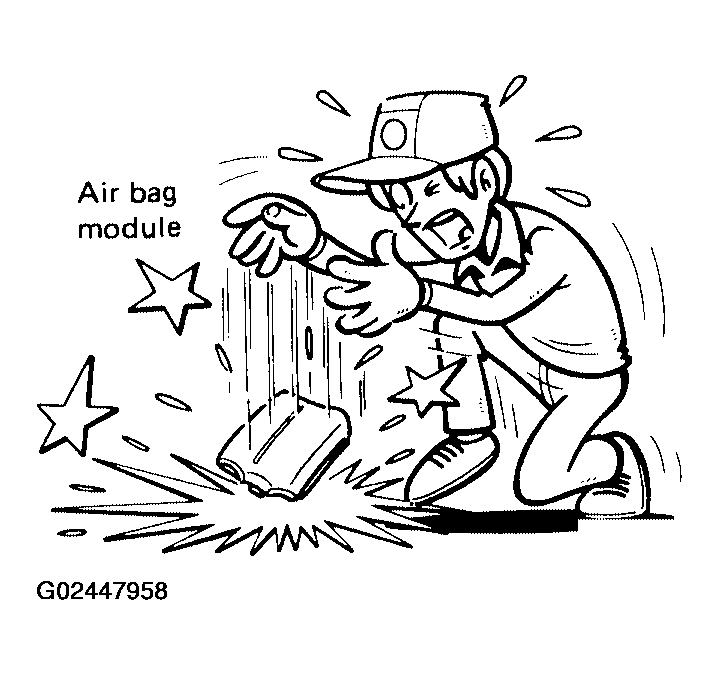

      • Fig 3: Precaution For Handling Air Bag Module
      G02447958Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not allow oil, grease or water to come in contact with the air bag module.
    • If front side air bag module is deployed, the front seatback assembly must be replaced.
