Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustration for hydraulic line removal and installation.

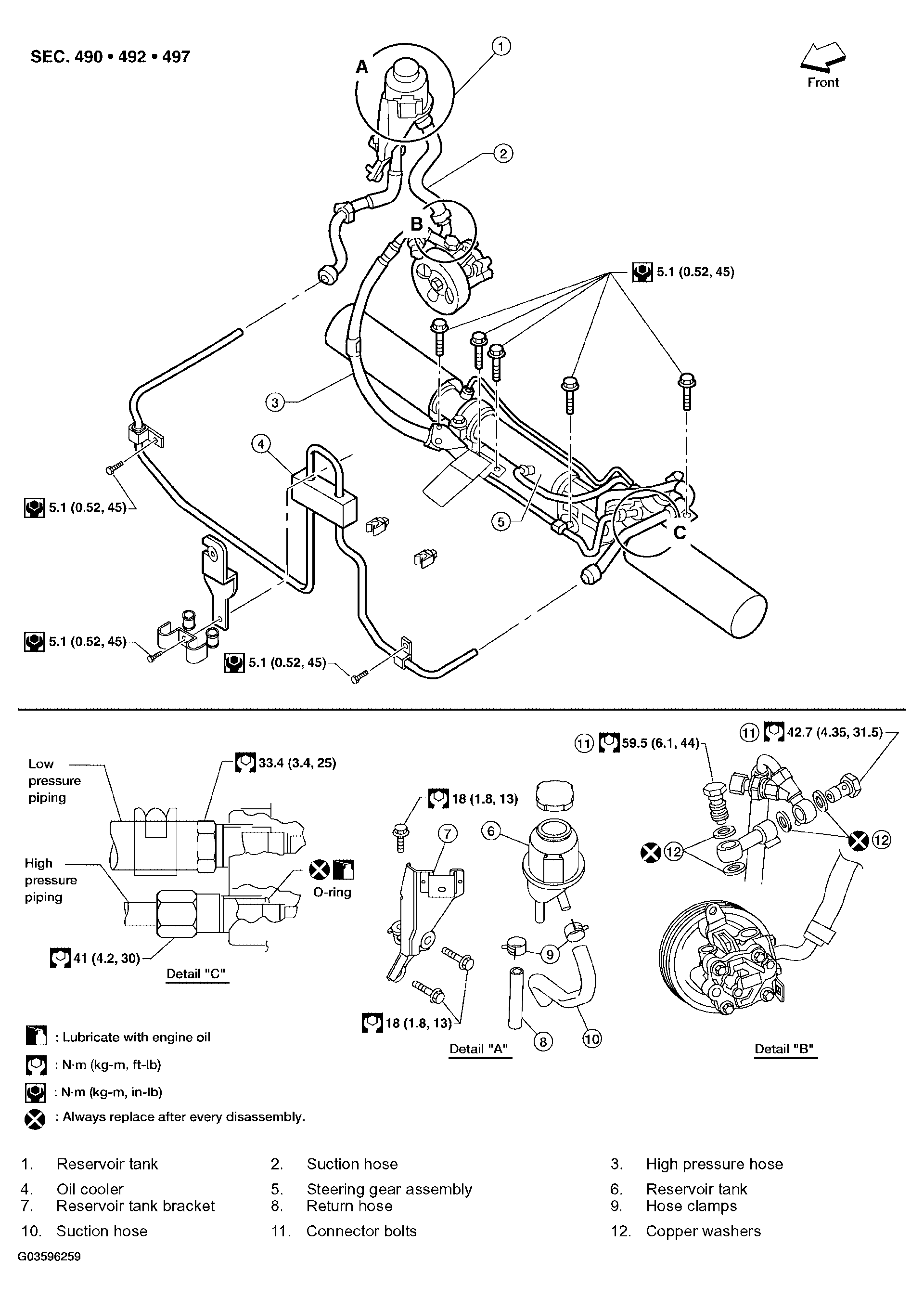

Fig 1: Removing Hydraulic Lines

Courtesy of NISSAN MOTOR CO., U.S.A.
