Instrument Panel: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

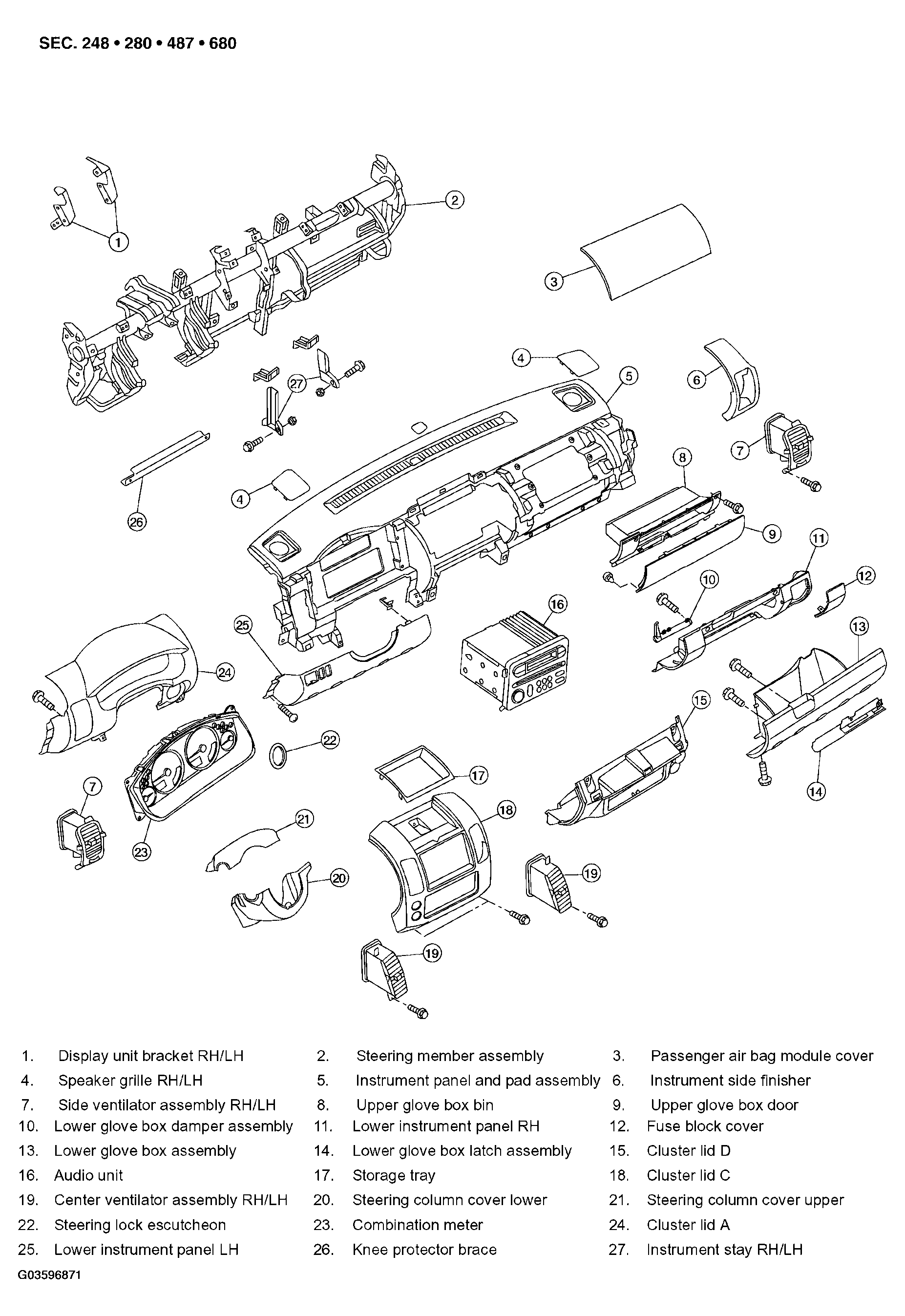

Fig 1: Exploded View Of Instrument Panel Assembly
G03596871Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the center console. Refer to "CENTER CONSOLE ".
  2. Remove the steering column. Refer to "STEERING COLUMN ".
  3. Remove the combination meter. Refer to "COMBINATION METER ".
  4. Release then disconnect the optical sensor harness.
  5. Remove the LH and RH windshield garnish.
  6. Remove instrument panel.
    • Disconnect harnesses to instrument panel speakers LH and RH and remove speakers.
    • Disconnect all remaining harnesses.
    • Remove the passenger air bag module. Refer to "FRONT PASSENGER AIR BAG MODULE ".
