Fitting Adjustment: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

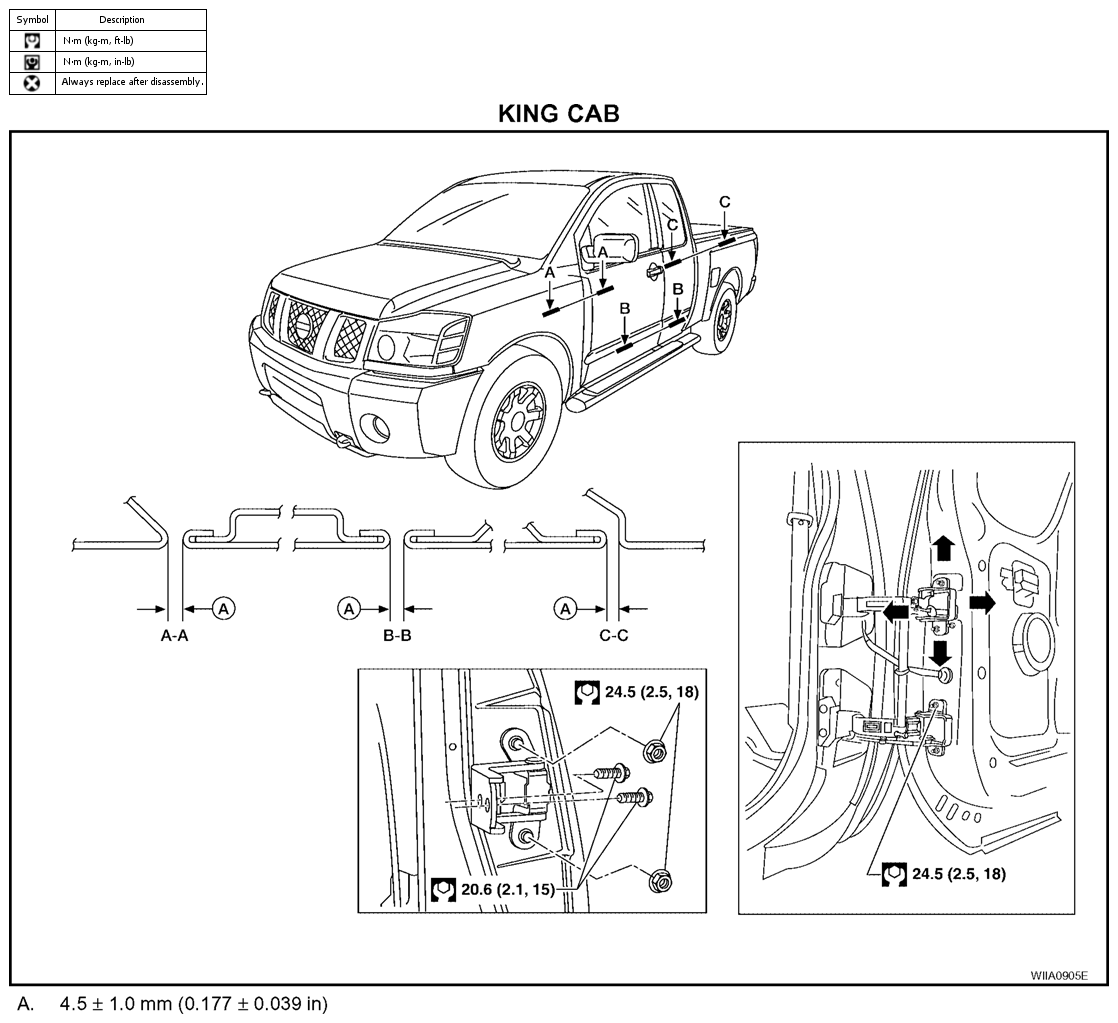

Fig 1: Adjusting Door Fitting With Torque Specifications - King Cab
G04187592Courtesy of NISSAN MOTOR CO., U.S.A.

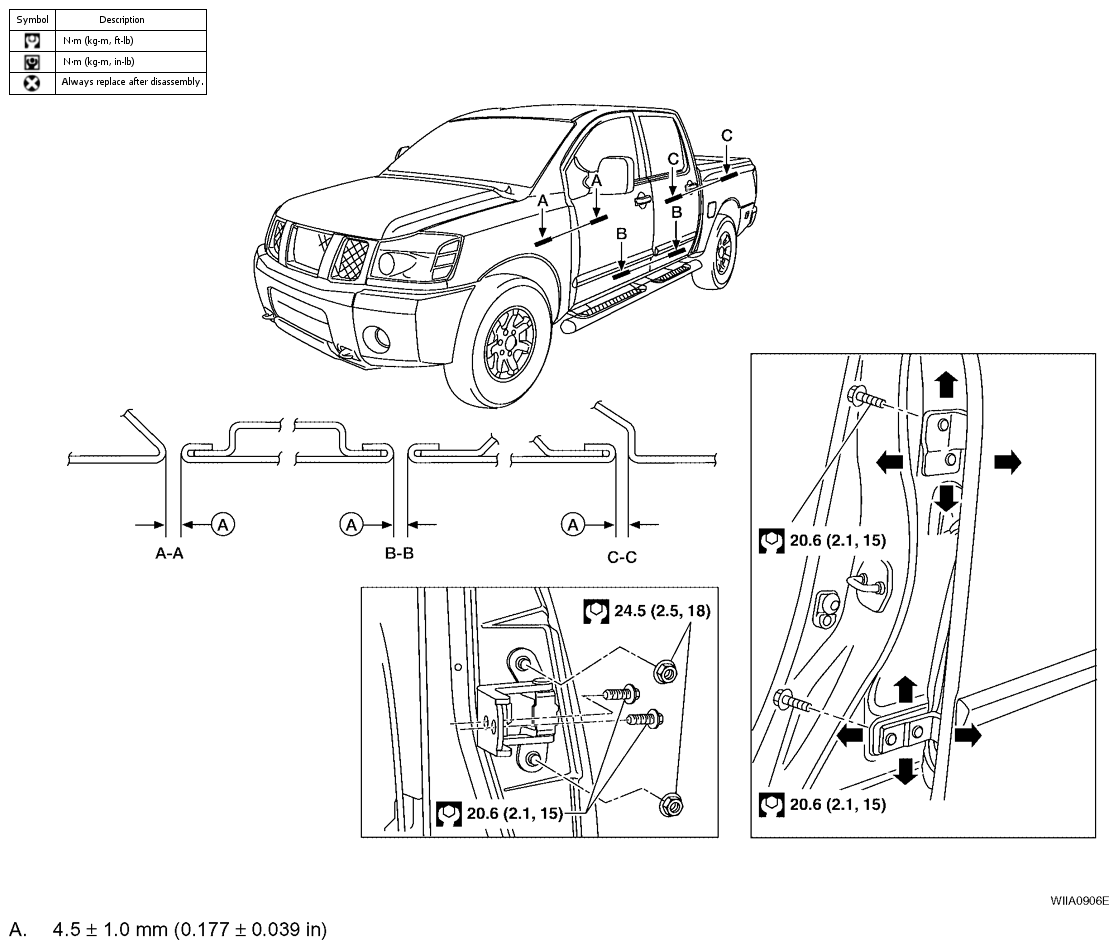

Fig 2: Adjusting Door Fitting With Torque Specifications - Crew Cab
G04187593Courtesy of NISSAN MOTOR CO., U.S.A.
