Oil Pump: Assembly

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

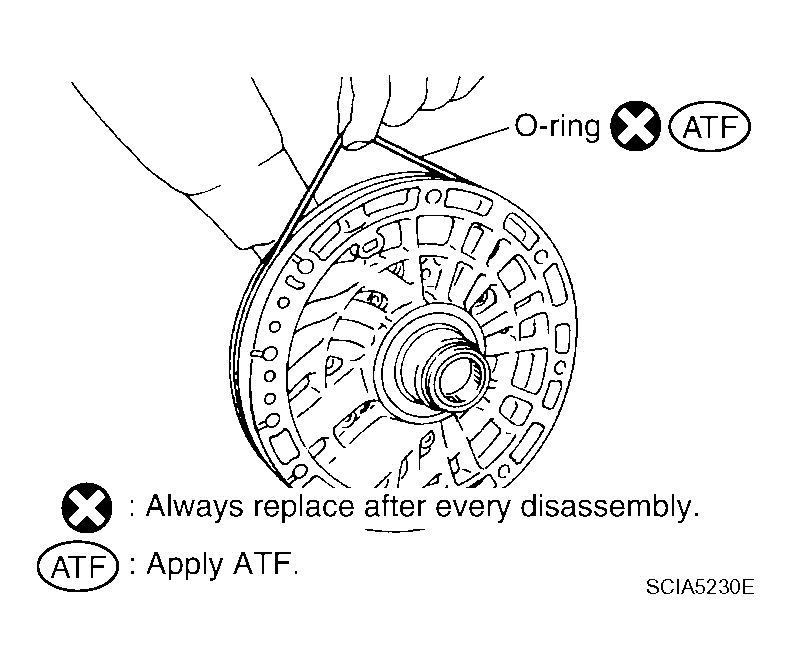

Fig 1: Identifying O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Fig 2: Identifying O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing oil seal to the oil pump housing until it is flush using Tool.
Tool number : ST33400001 (J-26082)
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
After temporarily tightening the bolts for the oil pump housing to the oil pump cover, tighten them in the sequence shown.
Oil pump housing bolts : 9.0 N.m (0.92 kg-m, 80 in-lb.)

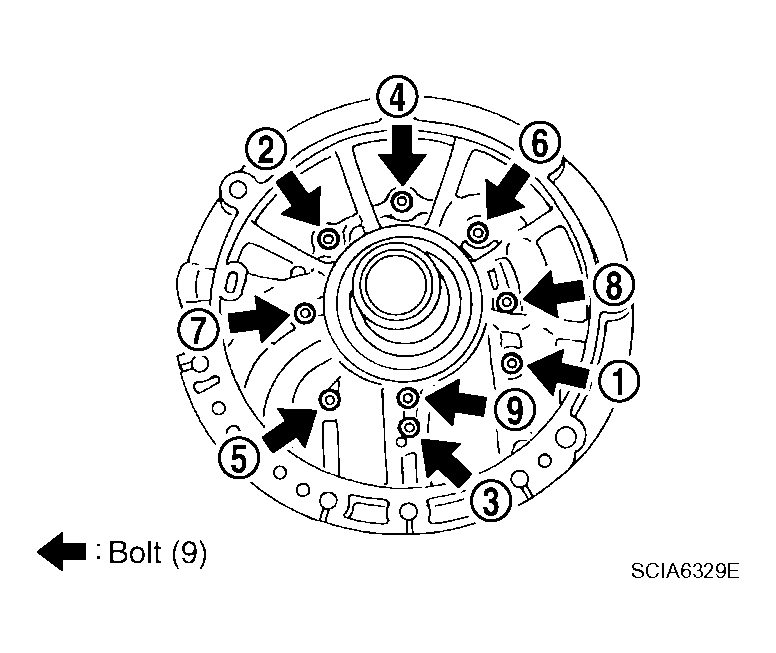

Fig 4: Identifying Tightening Sequence Of Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
