Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

When installing drive shaft onto front final drive, use Tool to prevent damage to the oil seal while inserting drive shaft. Slide drive shaft sliding joint and tap with a hammer to install securely.
Tool number : KV38105500 (J-33904)

CAUTION: Never reuse the differential side oil seal.
Tighten wheel nuts to specification. Refer to "ROTATION "

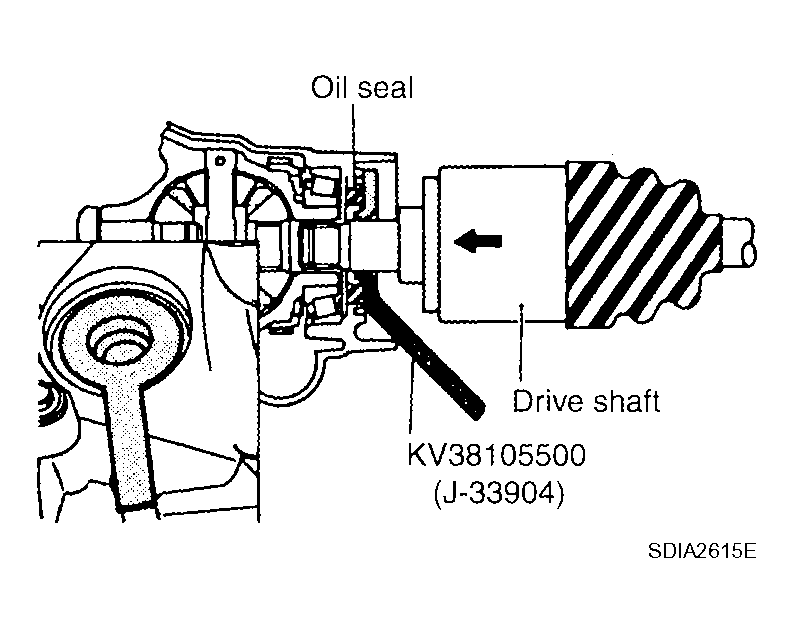

Fig 1: Installing Drive Shaft Onto Front Final Drive
Courtesy of NISSAN MOTOR CO., U.S.A.
