Display Control Unit: Removal
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cluster lid C. Refer to "CLUSTER LID C - WITHOUT NAVIGATION SYSTEM "

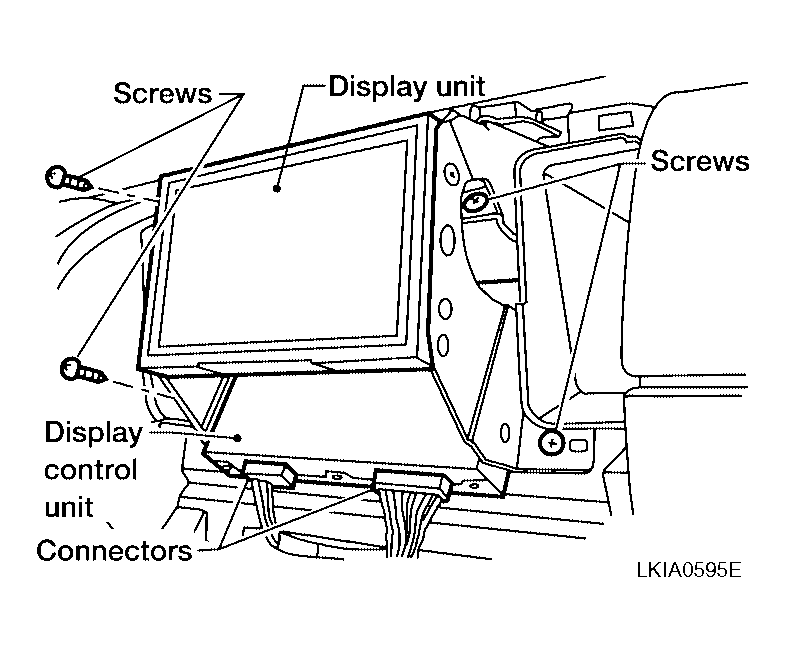

- Remove the display control unit assembly screws.
- Disconnect the connectors and remove assembly from instrument panel.
- Remove the screws, then remove the display control unit from the assembly brackets.
