Wiring Diagram - COMM

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

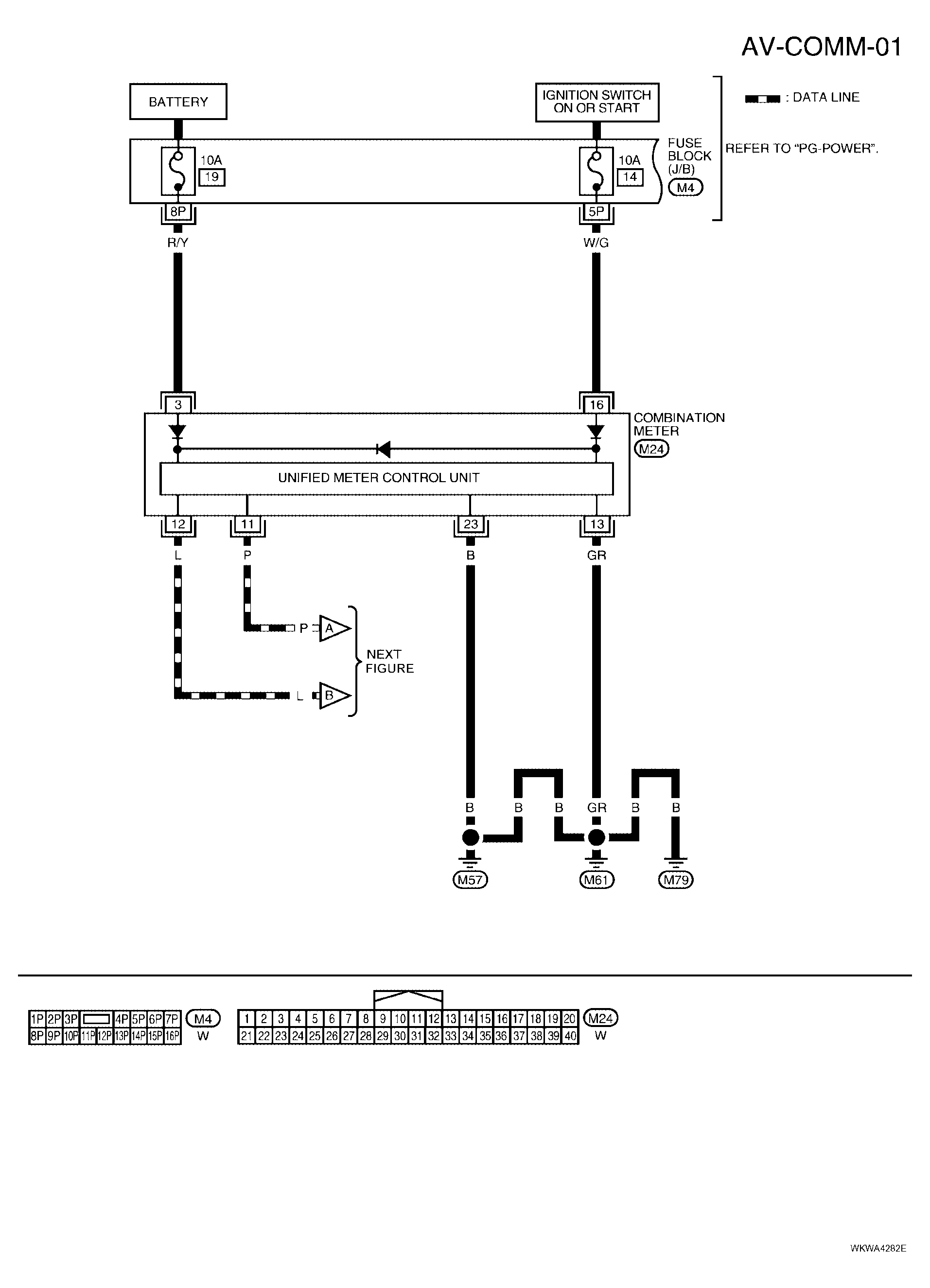

Fig 1: Wiring Diagram - AV-COMM-01 - (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

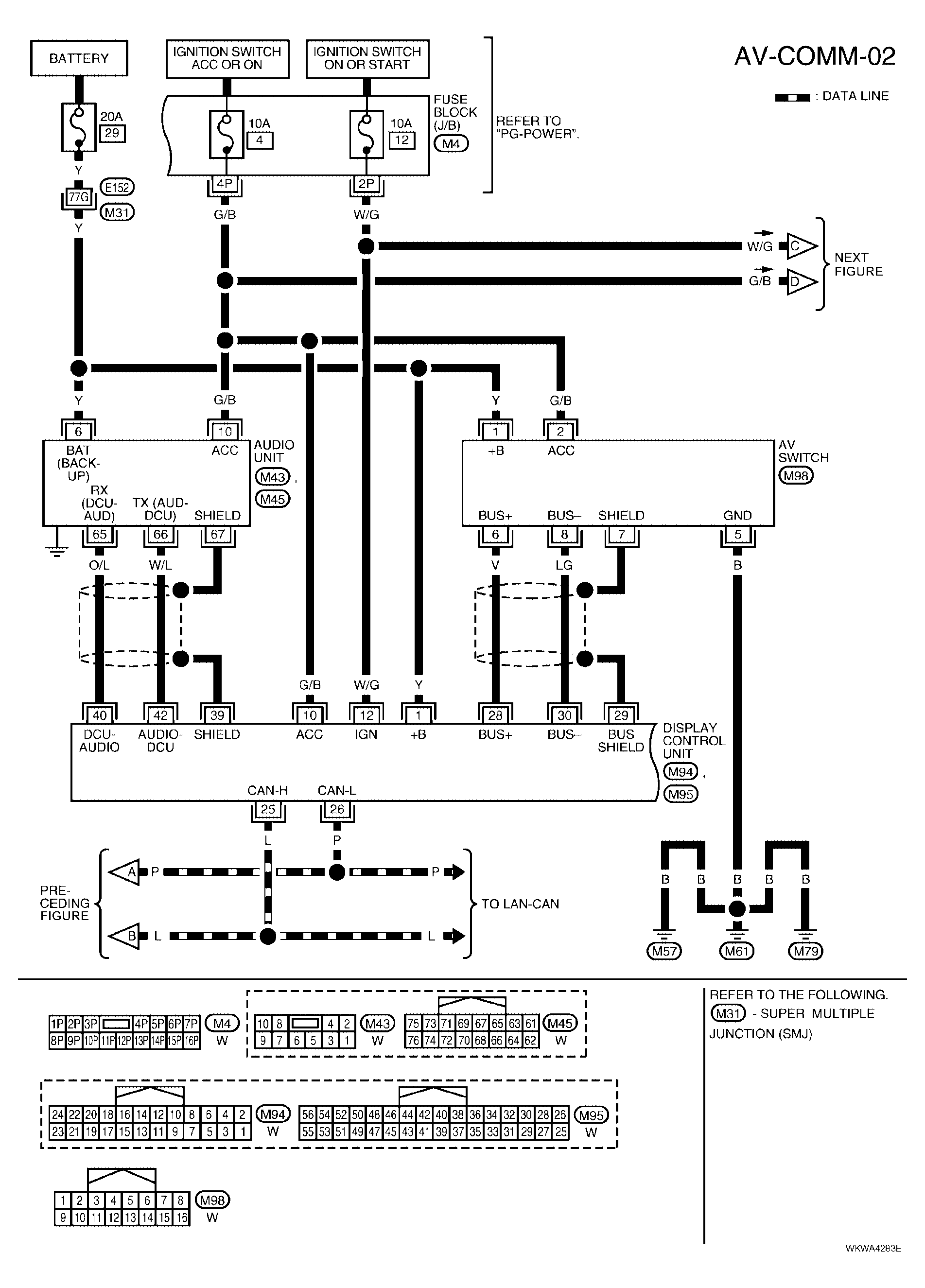

Fig 2: Wiring Diagram - AV-COMM-02 - (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

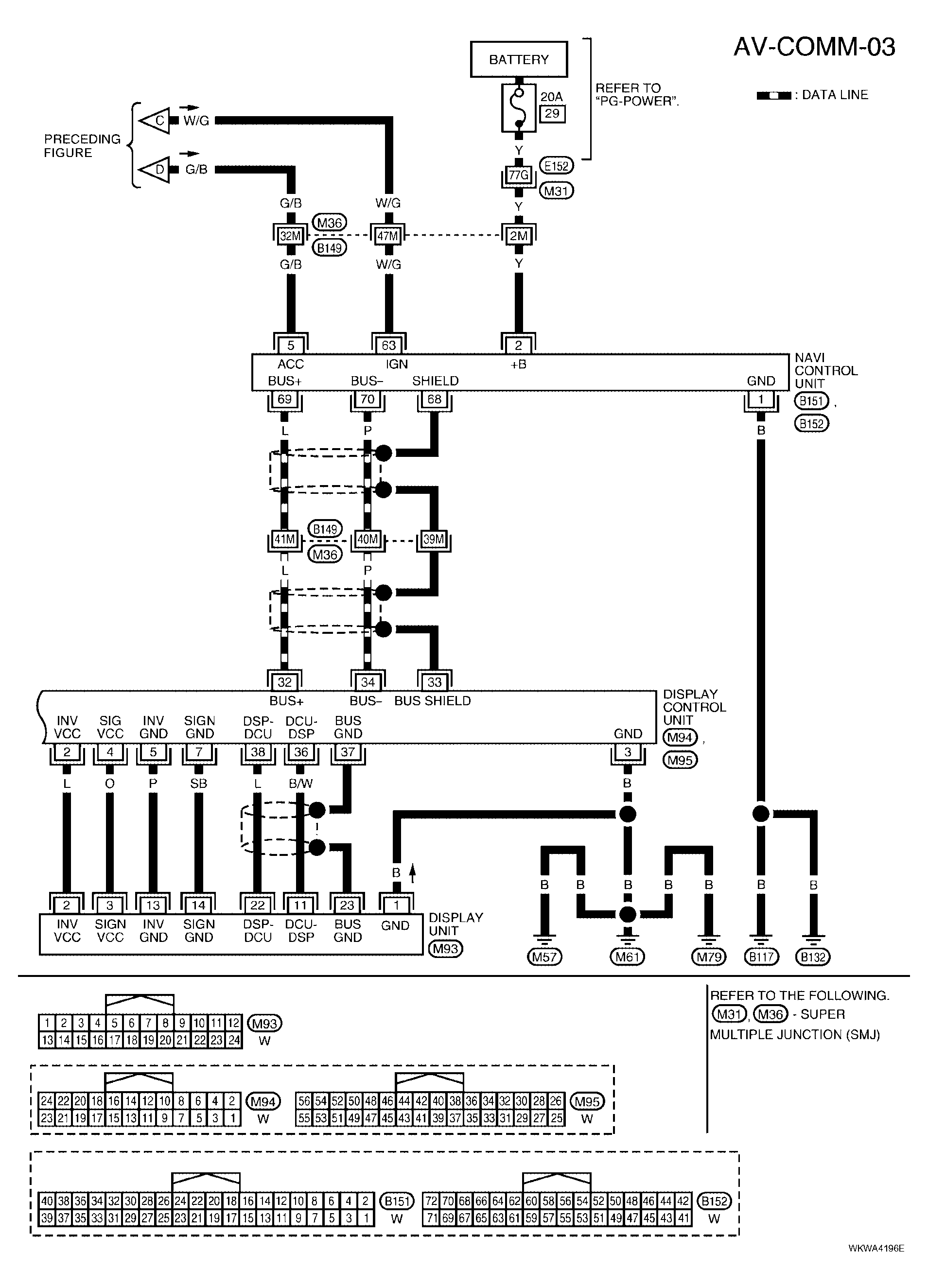

Fig 3: Wiring Diagram - AV-COMM-03 - (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
