Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument driver lower panel. Refer to REMOVAL AND INSTALLATION .
Disconnect AWD control unit connector.
Remove the AWD control unit.

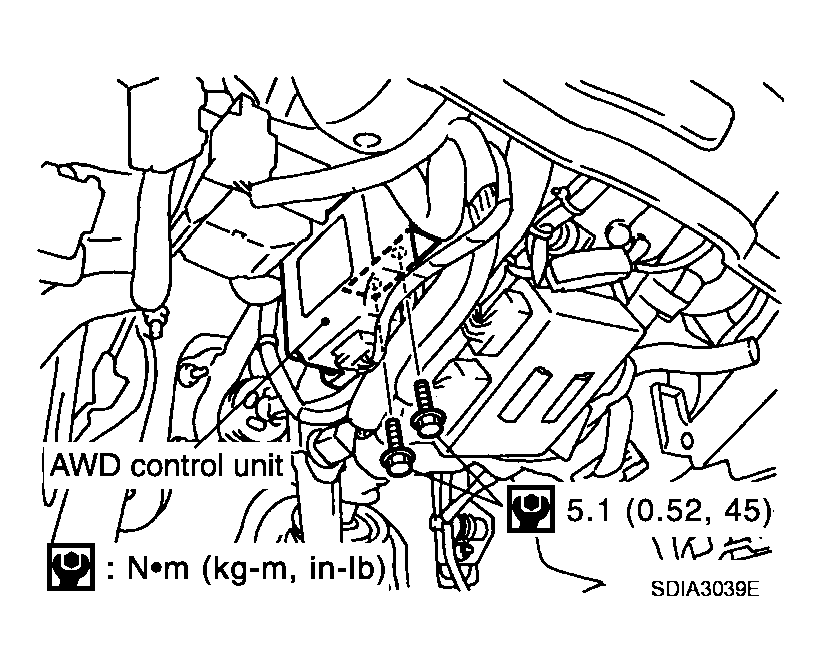

Fig 1: AWD Control Unit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
