4 A/T Models
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

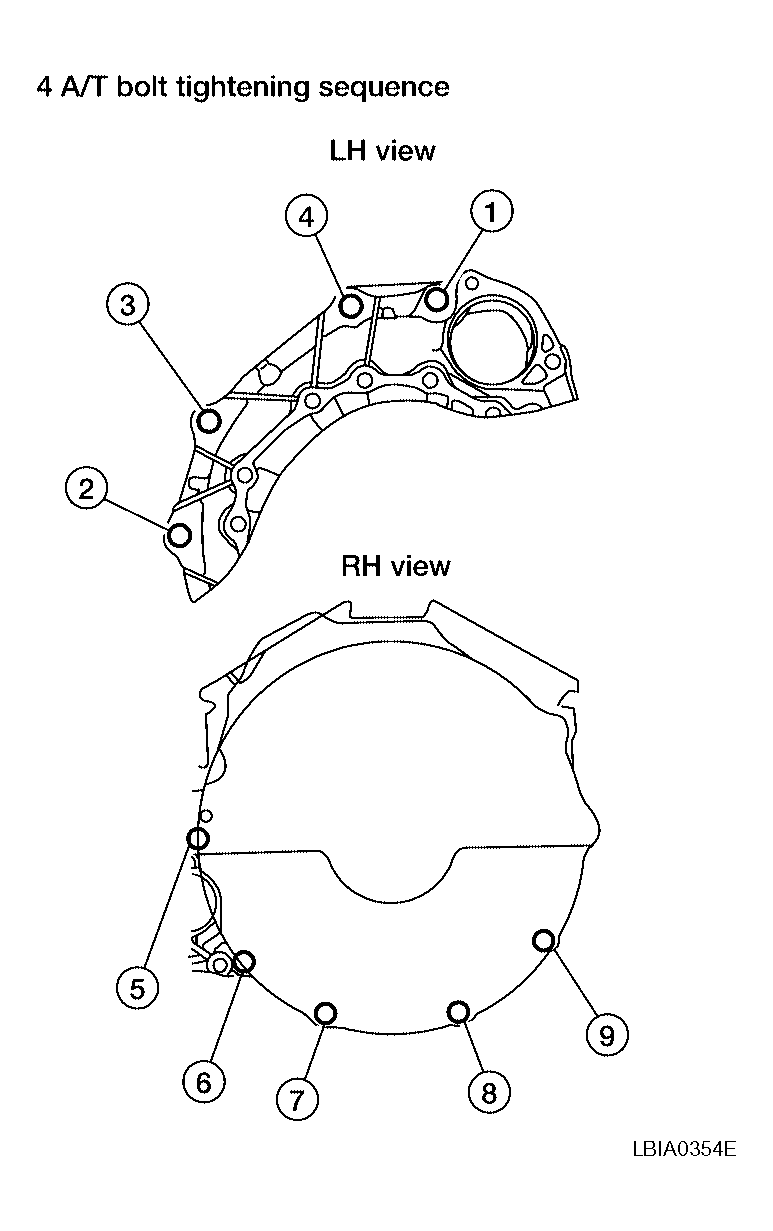

When installing the transaxle to the engine, use the specified tightening torque in the order as shown.
BOLT REFERENCE
| Bolt No. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| Tightening torque N.m (kg-m, ft-lb) |
74.5 (7.6, 55) |
41.5 (4.2, 31) |
Courtesy of NISSAN MOTOR CO., U.S.A.
