Display Diagnosis

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

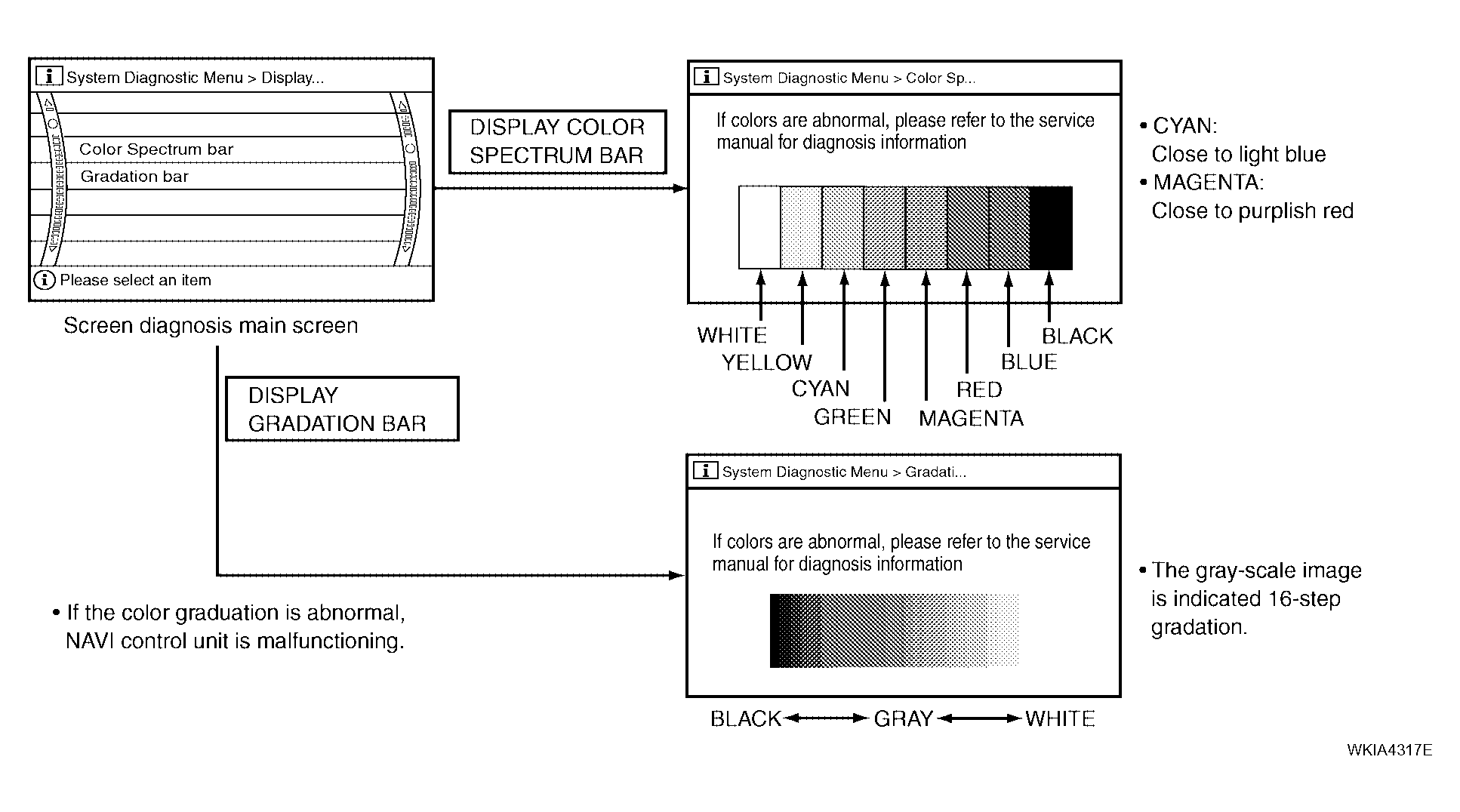

Fig 1: Displaying Diagnosis Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish

G (green) signal error: Screen looks reddish

B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to , "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK BLUISH) ", , "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK REDDISH) " and , "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK YELLOWISH) ".

Fig 1: Displaying Diagnosis Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish

G (green) signal error: Screen looks reddish

B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to , "COLOR OF RGB IMAGE IS NOT PROPER (ONLY NAVI SCREEN LOOKS BLUISH) ", , "COLOR OF RGB IMAGE IS NOT PROPER (ONLY NAVI SCREEN LOOKS REDDISH) " and , "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK YELLOWISH) ".
