Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

For a location with a positioning pin, insert it securely into hole of mating part.
For a part with a specified installation orientation, refer to component figure in refer to "REMOVAL AND INSTALLATION ".

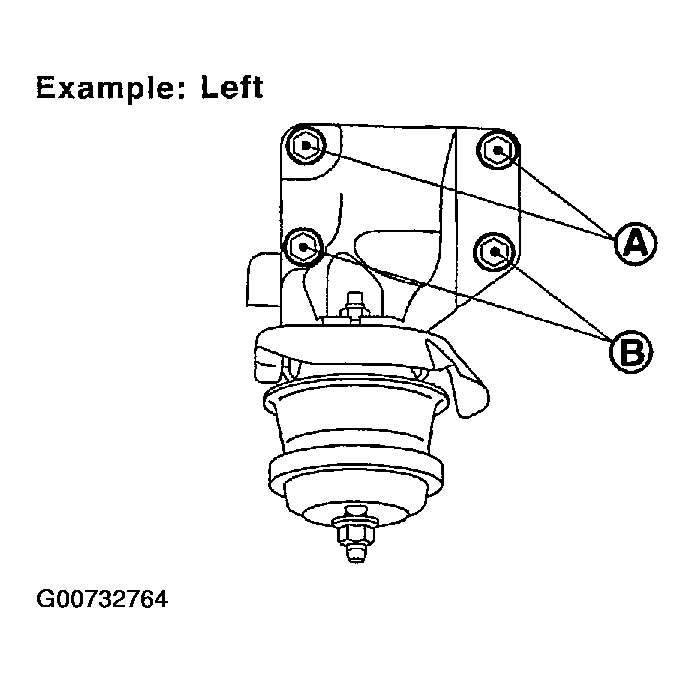

When installing engine mounting brackets (RH and LH) on cylinder block, tighten two upper bolts (shown as "A" in the figure) first. Then tighten two lower bolts (shown as "B" in the figure).

Fig 1: Inserting Pin Into Hole Of Mating Part
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten rear engine mounting member bolts in numerical order as shown in the figure.

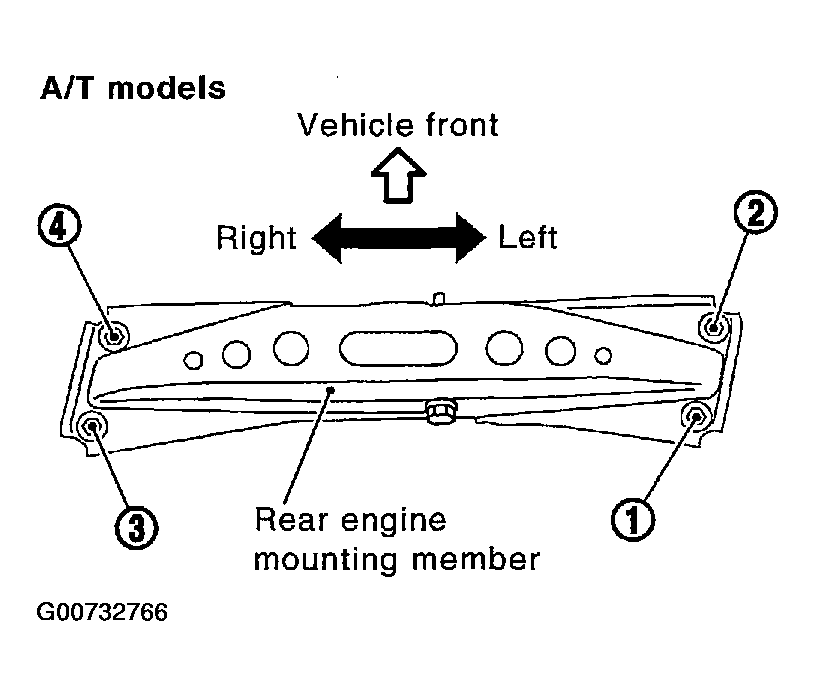

Fig 2: Tightening Rear Engine Mounting Member Bolts - A\T Models

Courtesy of NISSAN MOTOR CO., U.S.A.

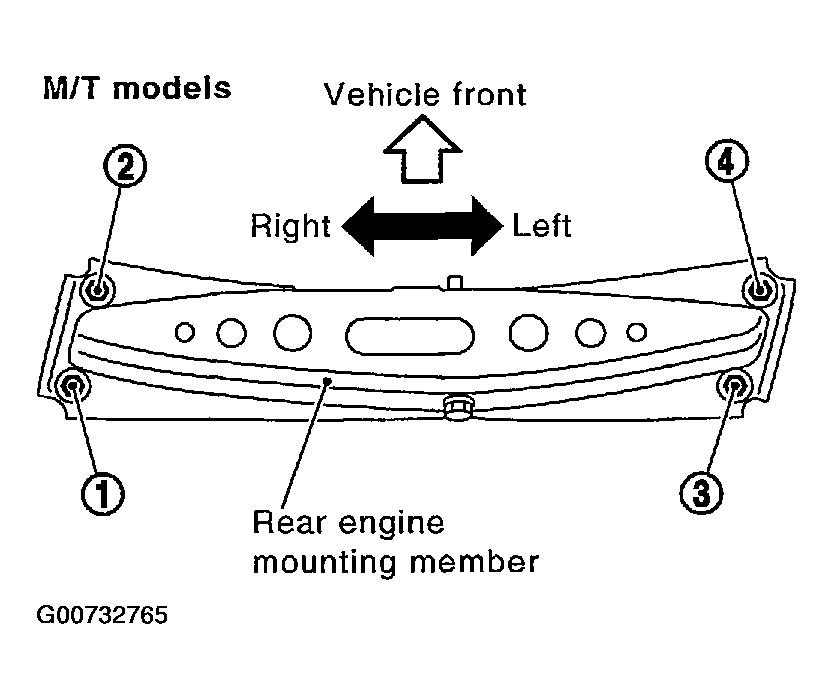

Fig 3: Tightening Rear Engine Mounting Member Bolts - M\T Models

Courtesy of NISSAN MOTOR CO., U.S.A.
