Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

For GI information, go to GENERAL INFORMATION .

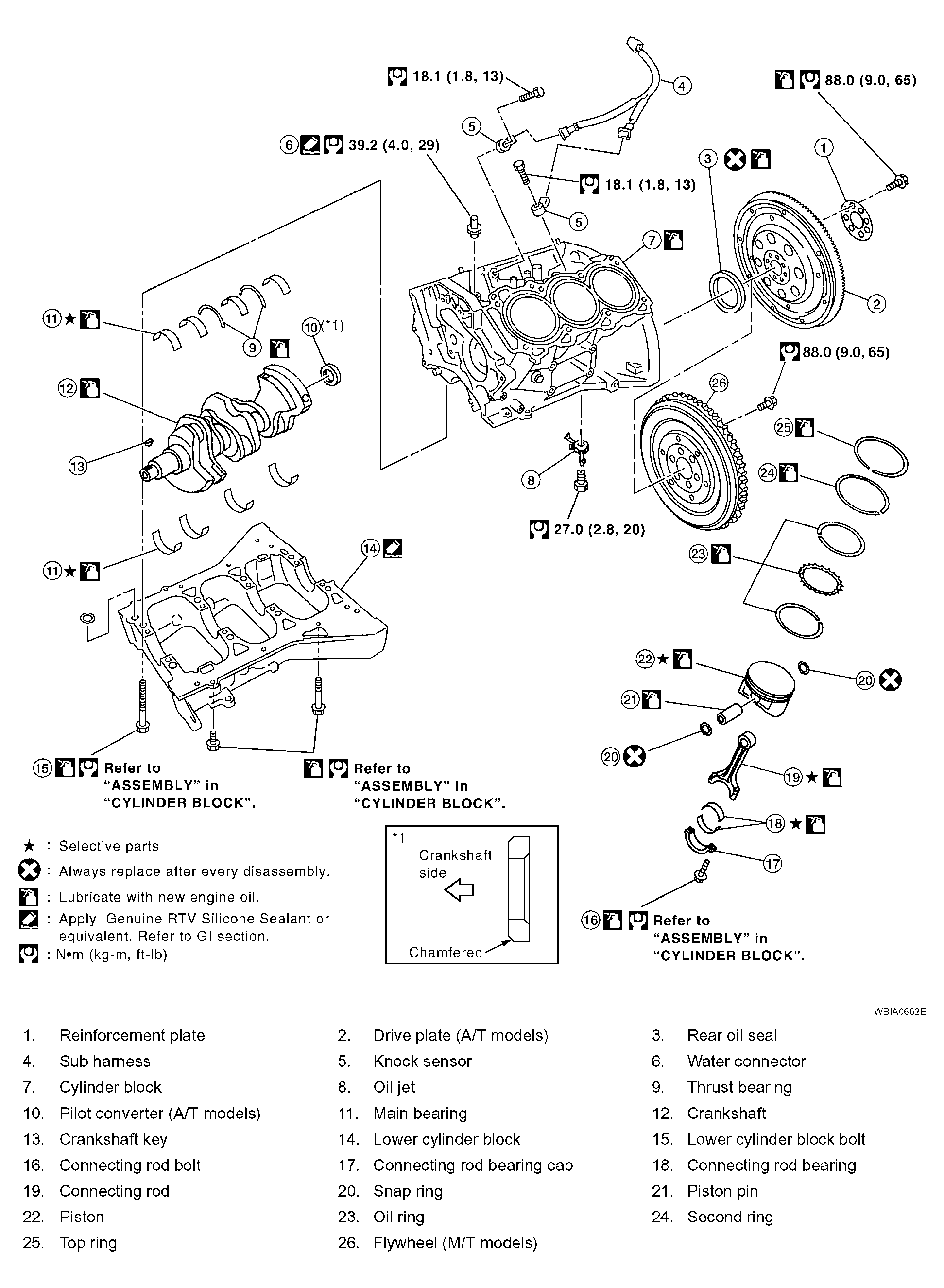

Fig 1: Exploded View Of Cylinder Block With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

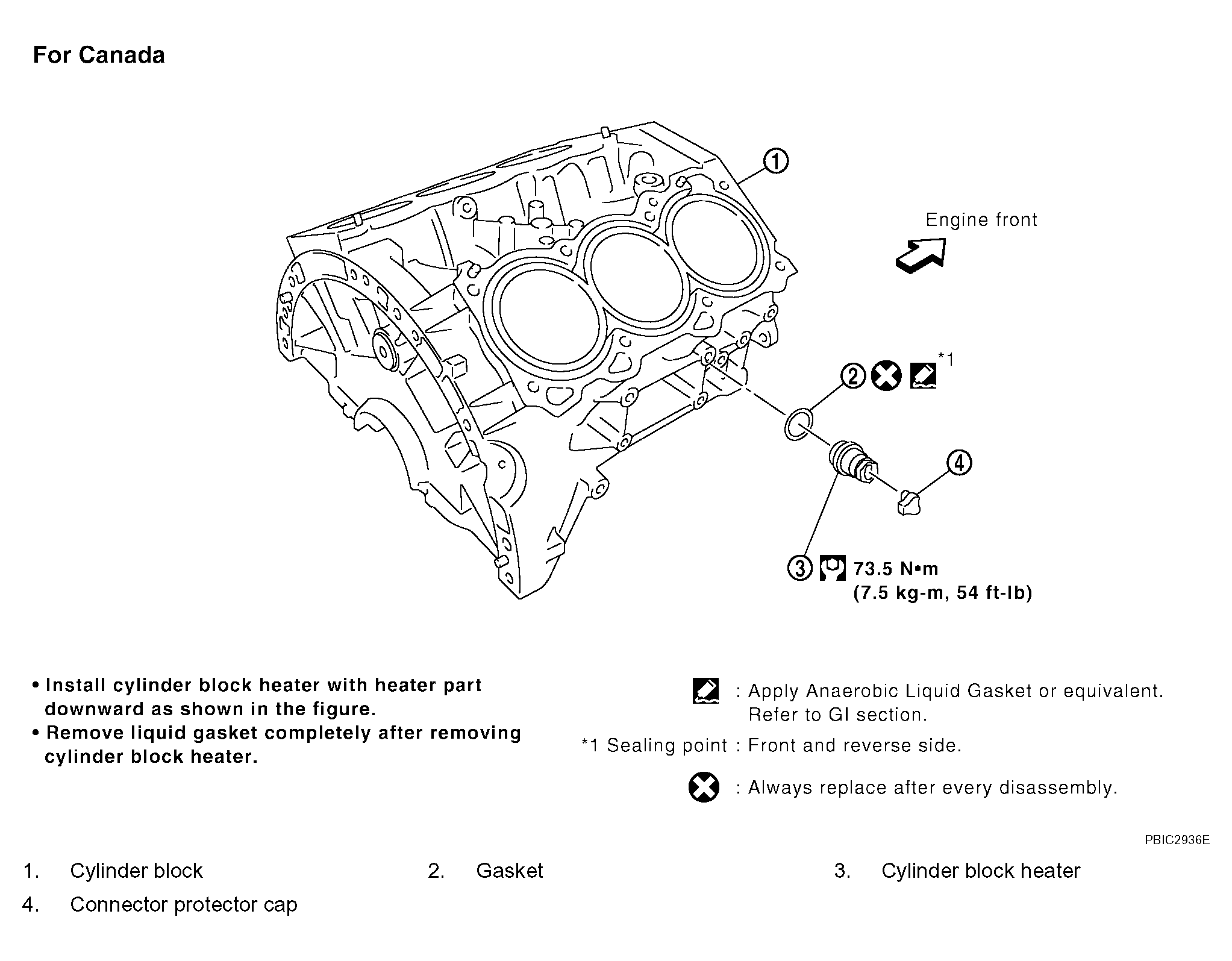

Fig 2: Exploded View Of Cylinder Block (Canada) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
