Frame Component Parts

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

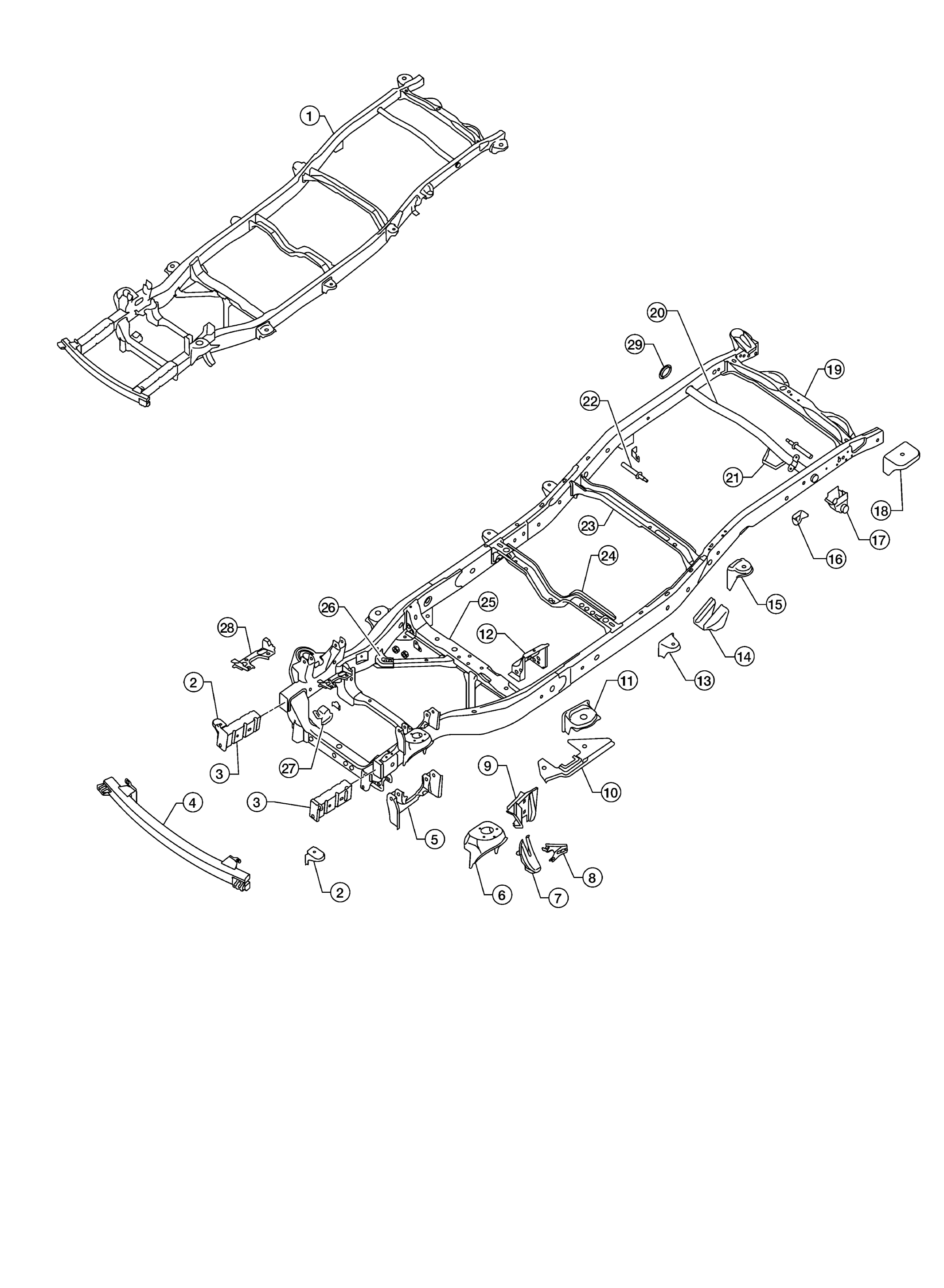

Fig 1: Frame Component (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

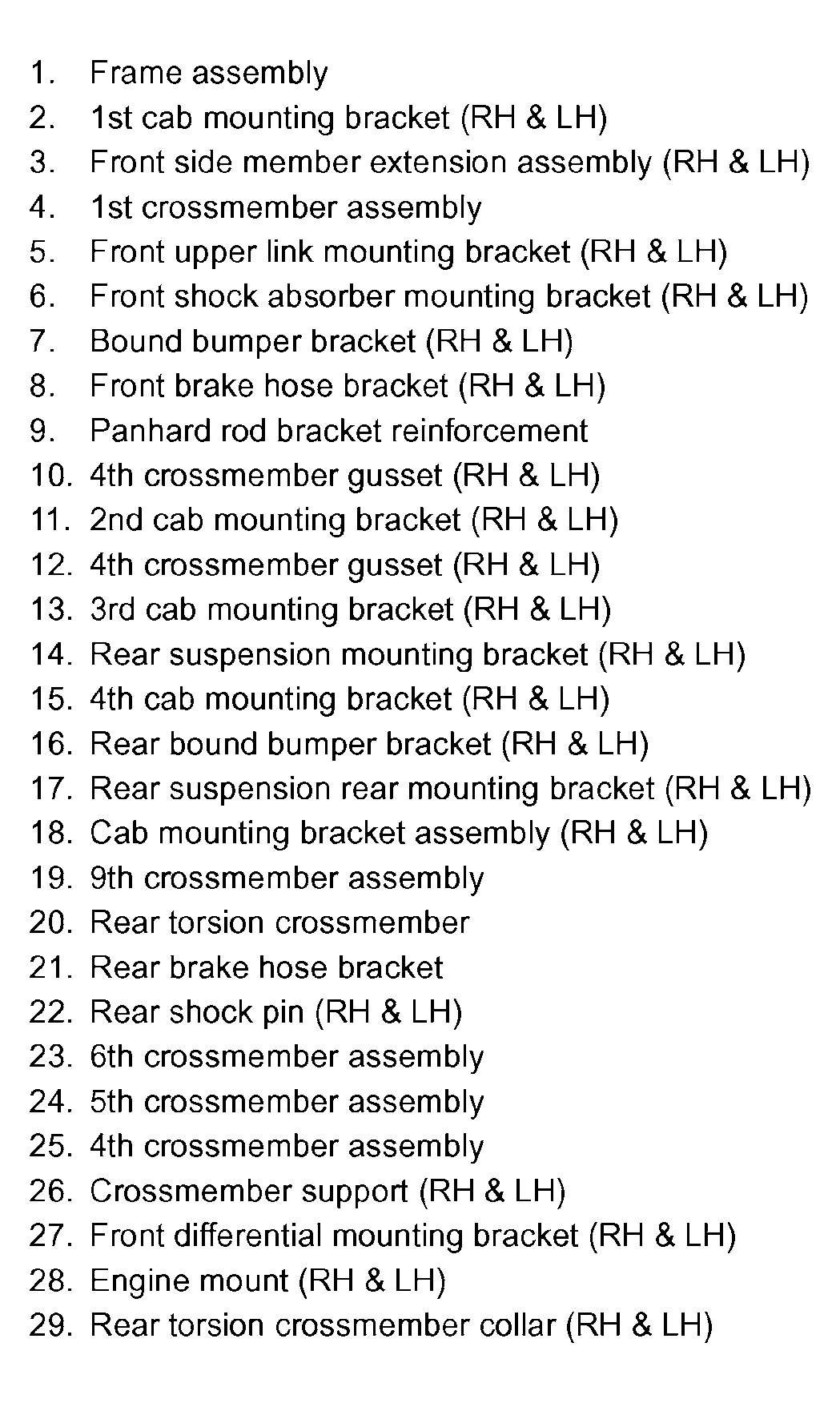

Fig 2: Frame Component (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
