Piston Selection Table

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

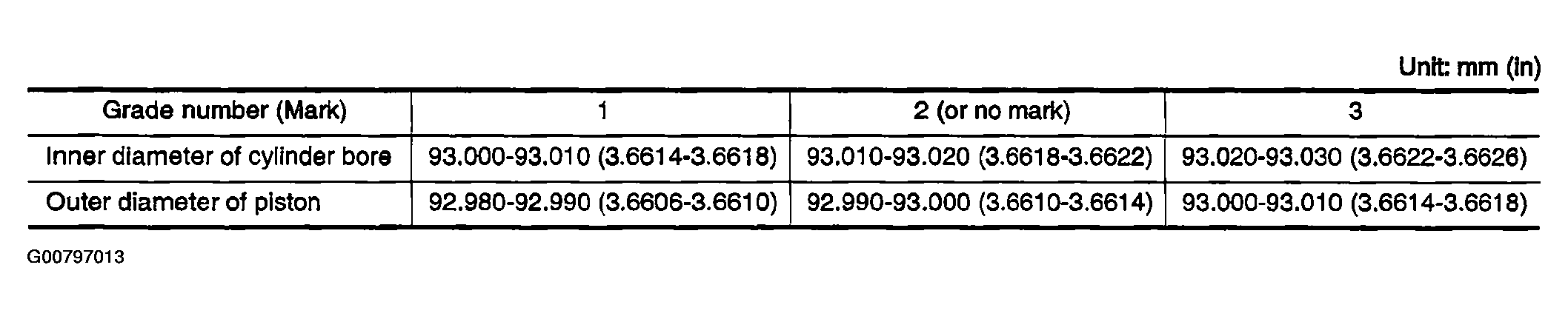

Fig 1: Determining Piston Selection Based On Grade, Measurements & Values
G00797013Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The piston is available together with piston pin as an assembly.
  • The piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For the service parts, no grades can be selected (Only 0 grade is available.).
  • No second grade mark is available on piston.
