Removal and Installation of BCM: Removal
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If possible, before rem0ving BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to
"CONFIGURATION ".
- Disconnect negative battery cable.
- Remove lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
- Remove knee protector. Refer to "INSTRUMENT PANEL ASSEMBLY ".

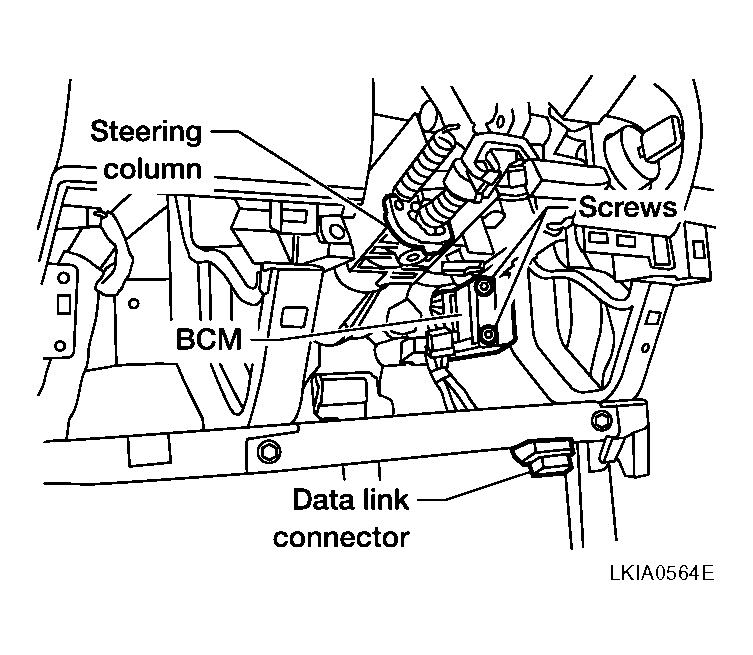

- Remove screws and release BCM.
- Disconnect connectors and then rem0ve BCM.
