Sliding Roof Housing: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Sliding Roof Housing Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

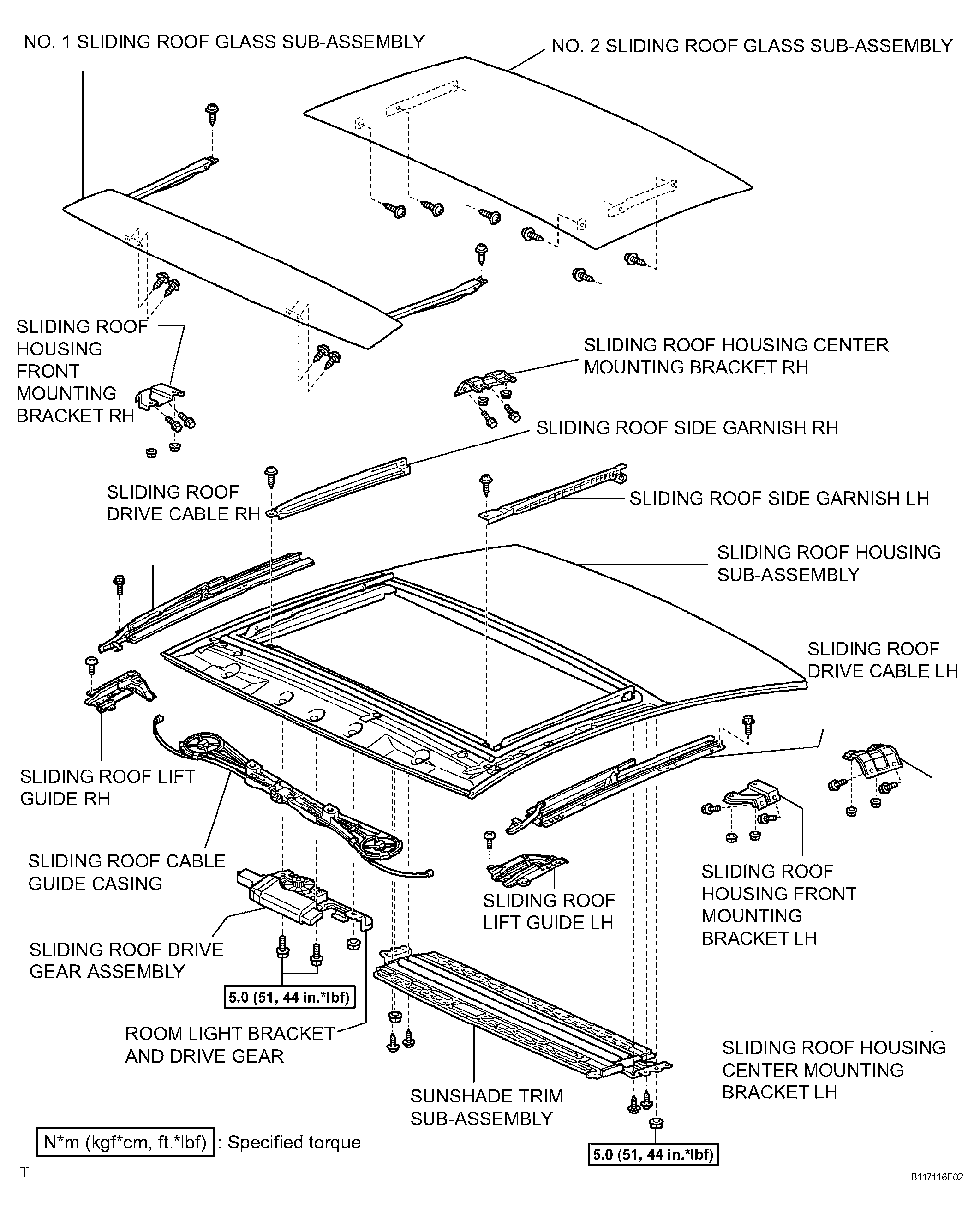

Fig 2: Identifying Sliding Roof Housing Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Sliding Roof Housing Components (3 Of 4)

Fig 4: Identifying Sliding Roof Housing Components (4 Of 4)
