Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine cover with power tool. Refer to ENGINE ROOM COVER .
  2. Remove engine front undercover with power tool.
  3. Drain engine coolant from radiator. Refer to "CHANGING ENGINE COOLANT  ".
    CAUTION: Perform this step when engine is cold.
  4. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly. Refer to "AIR CLEANER AND AIR DUCT ".
  5. Remove radiator hoses (upper and lower).
    CAUTION: Do not spill engine coolant on drive belts.
  6. Disconnect A/T fluid cooler hoses.
    • Install blind plug to avoid leakage of A/T fluid.
  7. Remove radiator shroud (lower).
    • While pressing left and right pawls in direction indicated by arrows, pull radiator shroud (lower) rearwards to remove.
    Fig 1: Removing Radiator Shroud (Lower)
    G02358687Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Lift up and remove radiator shroud.

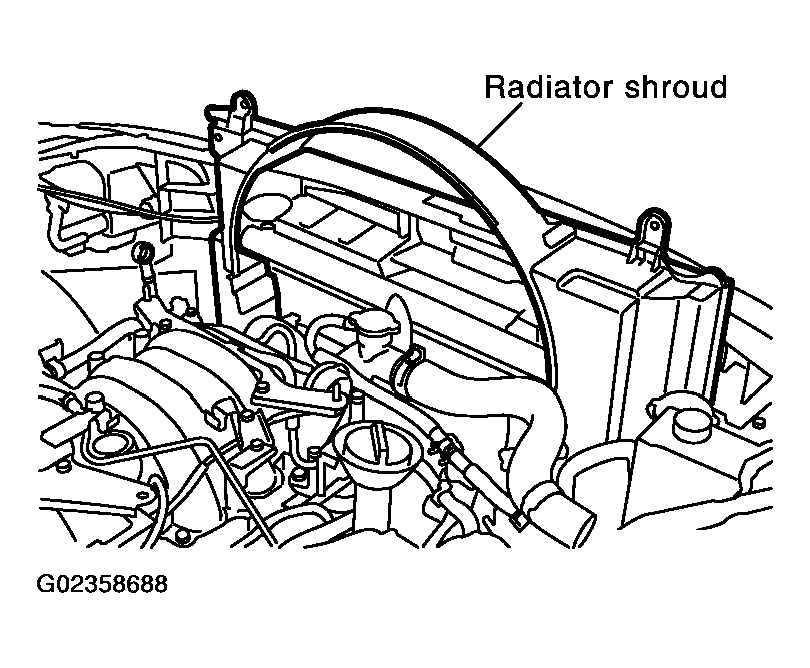

    Fig 2: Removing Radiator Shroud
    G02358688Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove washer tank mounting bolts.

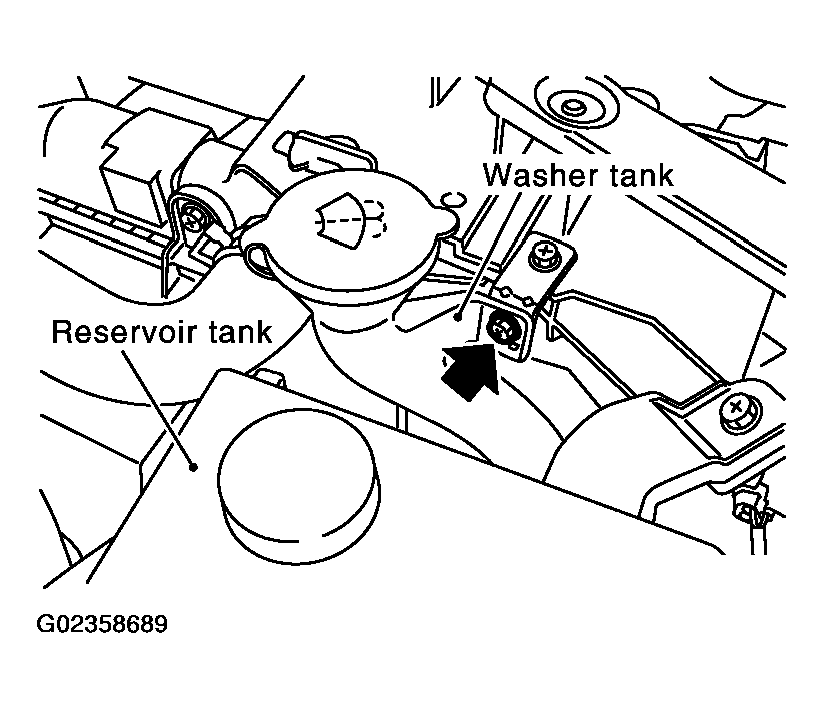

    Fig 3: Removing Washer Tank Mounting Bolts
    G02358689Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Rotate two radiator upper mount brackets 90 degrees in the direction as shown in the figure, and remove them.

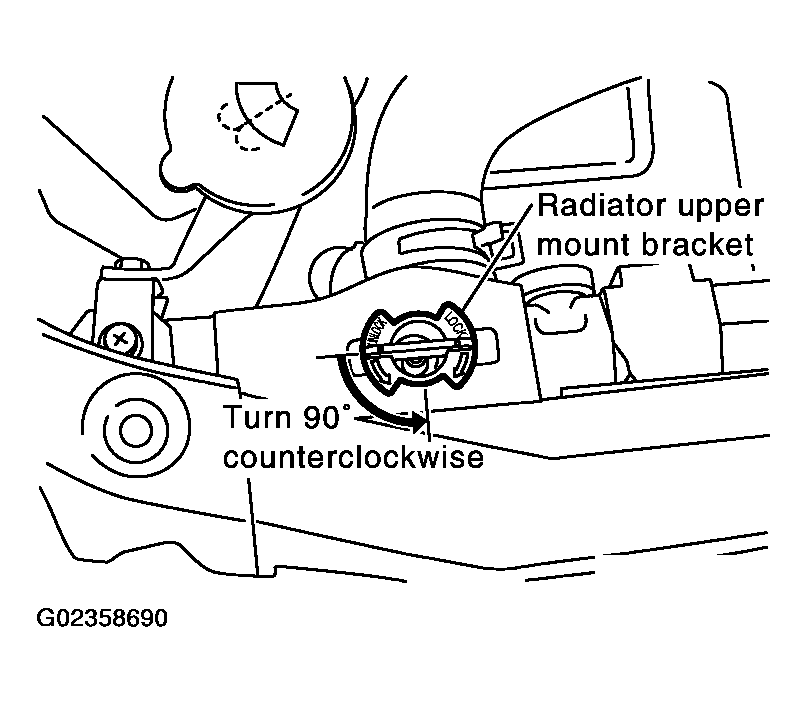

    Fig 4: Rotating Radiator Upper Mount Brackets
    G02358690Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Lift up and remove radiator.
    CAUTION: Do not damage or scratch A/C condenser and radiator core when removing.

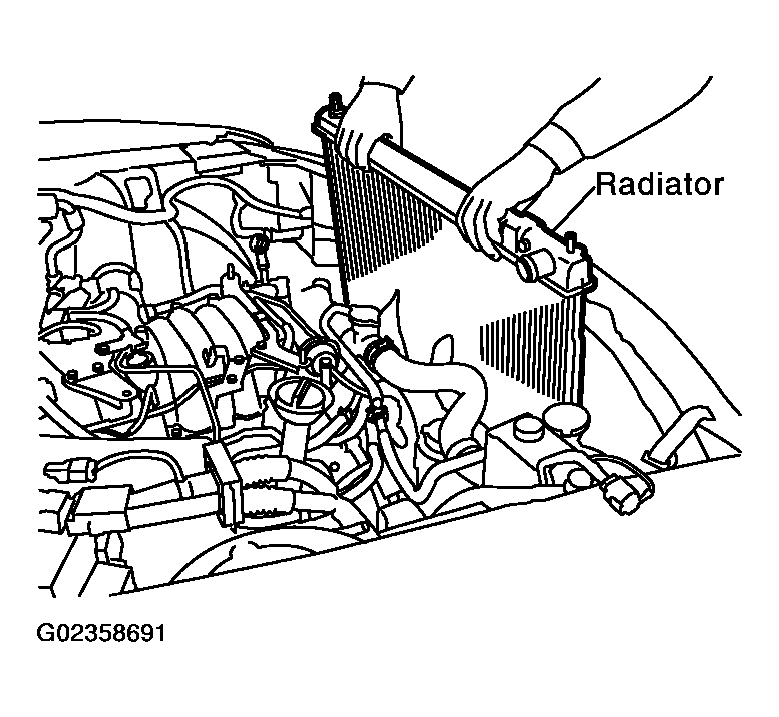

    Fig 5: Removing Radiator
    G02358691Courtesy of NISSAN MOTOR CO., U.S.A.
