Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel. Refer to "INSTRUMENT PANEL ".

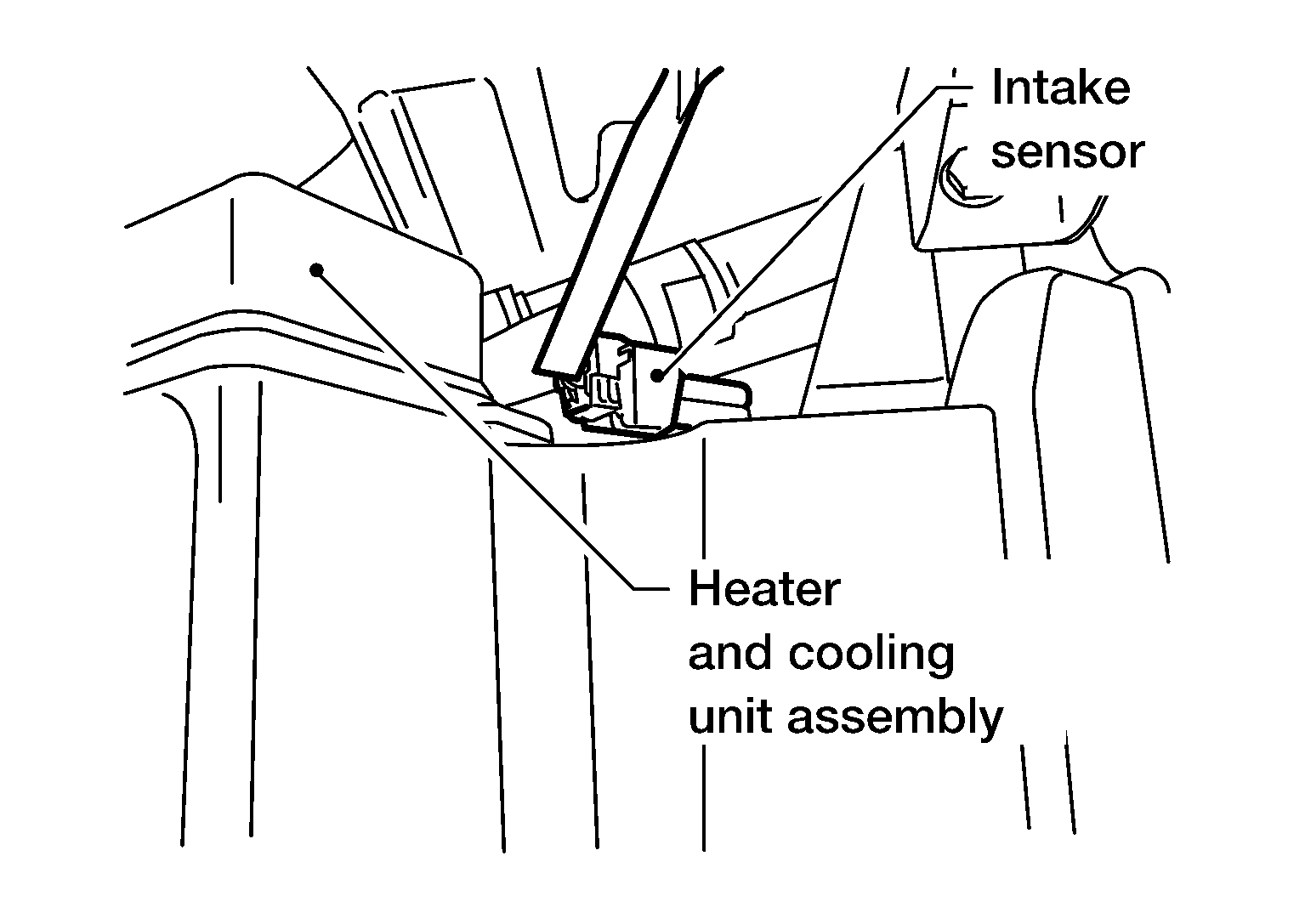

- Disconnect the intake sensor electrical connector.NOTE: The intake sensor is located on the top of the heater and cooling unit assembly next to the A/C evaporator cover.
- Twist the intake sensor to remove the intake sensor from the heater and cooling unit assembly.
