Section 2012 (Automatic Air Conditioner)
›
Air Conditioner Control
›
System Description (Front)
›
Switches And Their Control Function
Switches And Their Control Function
WARNING:
This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

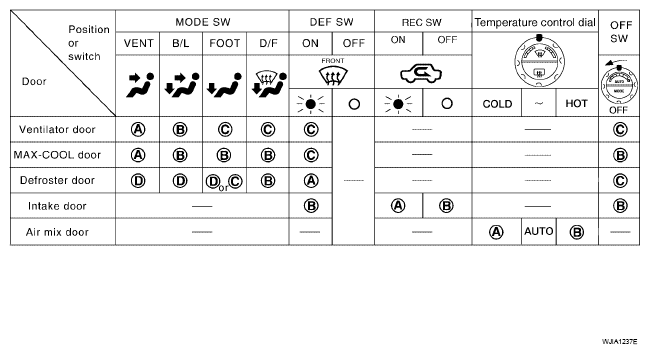

Fig 1: Identifying Switches Control Function Diagram (Front)

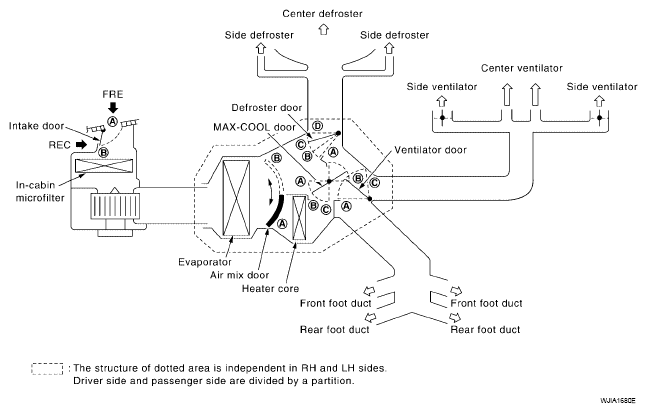

Fig 2: Identifying Air Flow Reference Chart
