Refrigerant Lines: Components

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

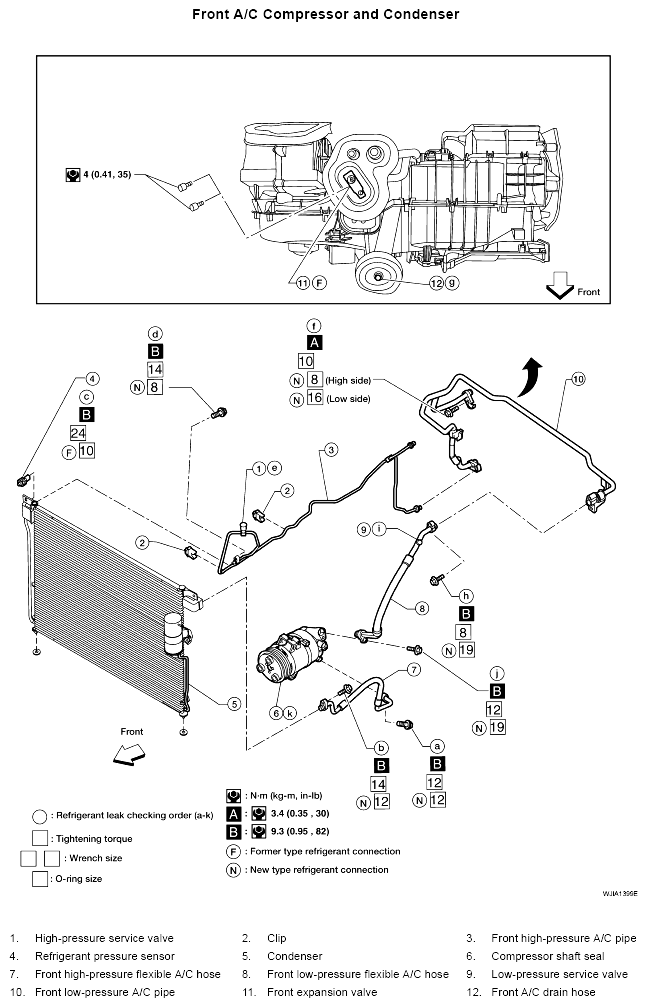

Fig 1: Front A/C Compressor And Condenser Replacement Components With Torque Specifications
G04913532

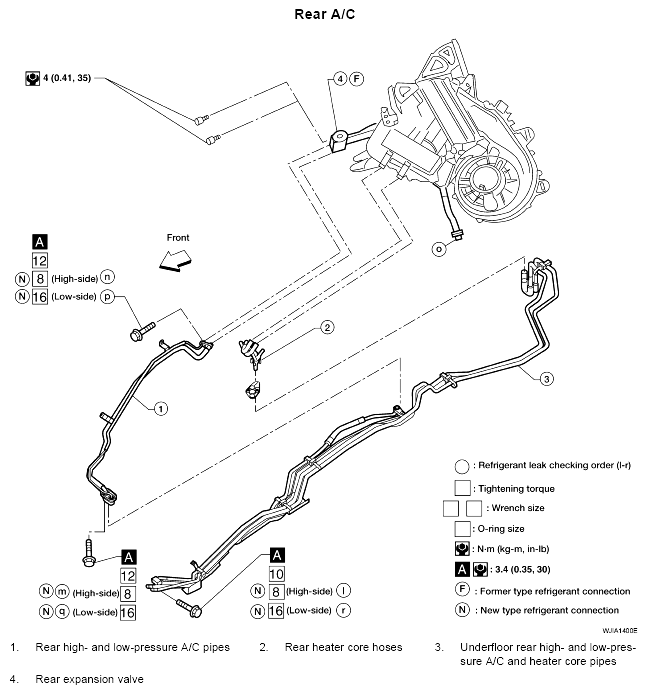

Fig 2: Rear A/C Replacement Components With Torque Specifications
G04913533
NOTE: Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".
