System Application

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

BCM can perform the following functions.

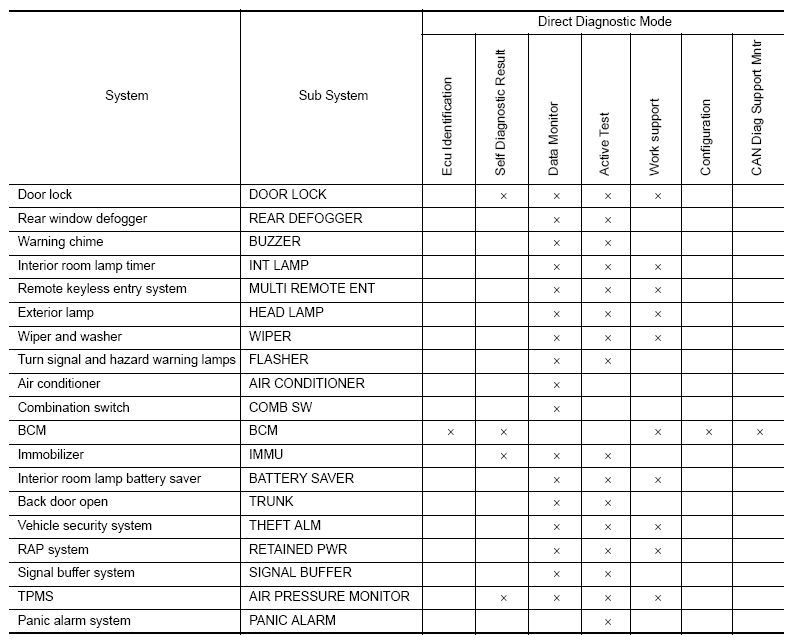

Fig 1: BCM Function Chart
G07152885
