With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check operation with "SLIDE PULSE" on the DATA MONITOR to make sure the pulse changes.

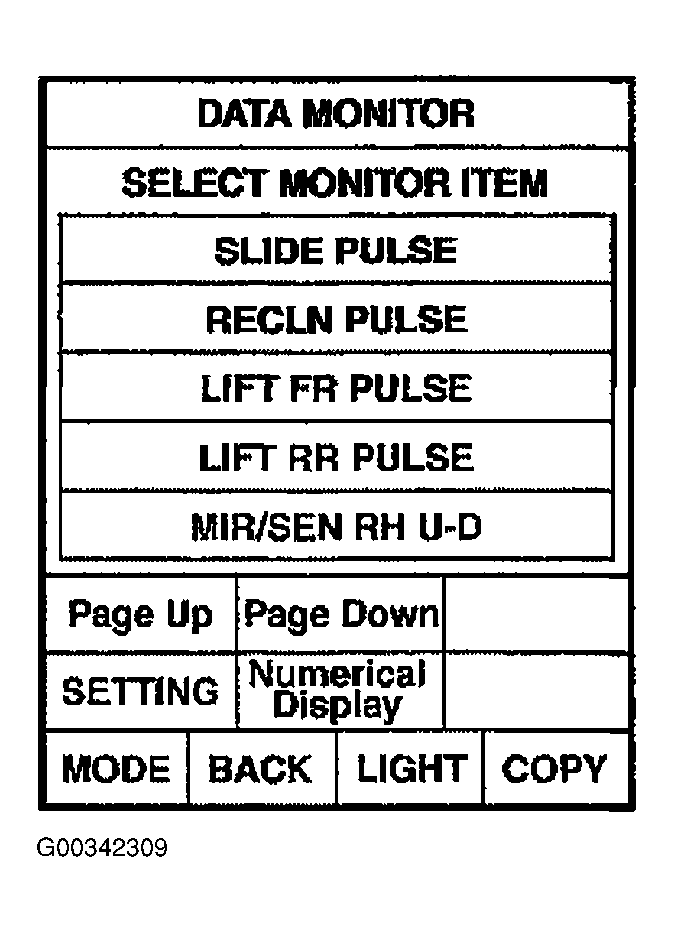

Fig 1: Data Monitor Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: CONSULT-II Display

Courtesy of NISSAN MOTOR CO., U.S.A.
