Automatic Operation

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

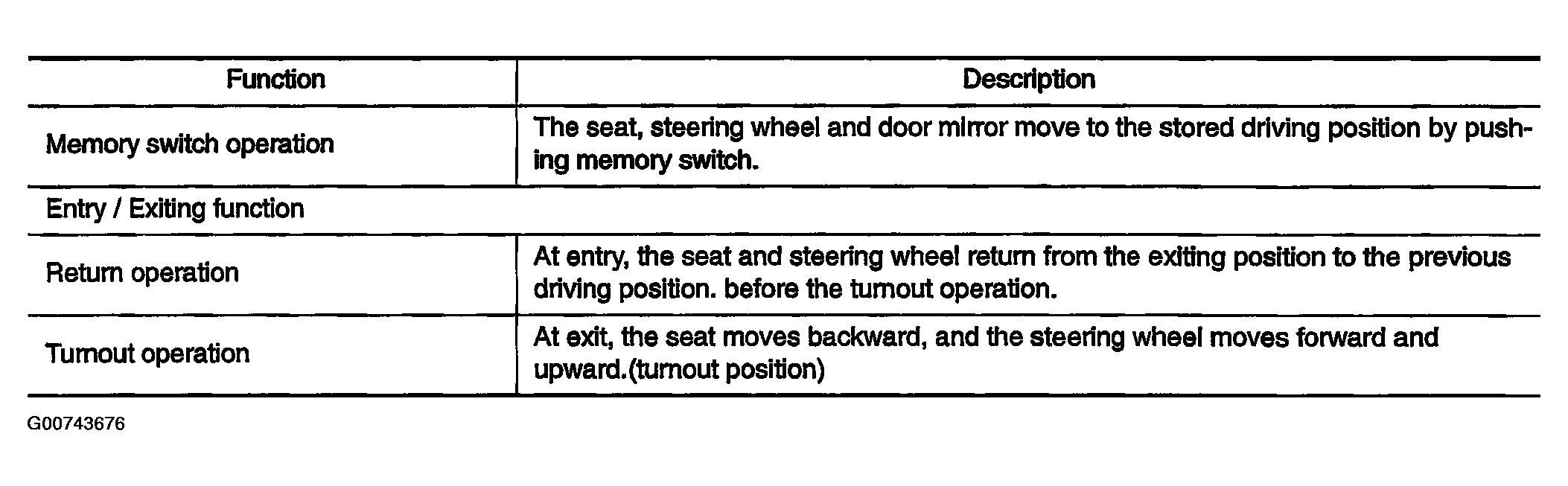

Fig 1: Automatic Operation (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open) to OFF (close) to ON (open), the Entry/Exiting function becomes possible.

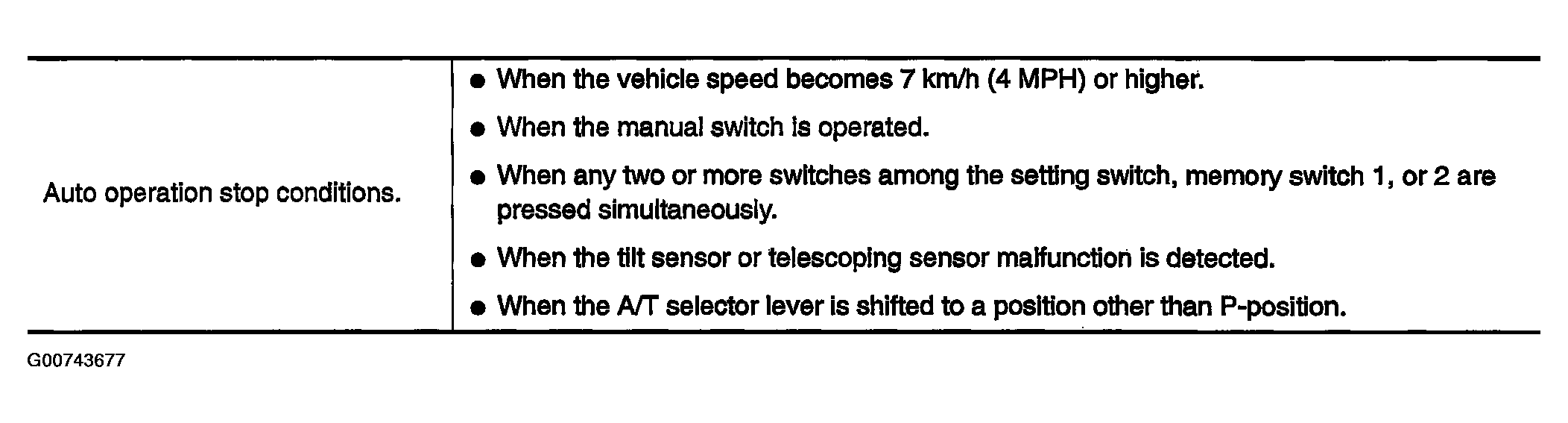

Fig 2: Automatic Operation (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: During automatic operation, if the ignition switch is turned ON to START, the automatic operation is suspended. When the ignition switch returns to ON, it resumes.
