Cooling Fan: Removal: Notes
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Drain engine coolant from radiator. Refer to "Changing Engine Coolant
".CAUTION:
- Perform this step when engine is cold.
- Do not spill engine coolant on drive belts.
- Remove air duct (inlet) and air cleaner case. Refer to AIR CLEANER AND AIR DUCT .
- Disconnect radiator hose (upper) at radiator side.

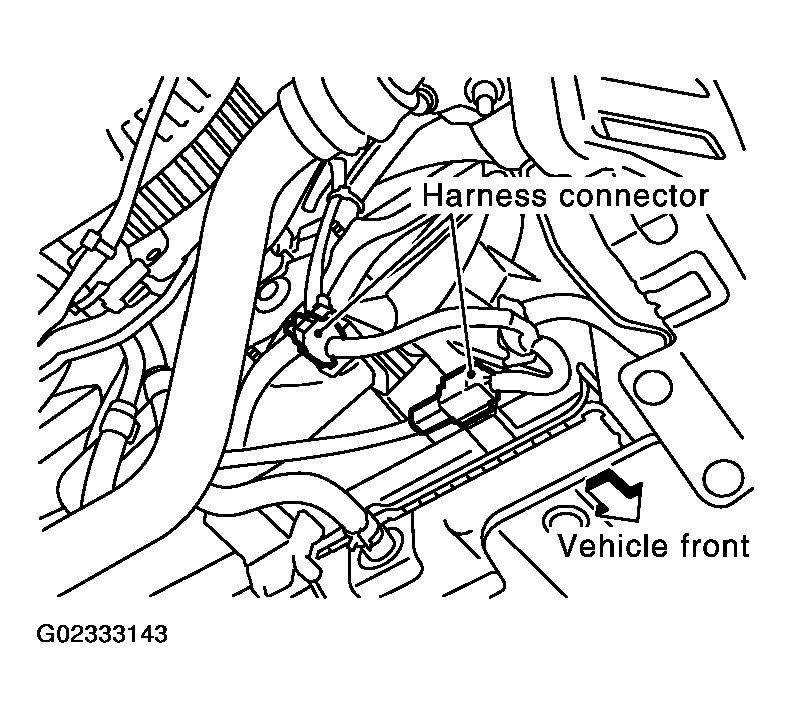

- Disconnect fan motor harness connectors at the right-lower portion of fan shroud.
- Remove radiator cooling fan assembly.CAUTION: Be careful not to damage or scratch on radiator core.
