Engine Control Component Parts Location

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

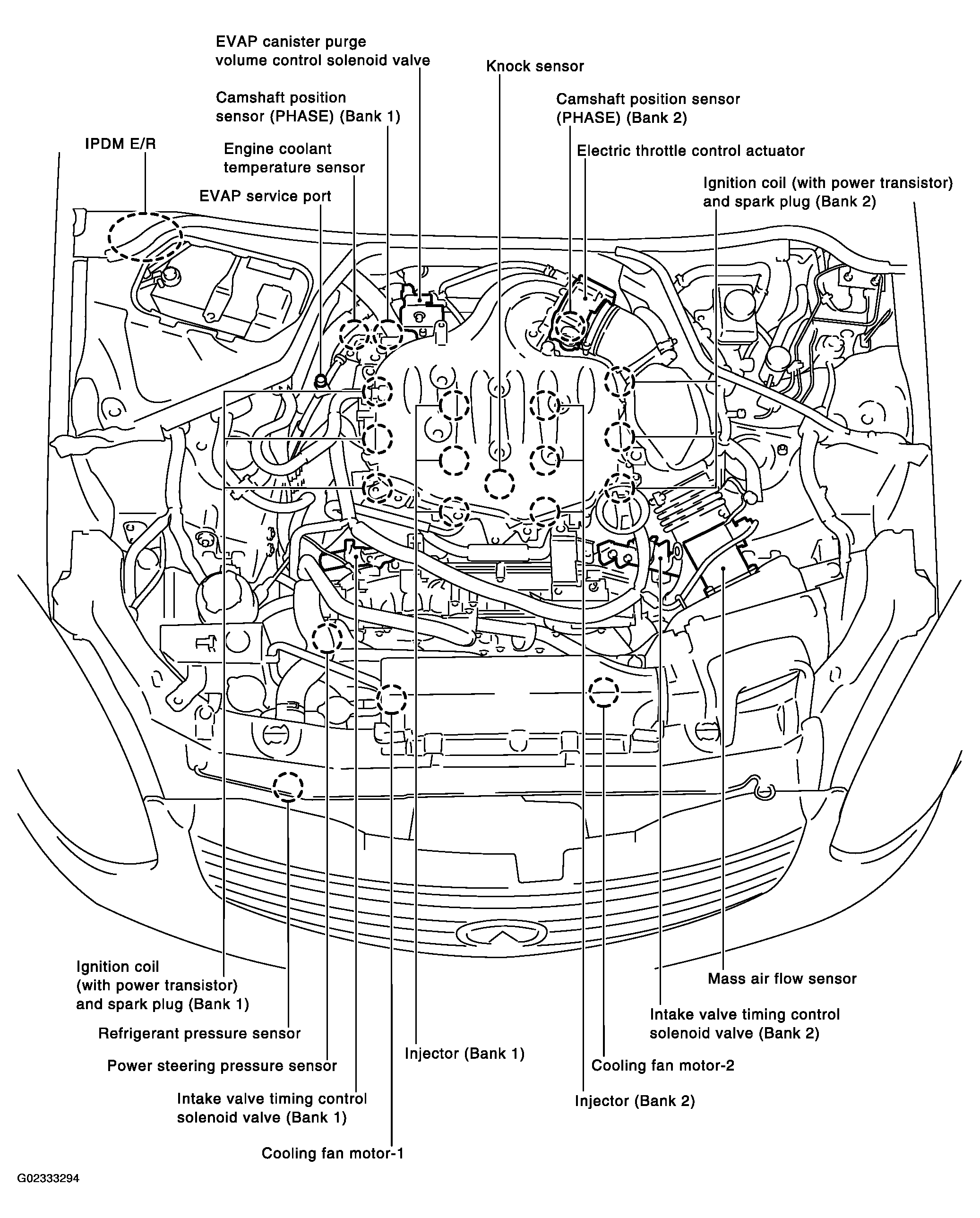

Fig 1: Locating Engine Control Components (1 Of 7)

G02333294

Courtesy of NISSAN MOTOR CO., U.S.A.

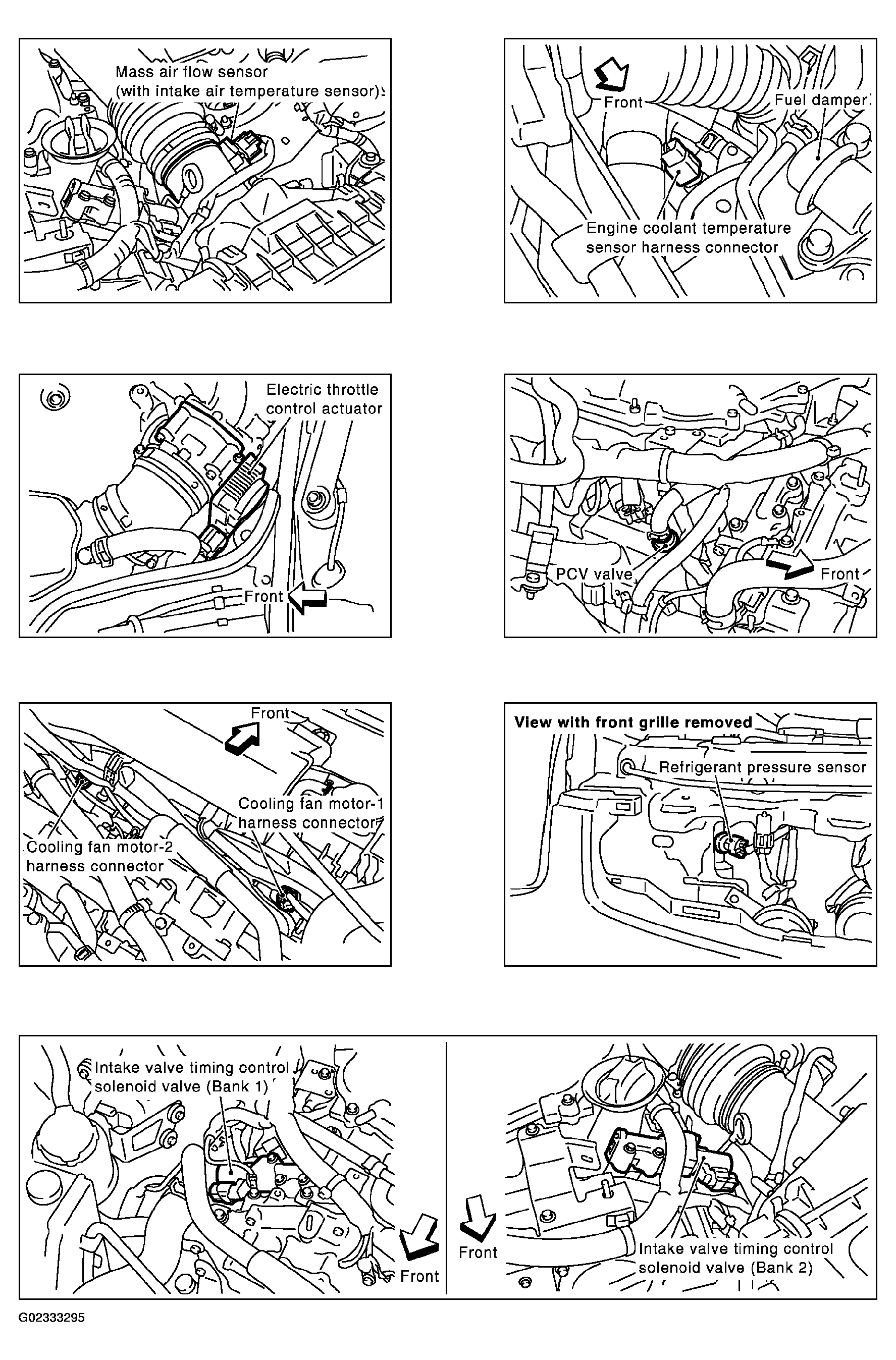

Fig 2: Locating Engine Control Components (2 Of 7)

G02333295

Courtesy of NISSAN MOTOR CO., U.S.A.

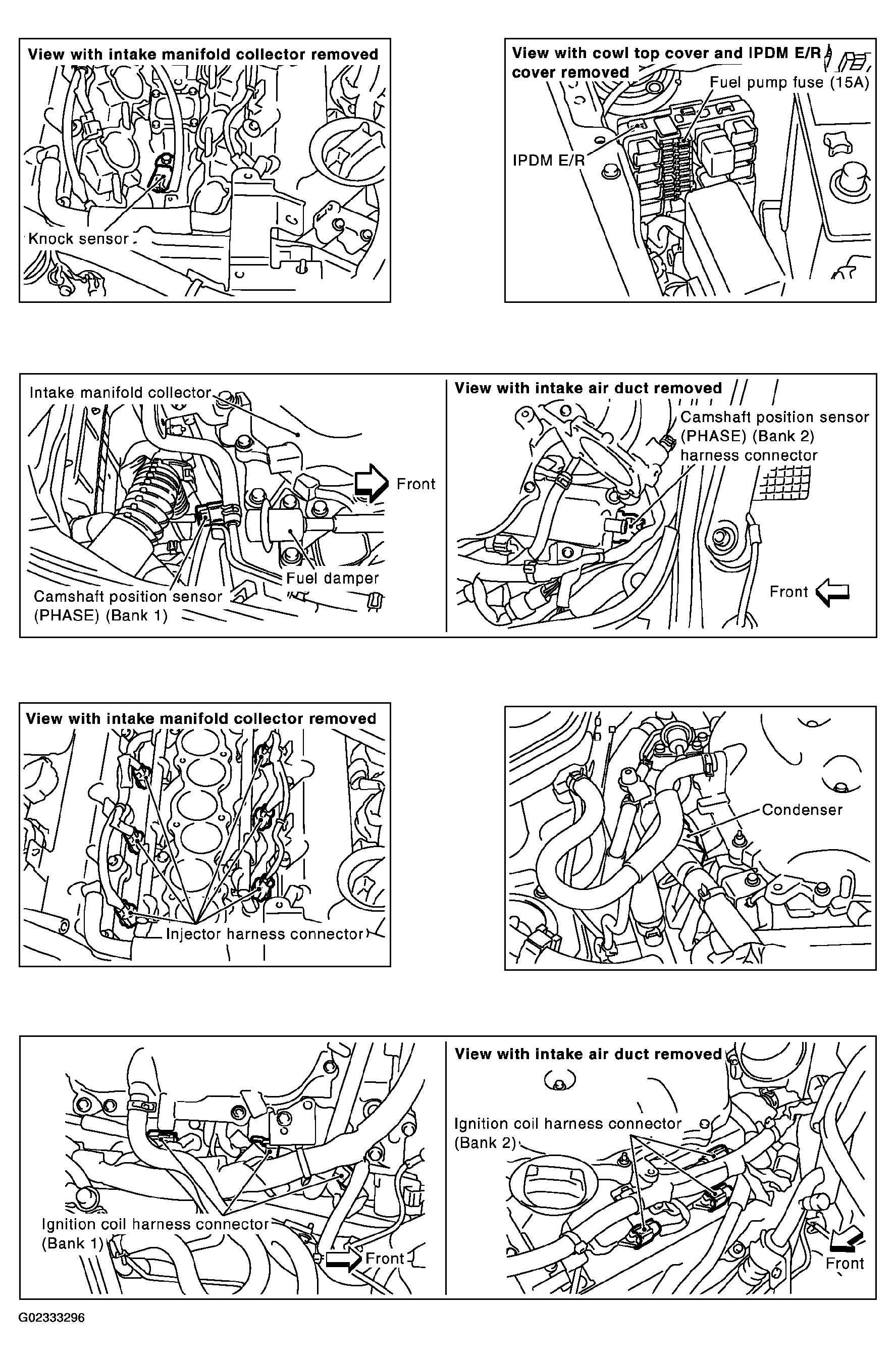

Fig 3: Locating Engine Control Components (3 Of 7)

G02333296

Courtesy of NISSAN MOTOR CO., U.S.A.

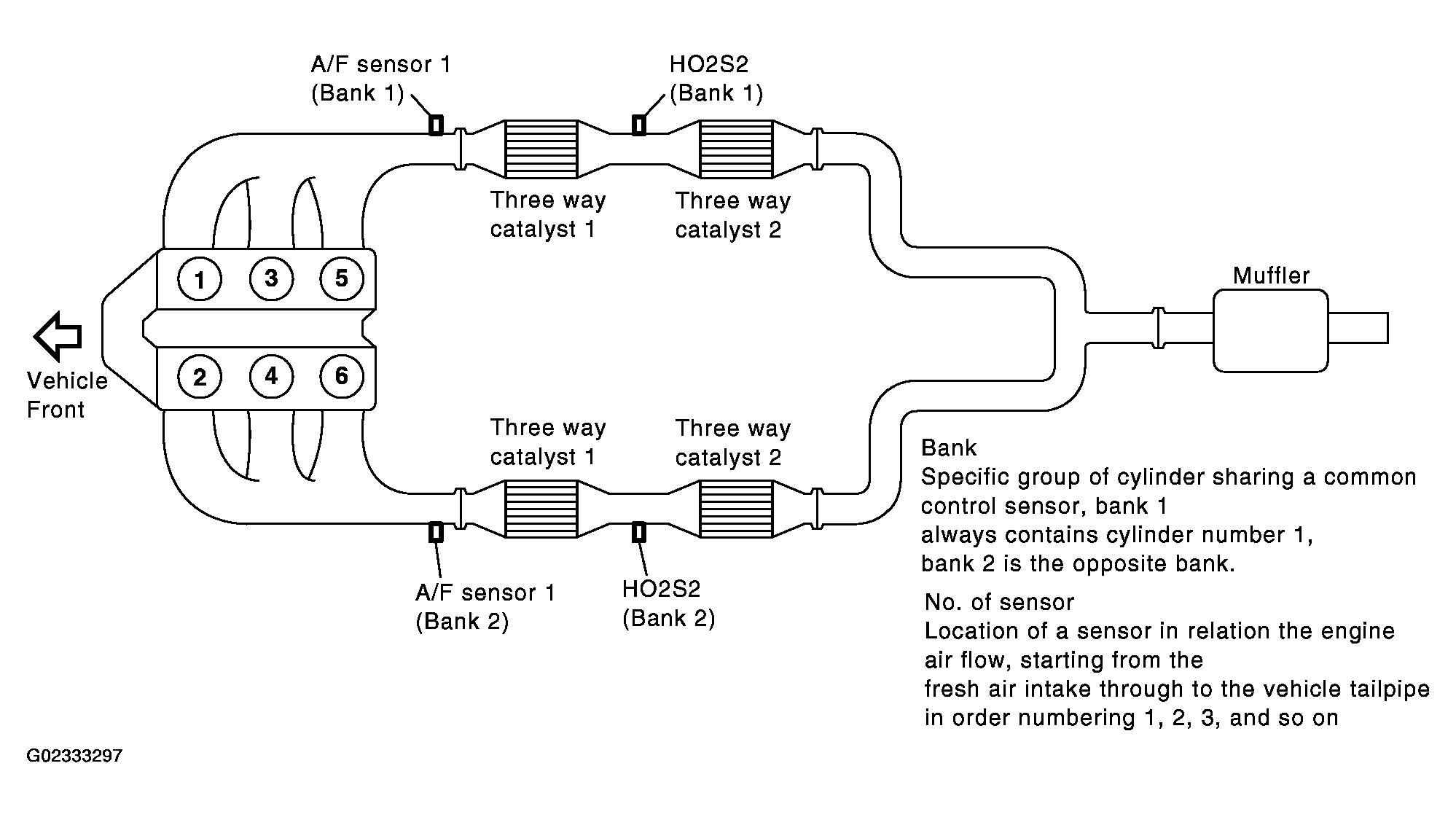

Fig 4: Locating Engine Control Components (4 Of 7)

G02333297

Courtesy of NISSAN MOTOR CO., U.S.A.

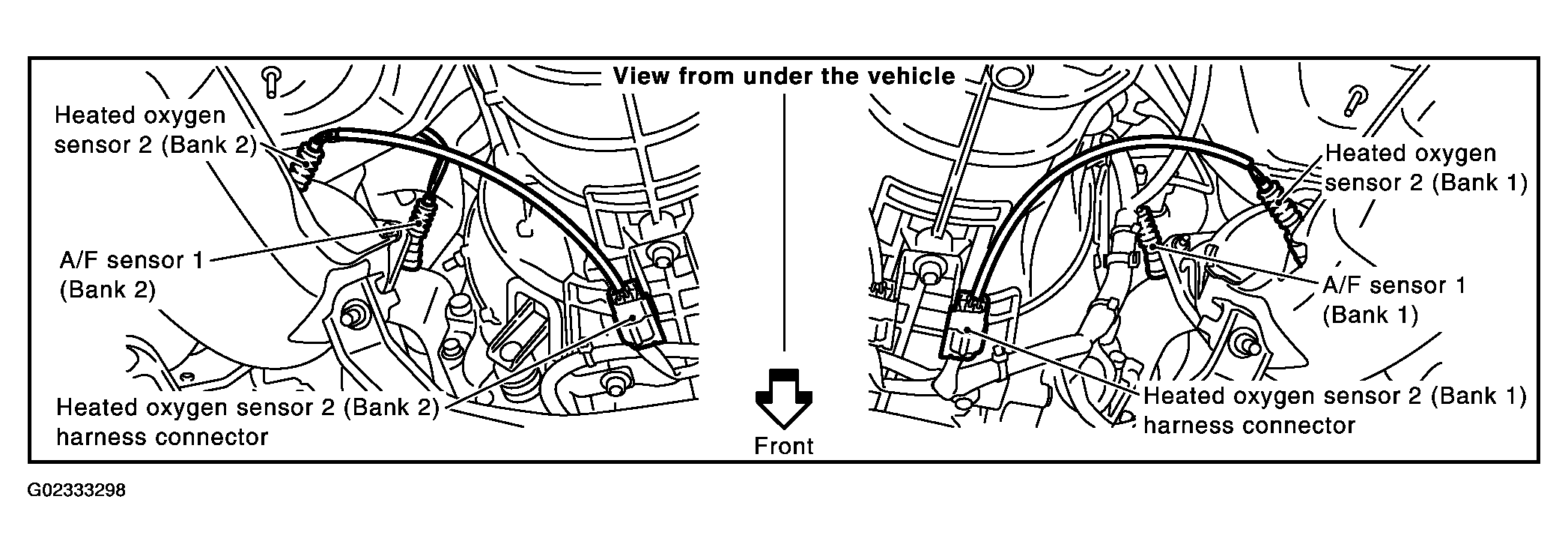

Fig 5: Locating Engine Control Components (5 Of 7)

G02333298

Courtesy of NISSAN MOTOR CO., U.S.A.

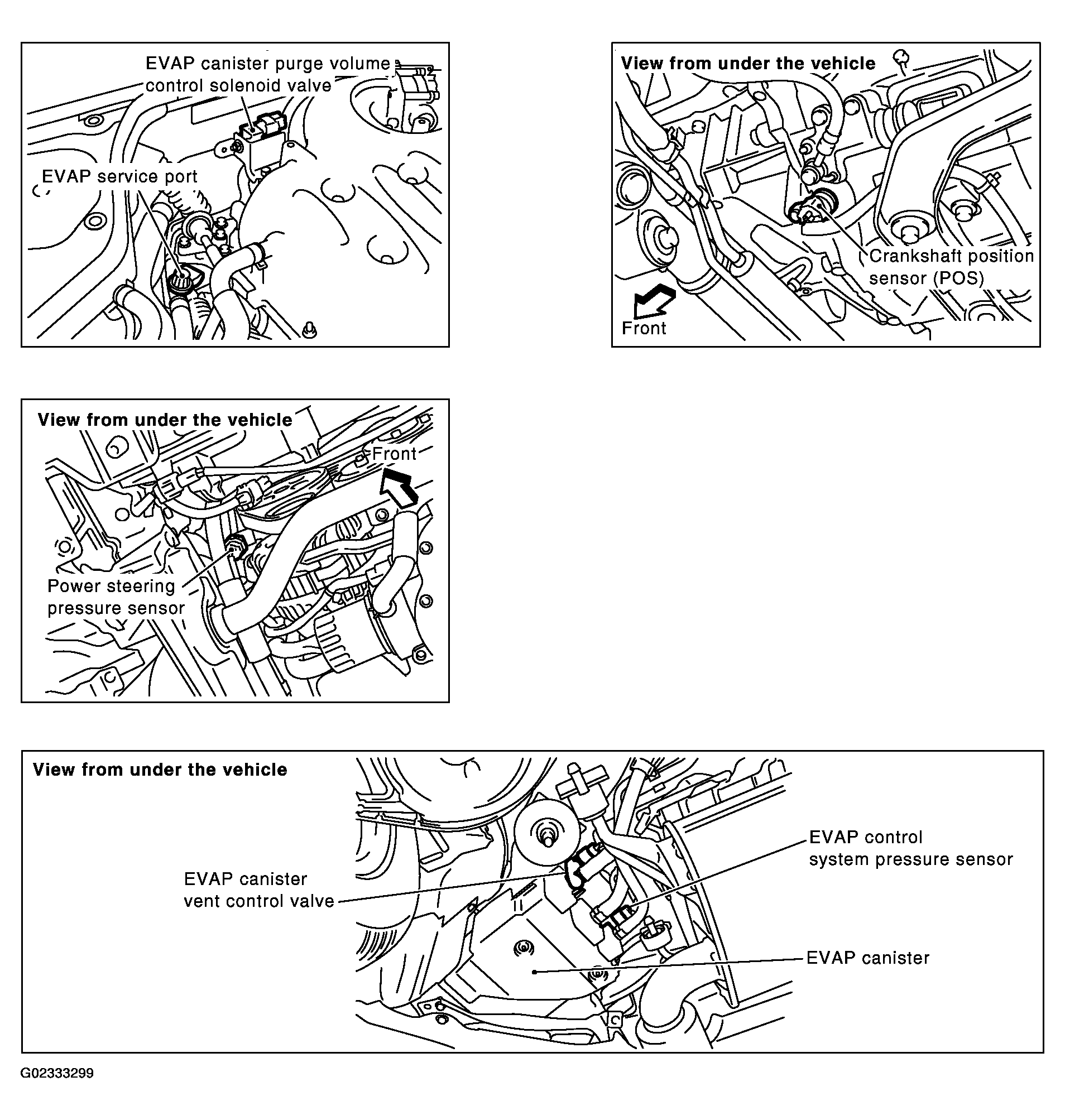

Fig 6: Locating Engine Control Components (6 Of 7)

G02333299

Courtesy of NISSAN MOTOR CO., U.S.A.

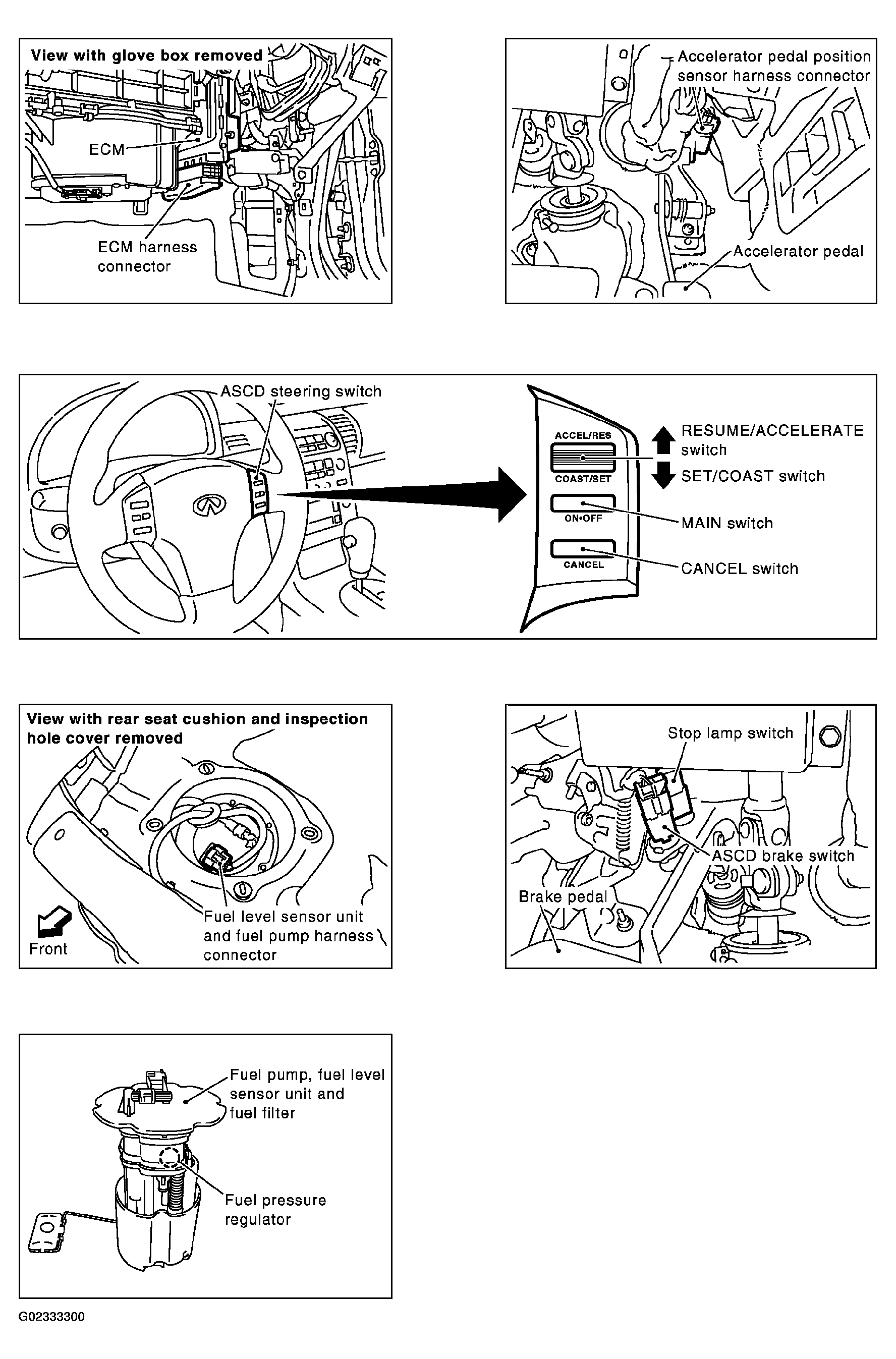

Fig 7: Locating Engine Control Components (7 Of 7)

G02333300

Courtesy of NISSAN MOTOR CO., U.S.A.
