11 Position

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

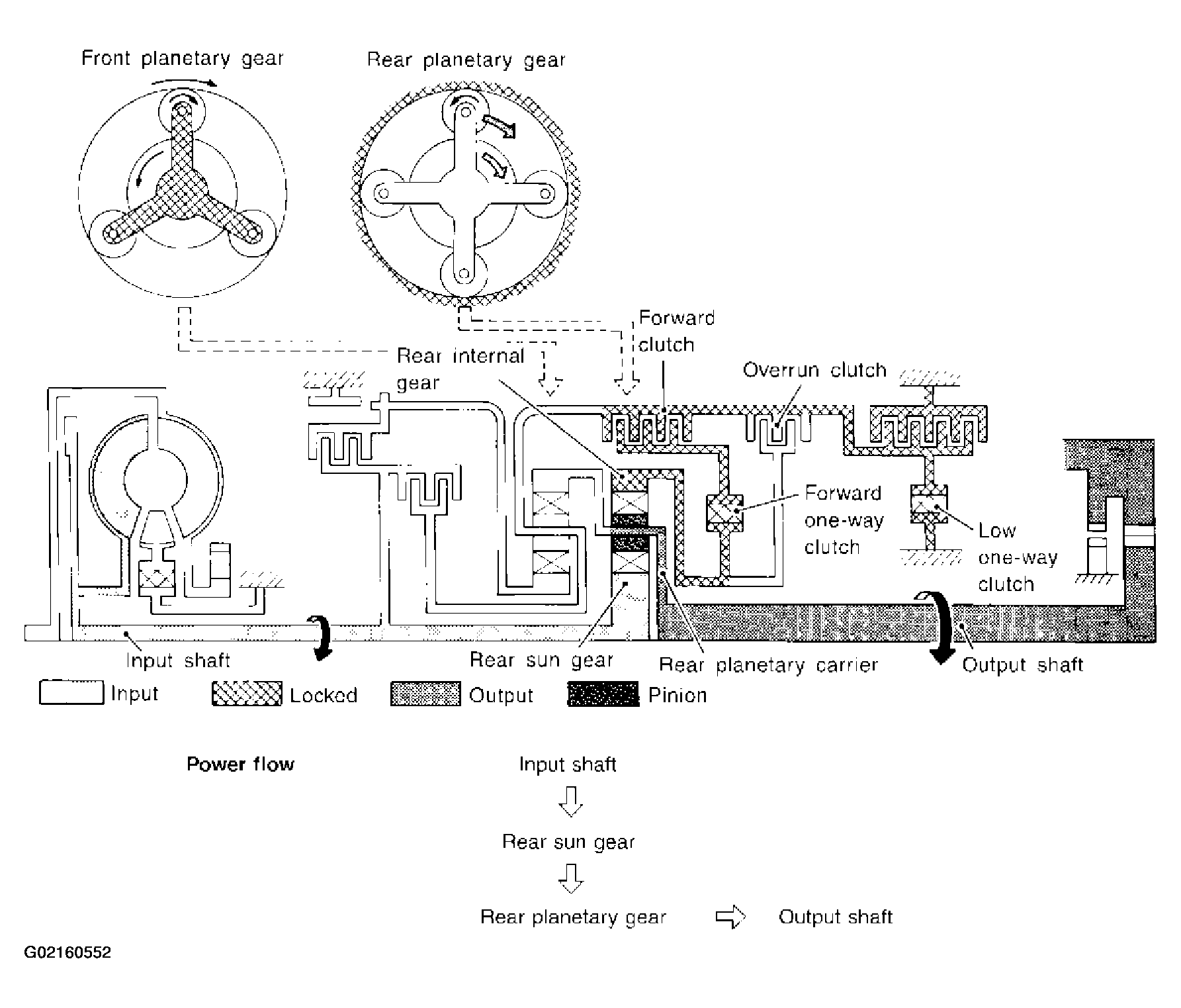

Fig 1: Power Transmission 11 Position Diagram
G02160552Courtesy of NISSAN MOTOR CO., U.S.A.

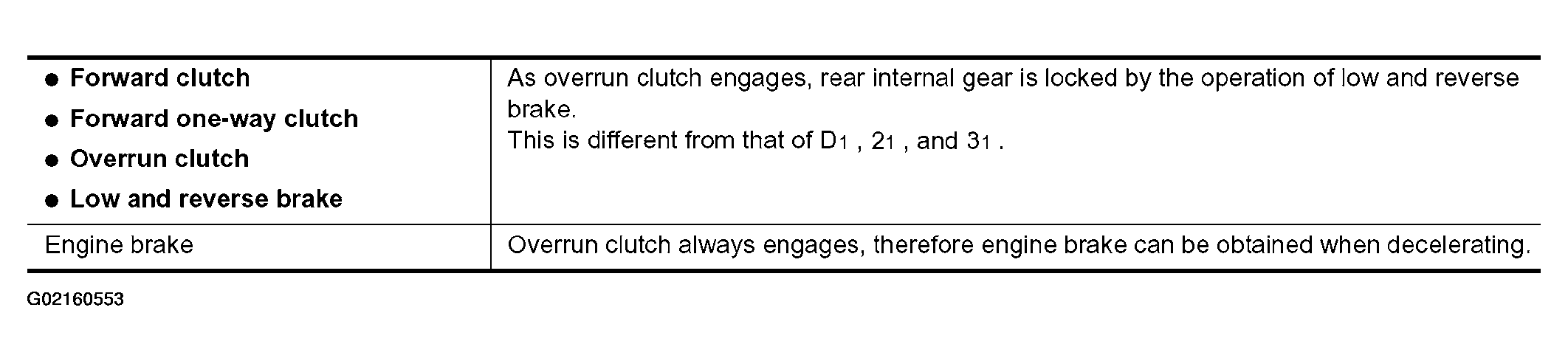

Fig 2: Power Transmission 11 Position Description Chart
G02160553Courtesy of NISSAN MOTOR CO., U.S.A.
