Install revolution sensor onto transmission case.
Always use new sealing parts.

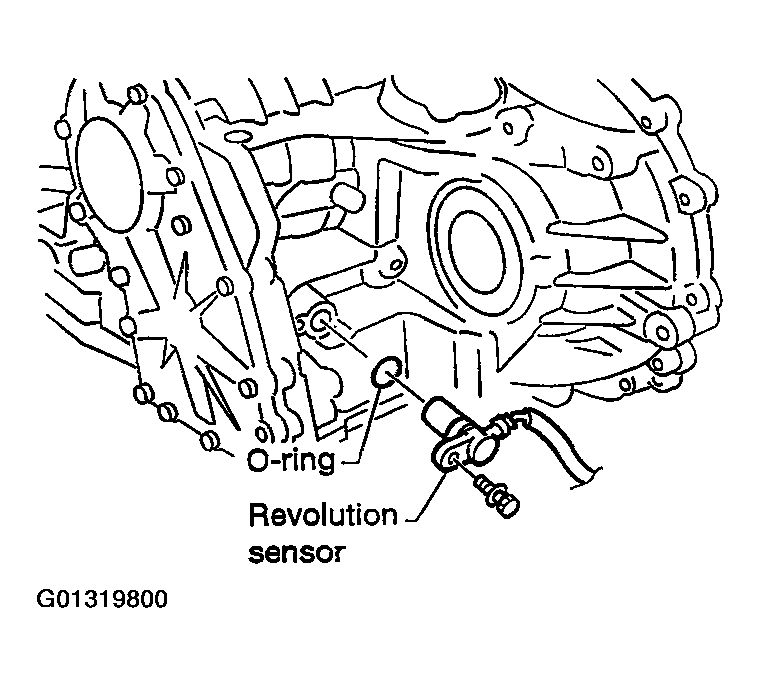

Fig 1: Identifying Revolution Sensor O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential side oil seals on transmission case and converter housing, so that "A" and "B" are within specifications.

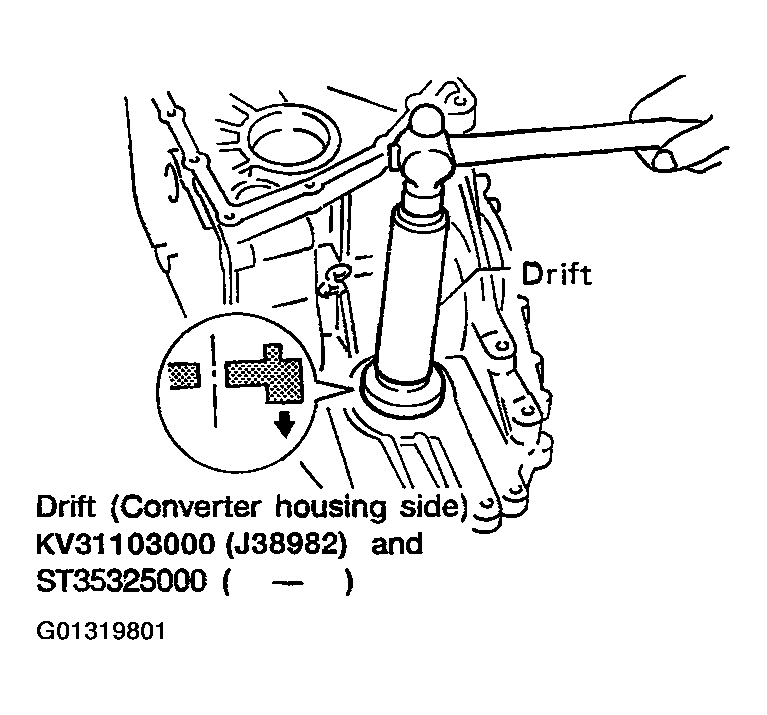

Fig 2: Installing Differential Side Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Oil Seal Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Oil Seal Thickness Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
- Pay attention to direction of parking actuator support.

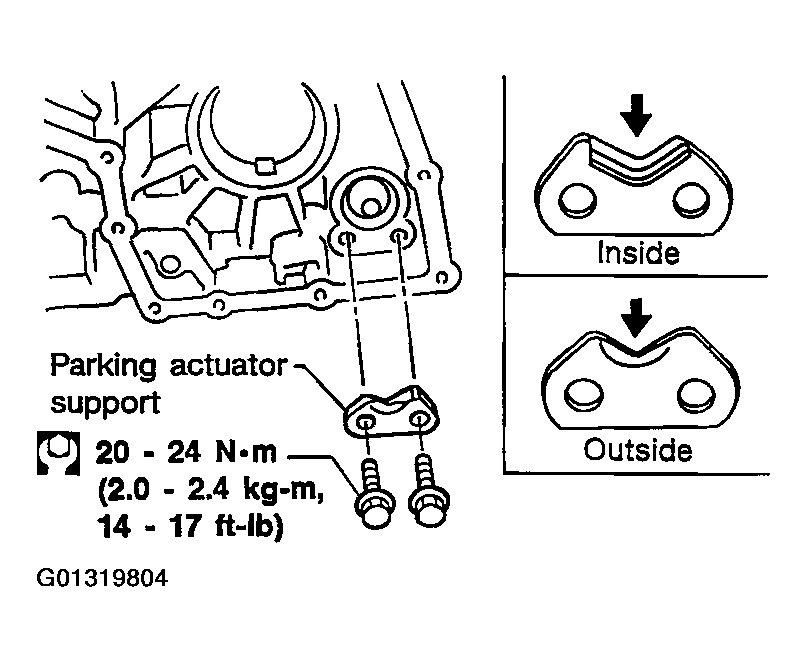

Fig 5: Identifying Parking Actuator Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transmission case and fix it with parking shaft.

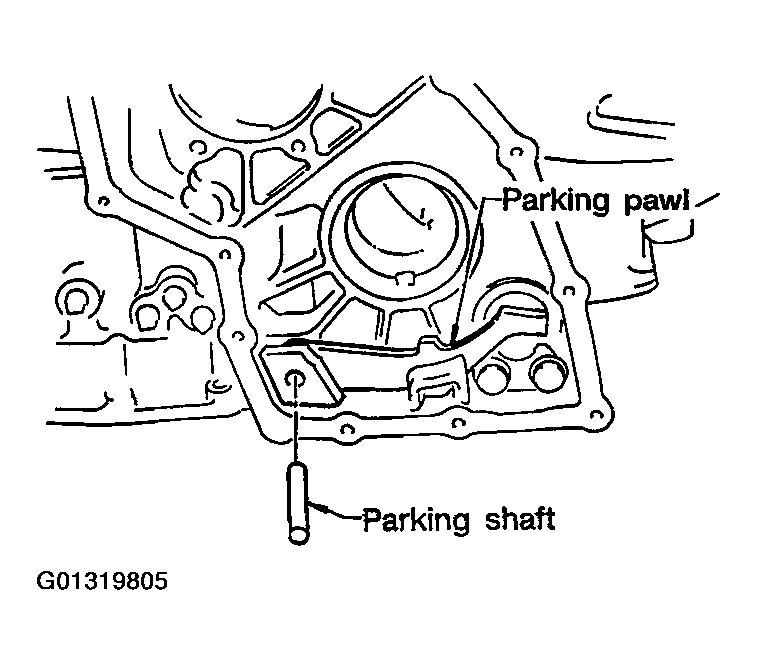

Fig 6: Identifying Parking Pawl And Parking Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring.

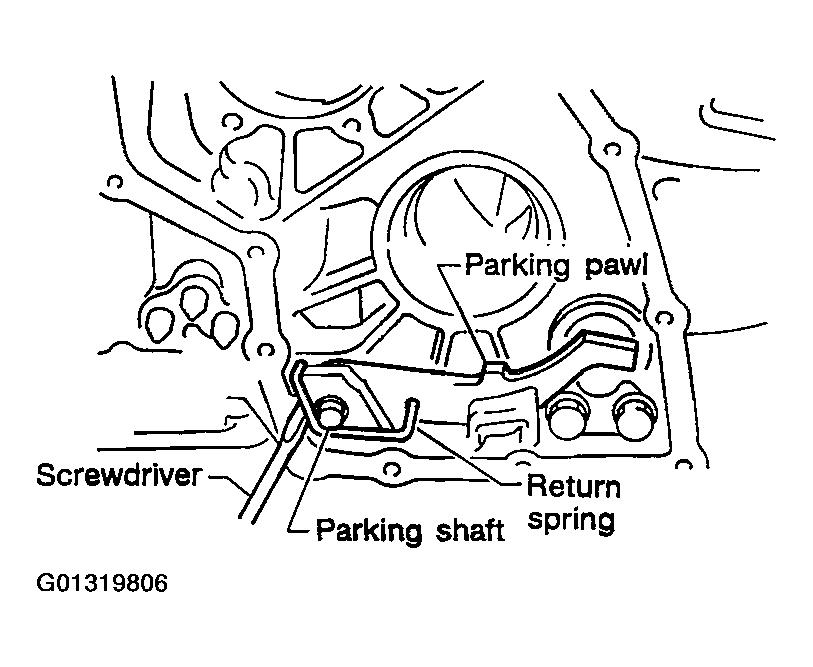

Fig 7: Installing Return Spring
