Control Valve Lower Body: Components

WARNING: This page is about a different variant/trim than selected.

Numbers preceding valve springs correspond with those shown in "CONTROL VALVE AND PLUG RETURN SPRINGS ".

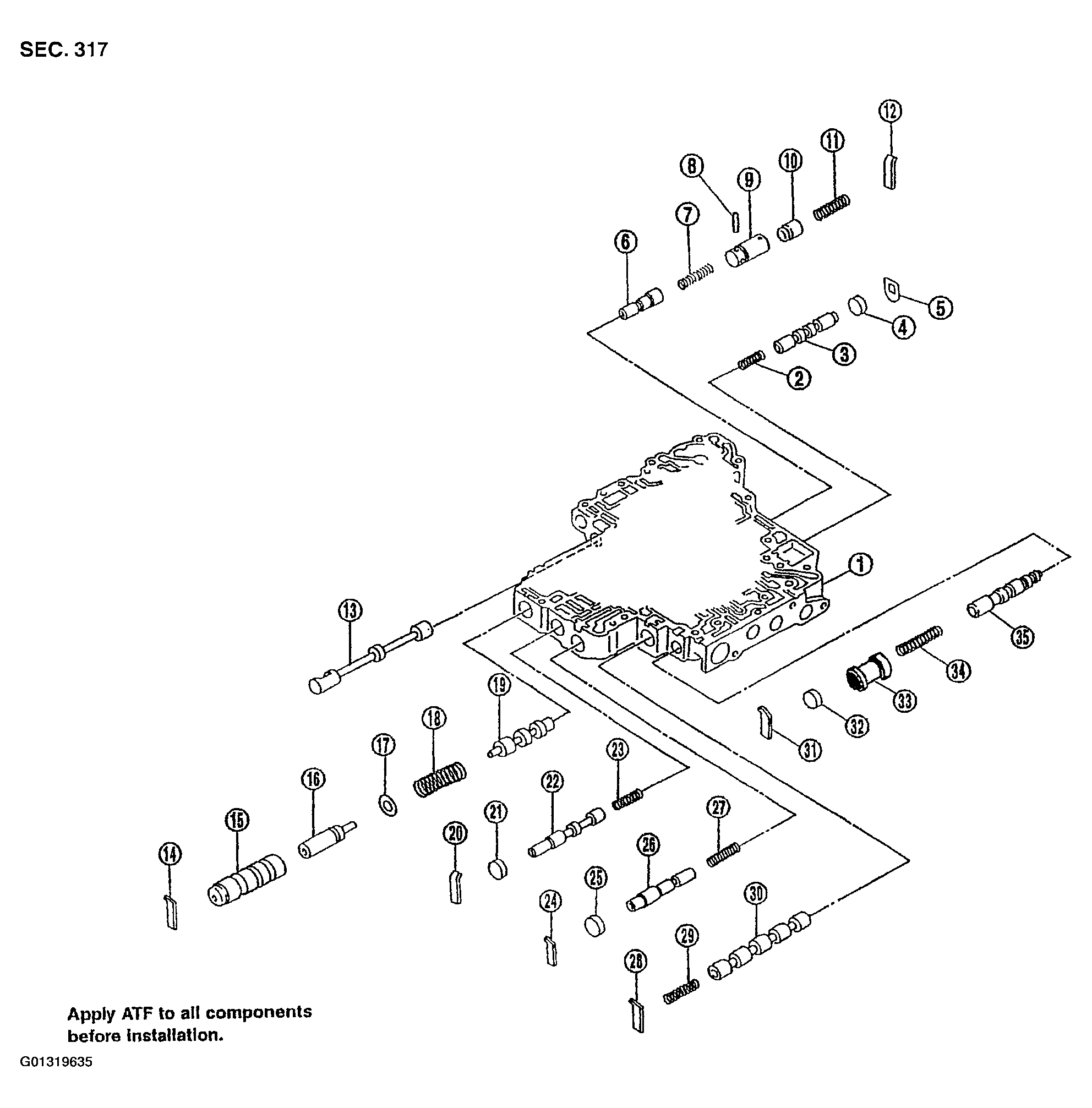

Fig 1: Exploded View Control Valve Lower Body

Courtesy of NISSAN MOTOR CO., U.S.A.
