Final Drive: Assembly

WARNING: This page is about a different variant/trim than selected.

Install side gear and thrust washers in differential case.
Install pinion mate gears and thrust washers in differential case while rotating them.
- When inserting, be careful not to damage pinion mate gear washers.
- Apply ATF to any parts.
Fig 1: Inserting Pinion Mate Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between side gear and differential case with washers using the following procedure.
1. Set Tool and dial indicator on side gear.
2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.
  Clearance between side gear and differential case with washers: 0.1 - 0.2 mm (0.004 - 0.008 in)

  Fig 2: Measuring Clearance By Dial Gauge
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. If not within specification adjust clearance by changing thickness of side gear thrust washers.
  Side gear thrust washer: Refer to "DIFFERENTIAL SIDE GEAR THRUST WASHERS ".

  Fig 3: Adjusting Clearance By Changing Thickness Of Side Gear Thrust Washers
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install lock pin.
- Make sure that lock pin is flush with case.
Fig 4: Installing Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install speedometer drive gear on differential case.
- Align the projection of speedometer drive gear with the groove of differential case.

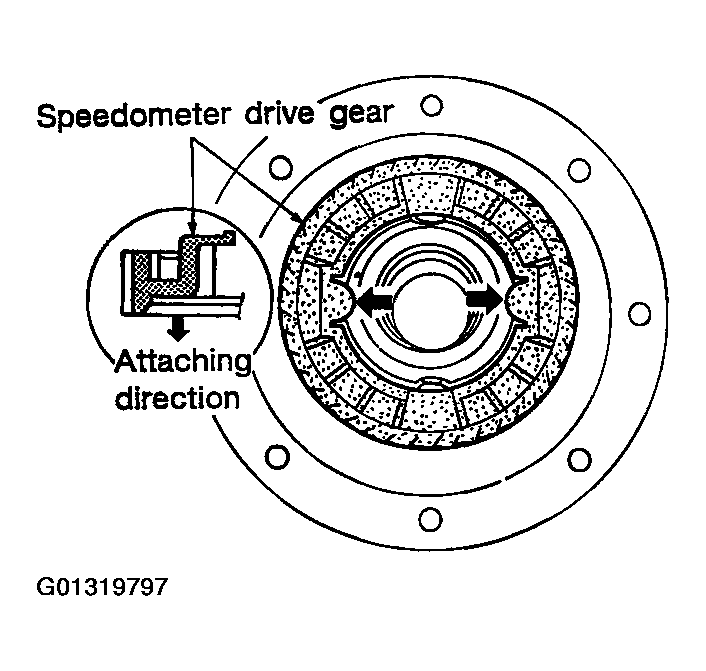

Fig 5: Locating Attaching Direction Of Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten fixing bolts in numerical order.
: 113 - 127 N.m (11.5 - 13.0 kg-m, 83 - 94 ft-lb)

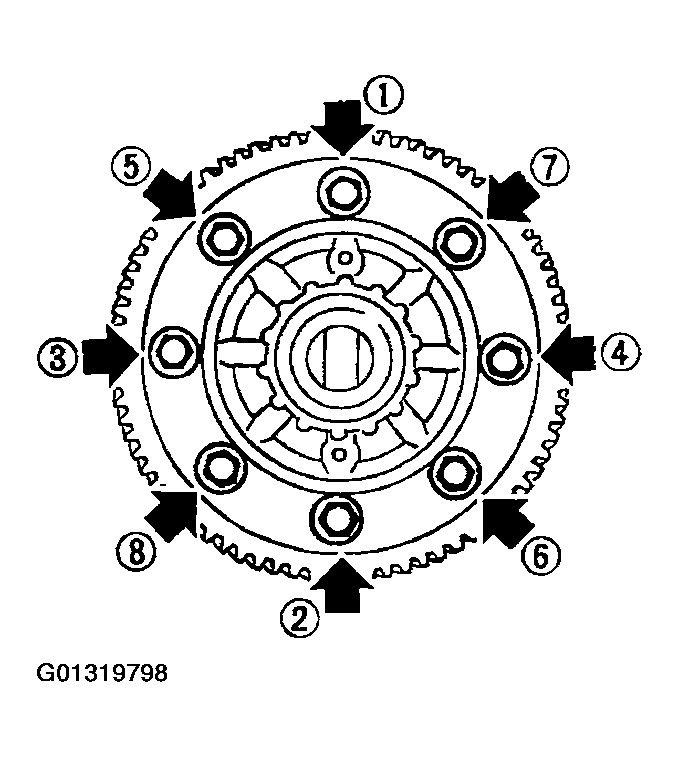

Fig 6: Identifying Tightening Order Of Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Press on differential side bearings.

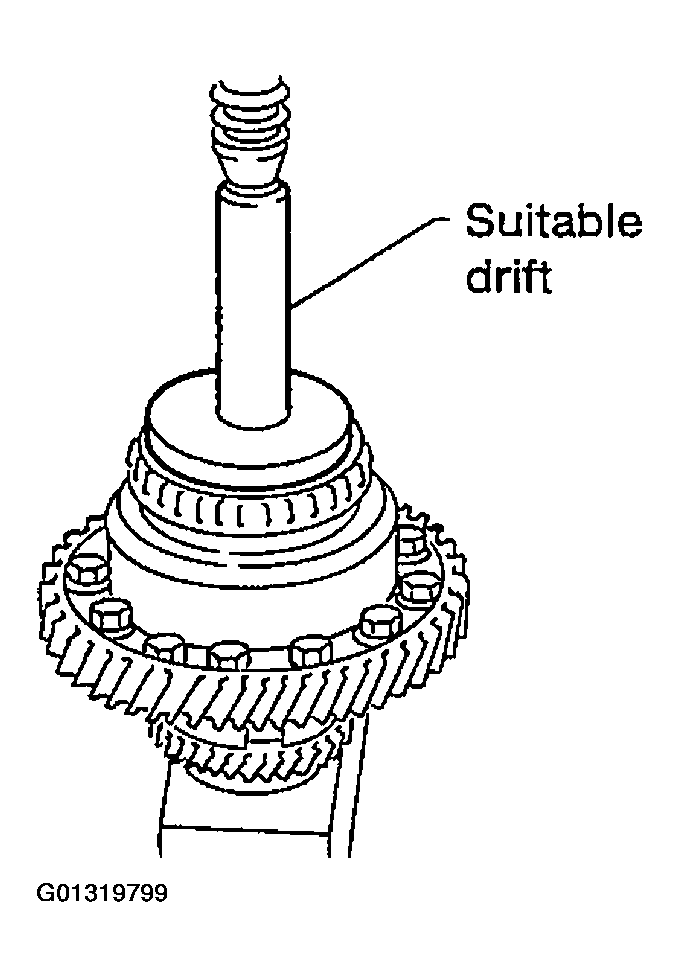

Fig 7: Pressing On Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
