Section 5 (Automatic Transaxle (Re4F03B))
›
Final Drive
›
Components
Final Drive: Components
WARNING:
This page is about a different variant/trim than selected.

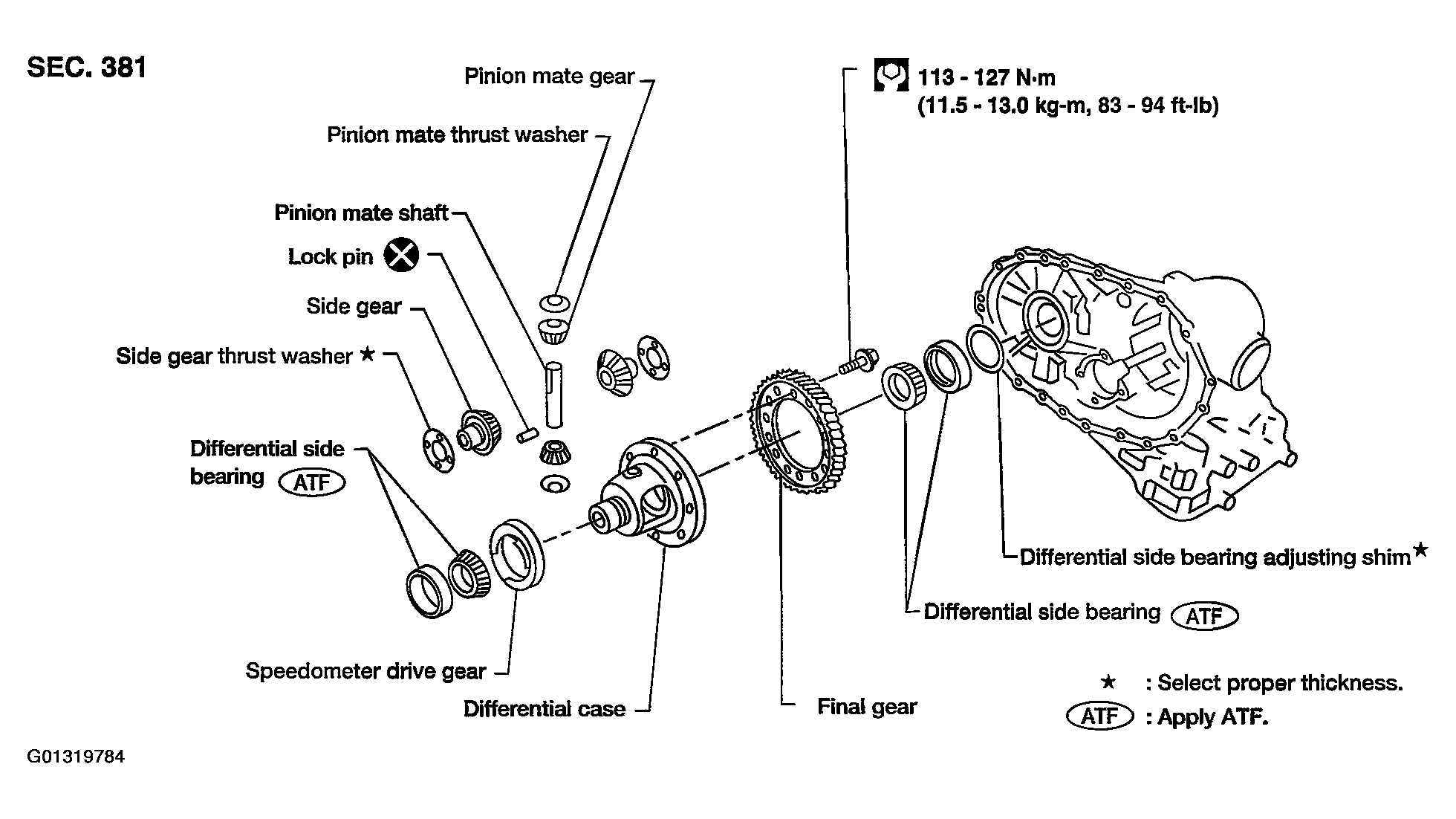

Fig 1: Identifying Final Drive Components
Courtesy of NISSAN MOTOR CO., U.S.A.
