High Clutch: Components

WARNING: This page is about a different variant/trim than selected.

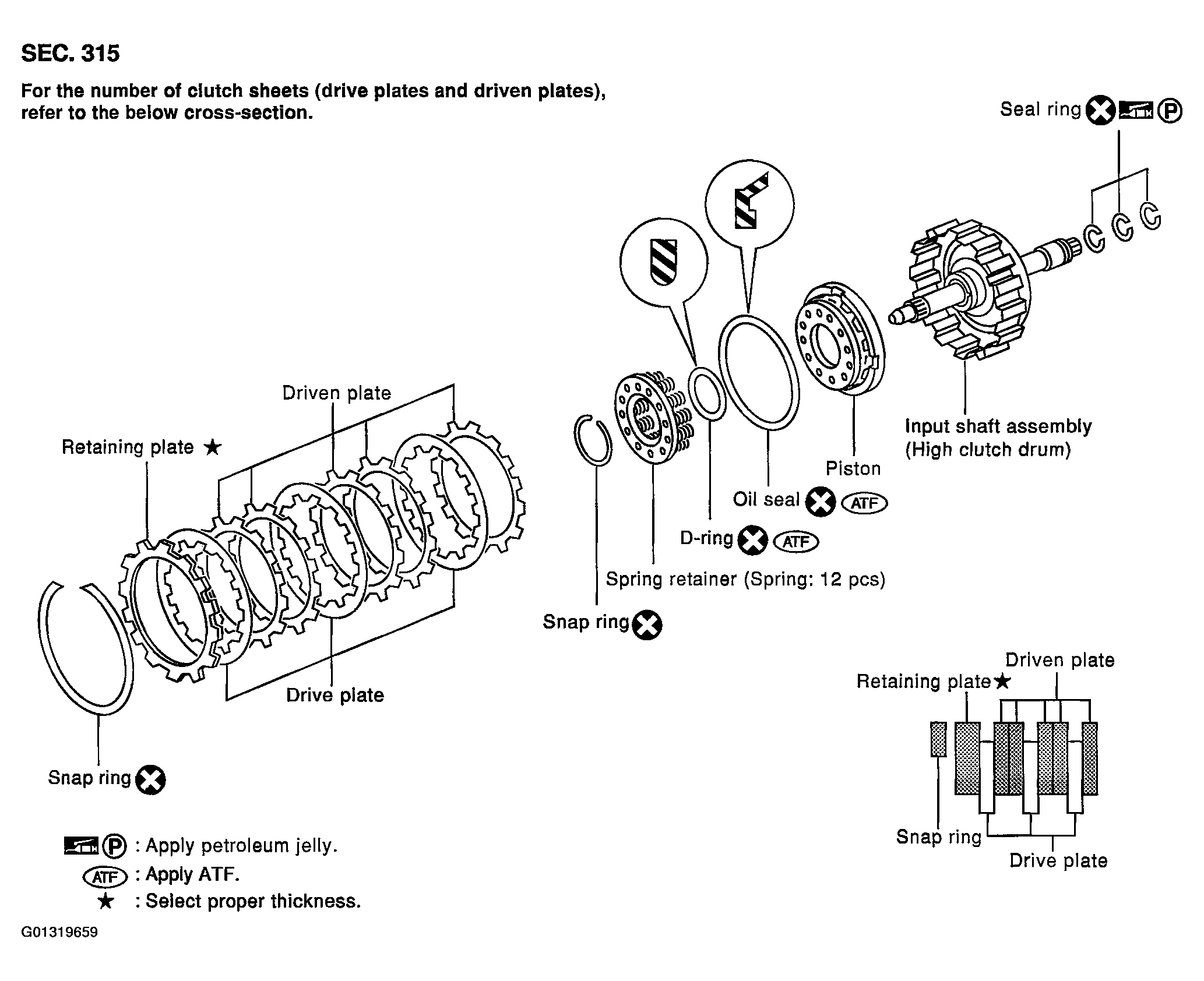

Fig 1: Exploded View High Clutch
G01319659Courtesy of NISSAN MOTOR CO., U.S.A.
