Function Of Control Valves

WARNING: This page is about a different variant/trim than selected.

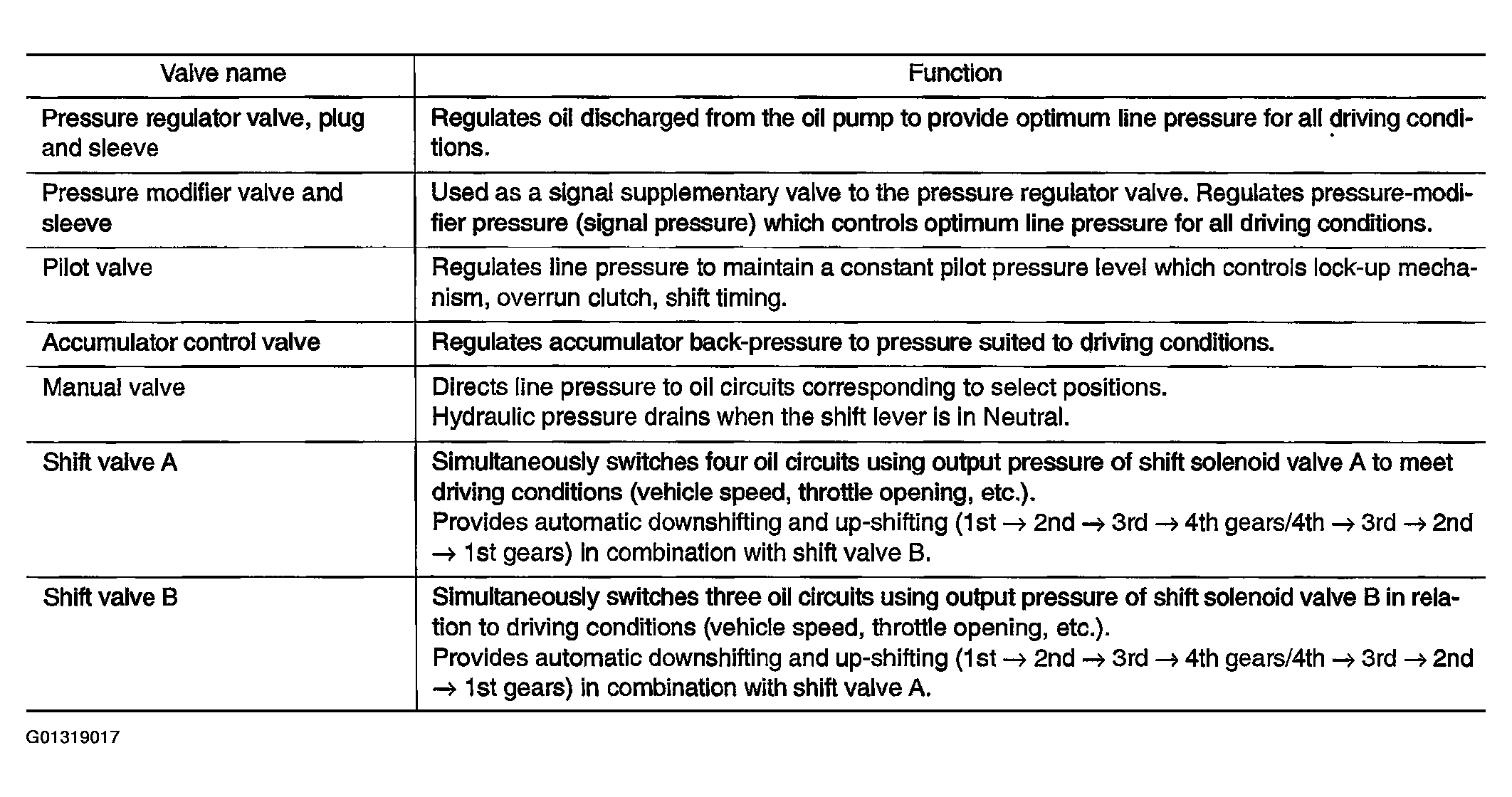

Fig 1: Function Of Control Valves (1 Of 2)
G01319017Courtesy of NISSAN MOTOR CO., U.S.A.

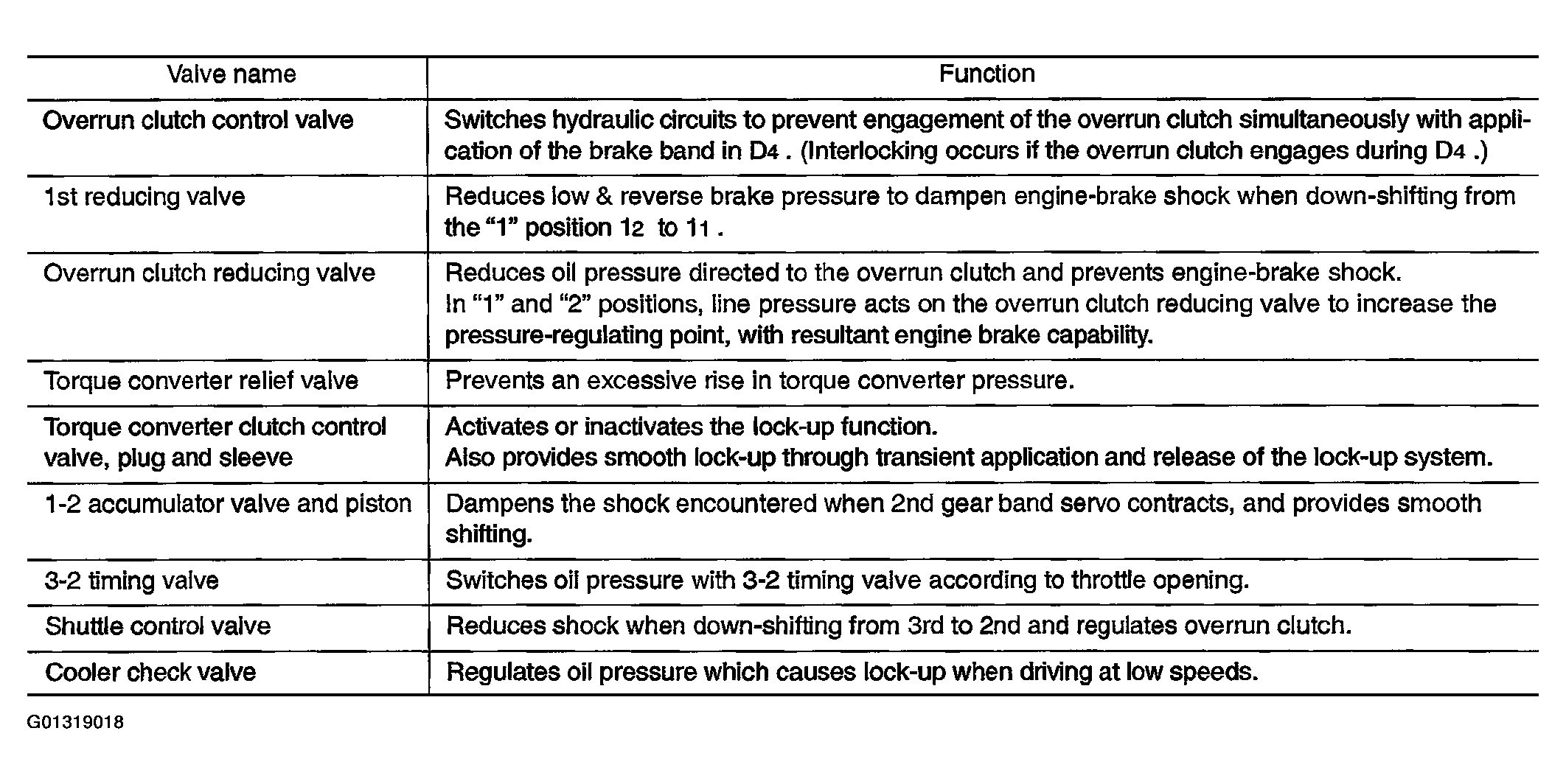

Fig 2: Function Of Control Valves (2 Of 2)
G01319018Courtesy of NISSAN MOTOR CO., U.S.A.
