Section 5 (Automatic Transaxle (Re4F03B)): Overhaul: Disassembly

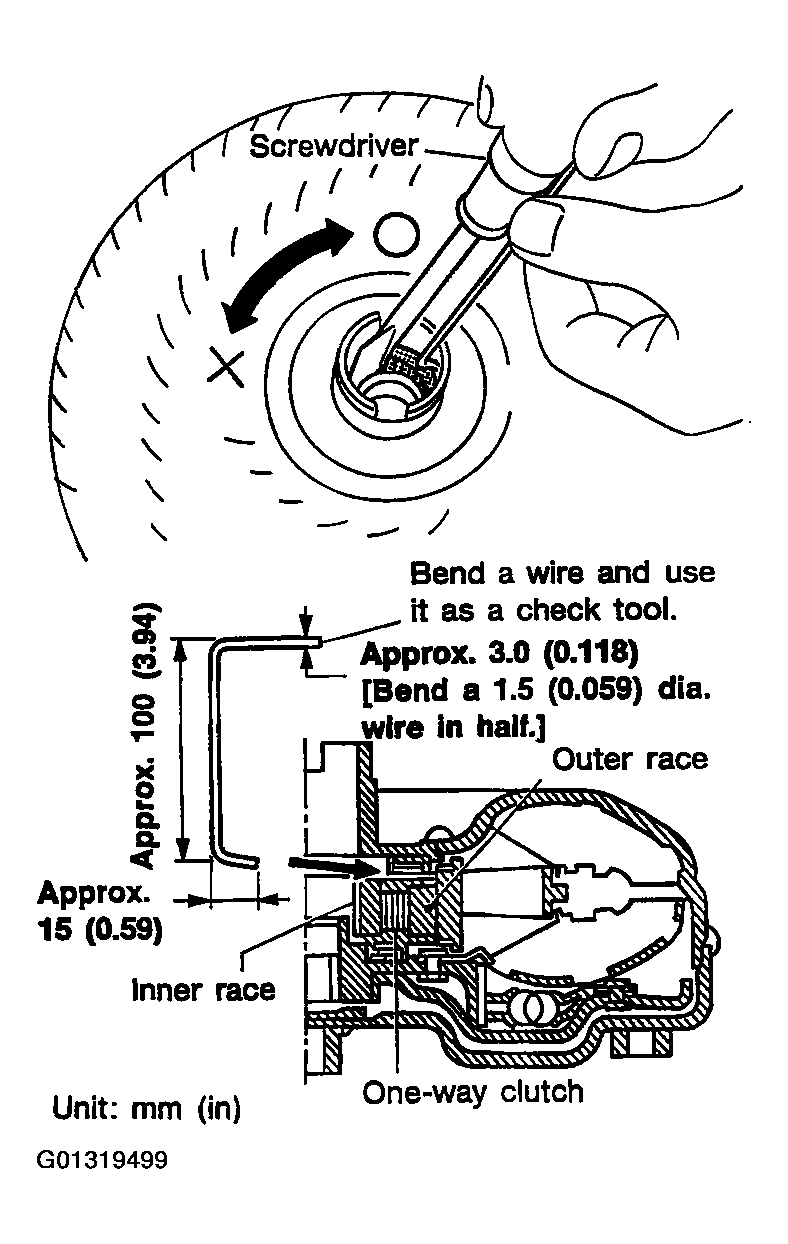

Fig 3: Checking Torque Converter One-Way Clutch Using Check Tool

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Insert check tool into the groove of bearing support built into one-way clutch outer race.
2. While fixing bearing support with check tool, rotate one-way clutch spline using flat-bladed screwdriver.
3. Check to make sure the inner race rotates clockwise only. If not, replace torque converter assembly.

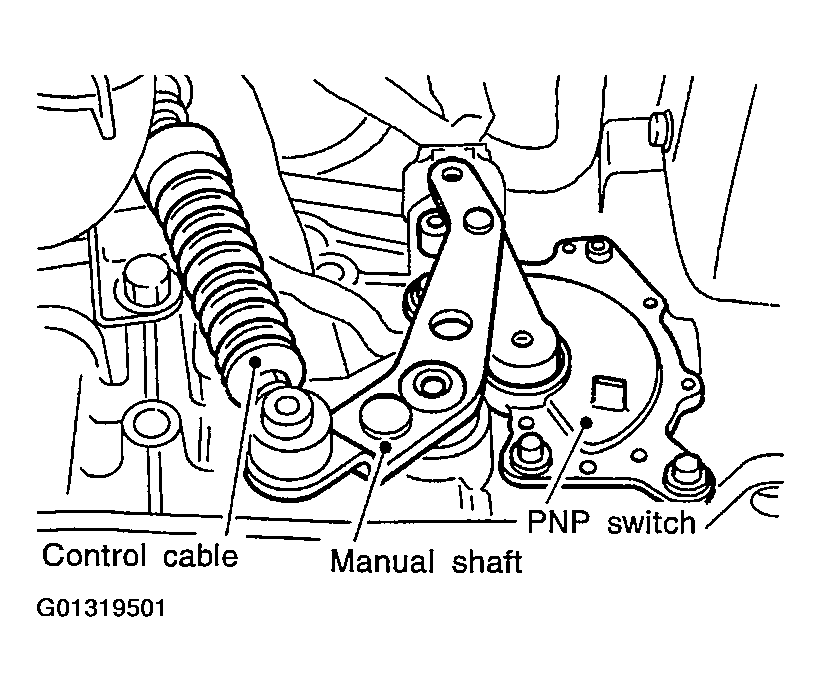

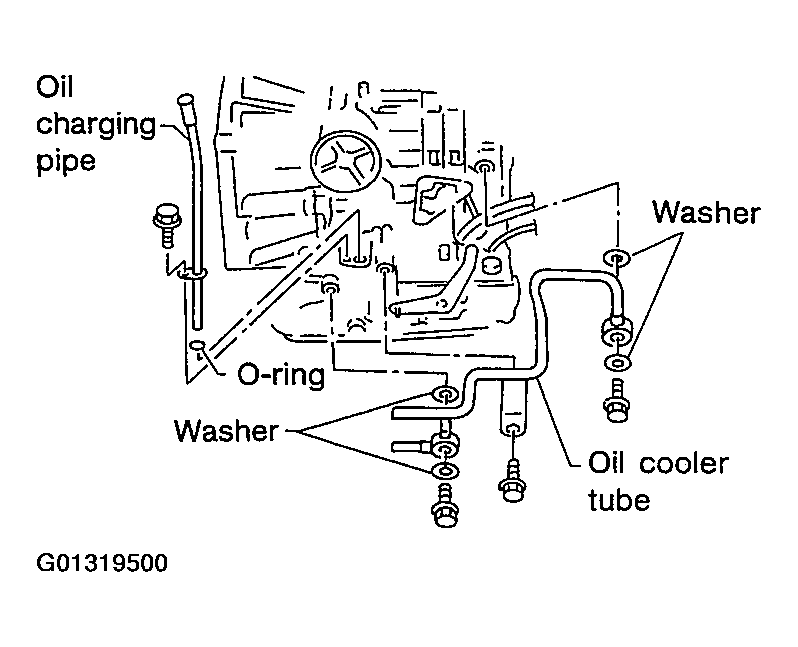

Fig 6: Identifying Oil Pan Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

• Always replace oil pan bolts as they are self-sealing bolts  .

• If frictional material is detected, replace radiator after repair of A/T. Refer to " REMOVAL AND INSTALLATION  "  .

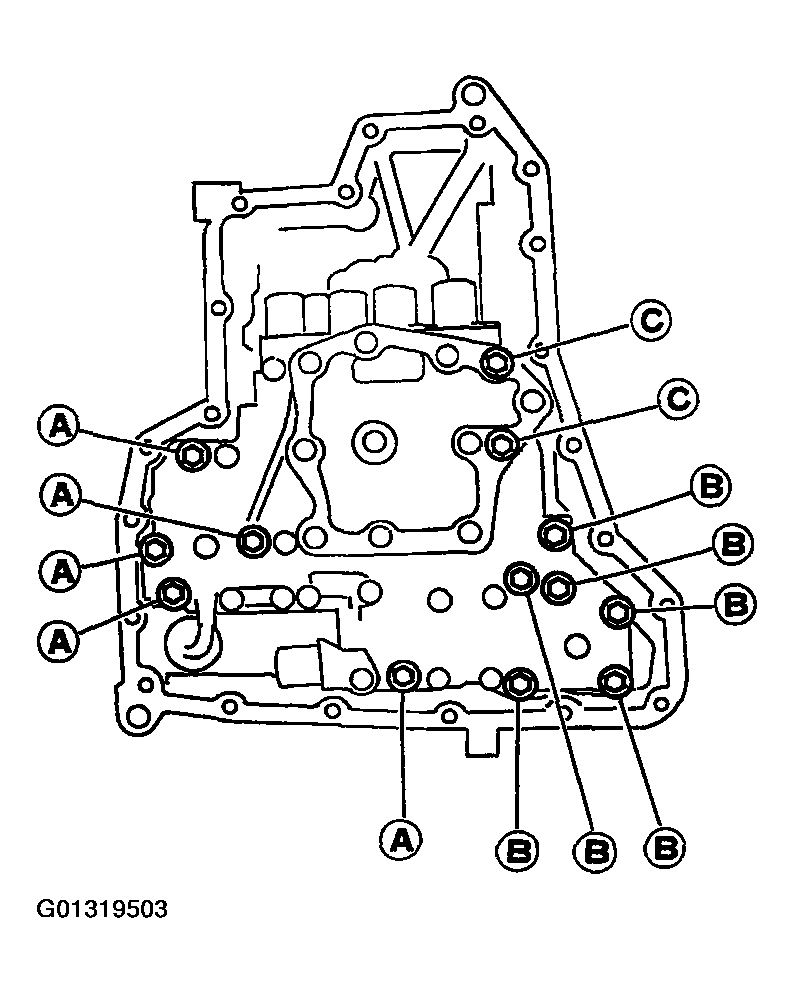

1. Remove control valve assembly mounting bolts A, B and C.
   Fig 7: Identifying Control Valve Assembly Mounting Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

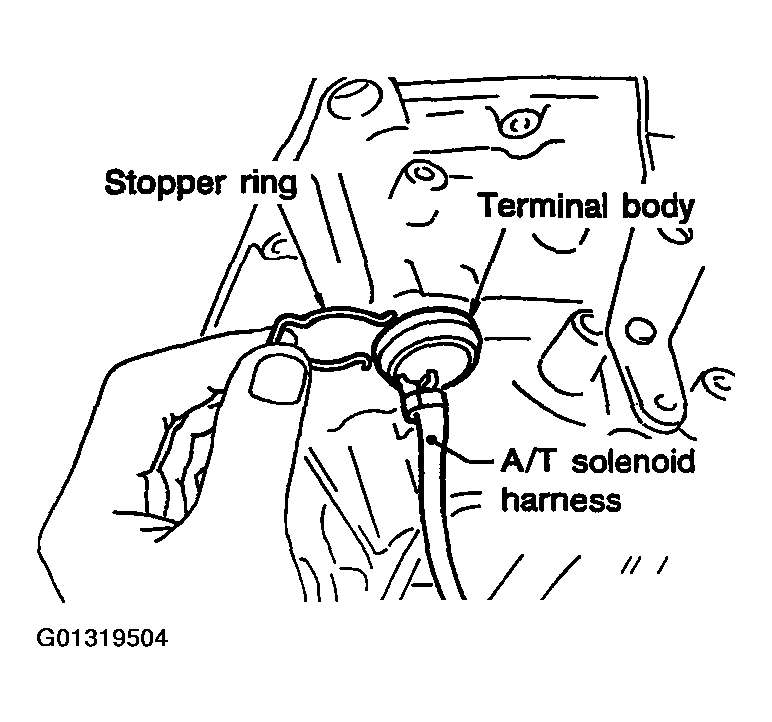

2. Remove stopper ring from terminal body.
Fig 8: Removing Stopper Ring From Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.
3. Push terminal body into transmission case and draw out solenoid harness.

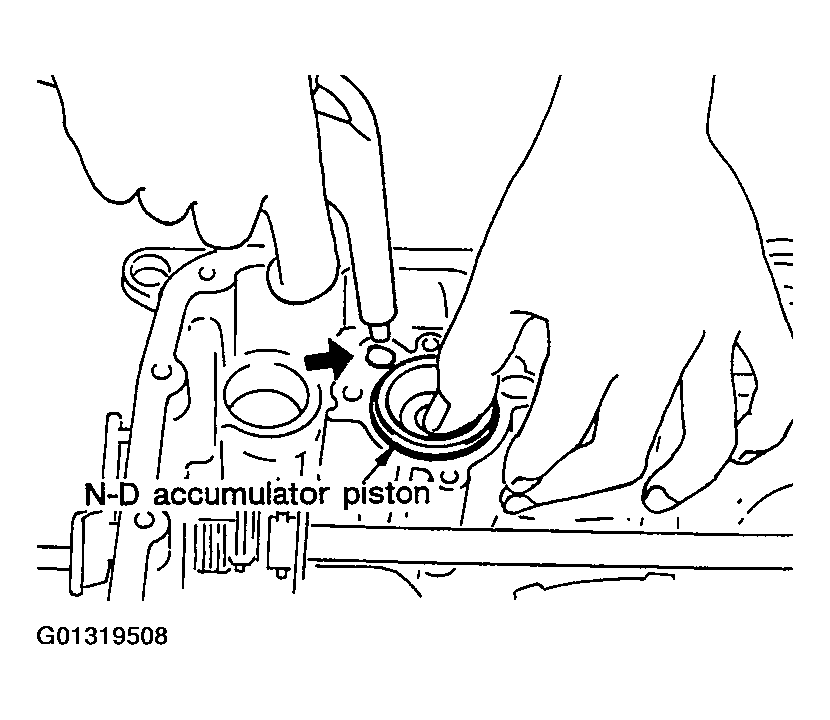

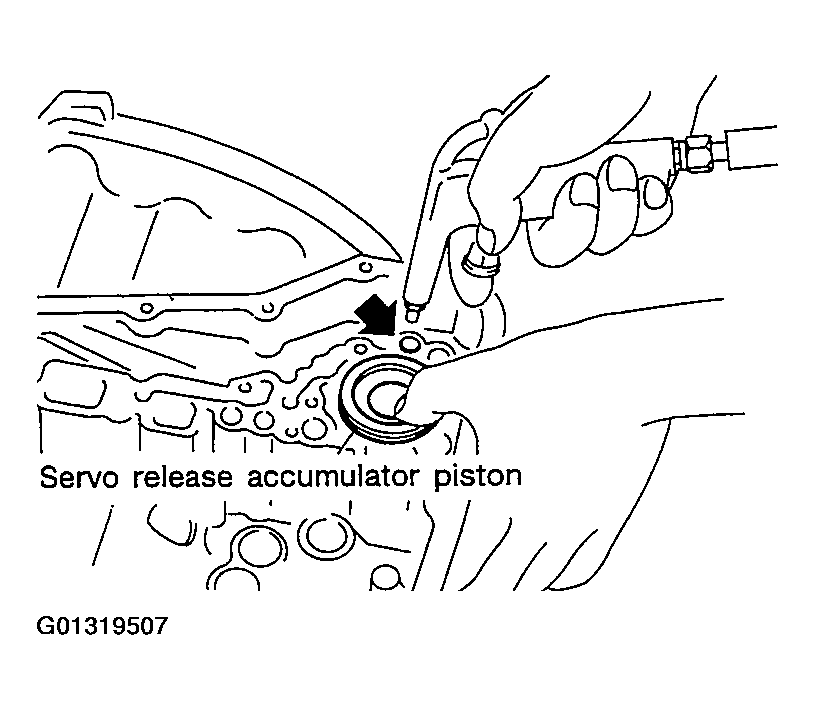

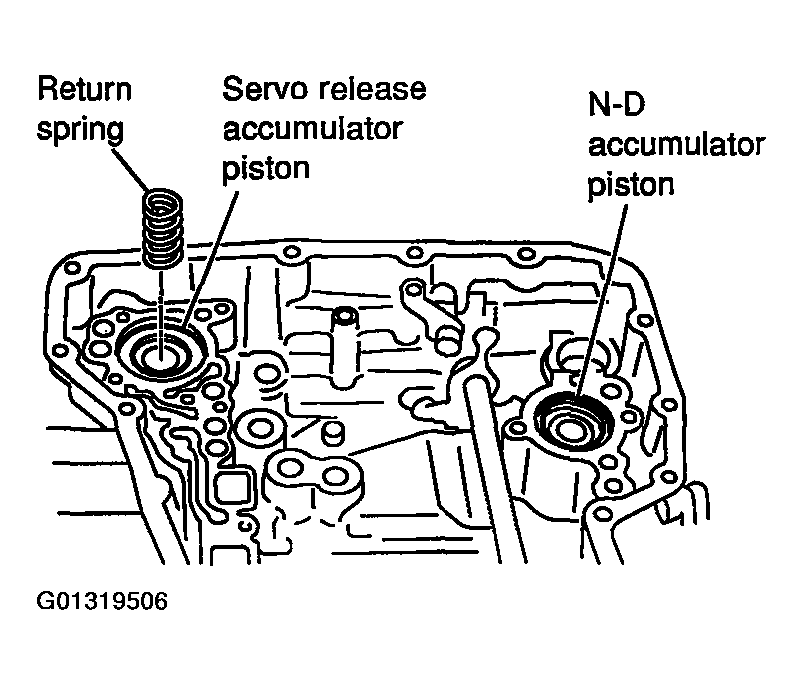

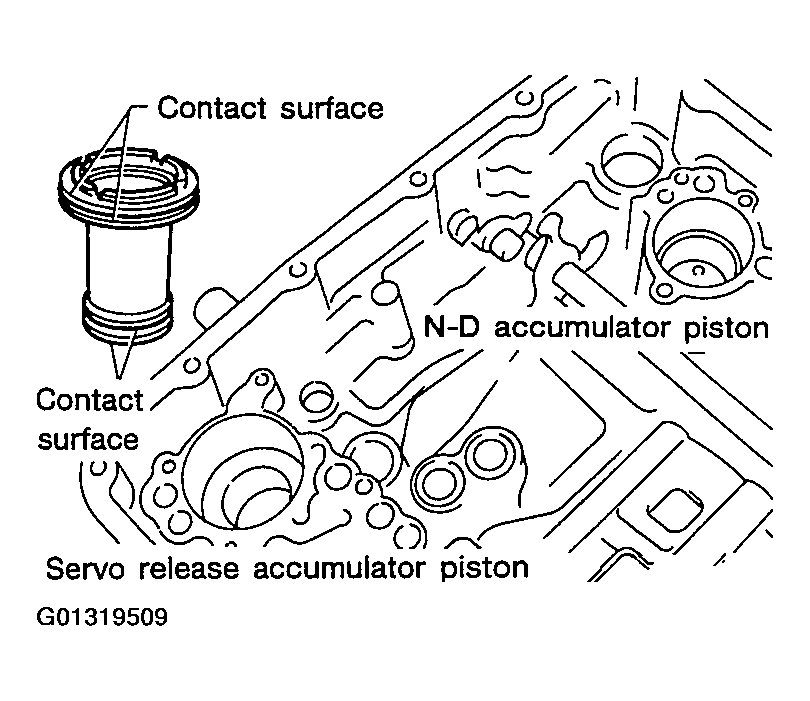

Return springs: Refer to " RETURN SPRING  "

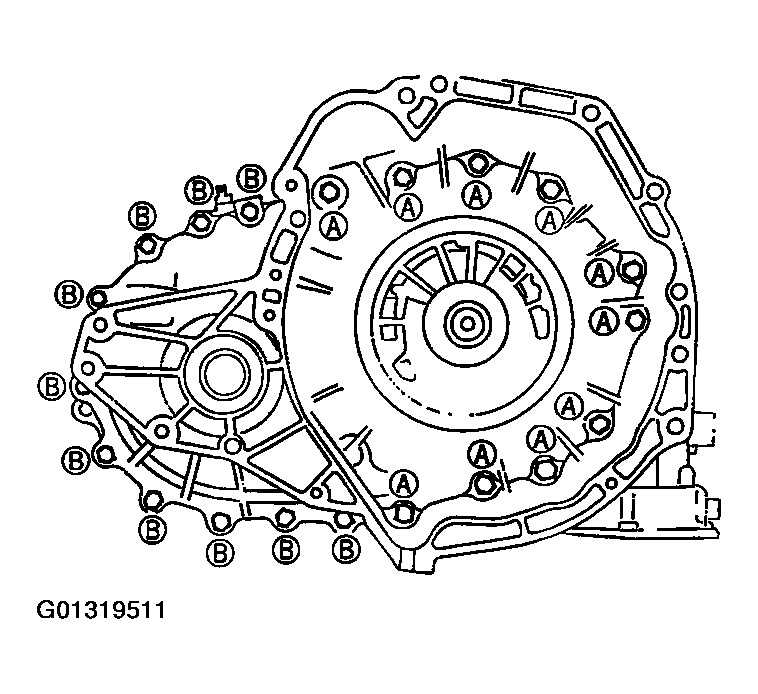

1. Remove converter housing mounting bolts A and B.
   Fig 15: Identifying Converter Housing Mounting Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

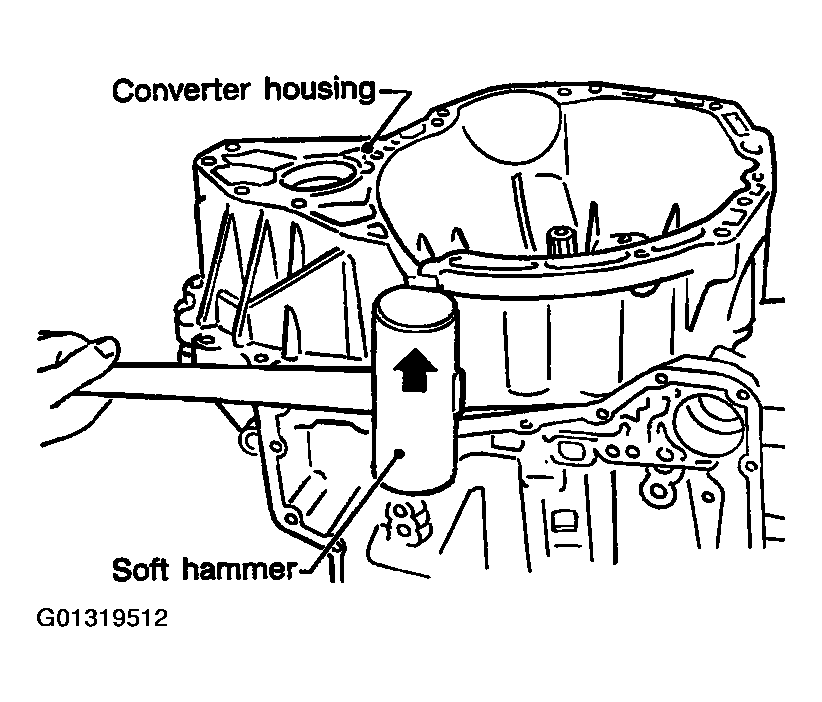

2. Remove converter housing.
   Fig 16: Removing Converter Housing

   Courtesy of NISSAN MOTOR CO., U.S.A.

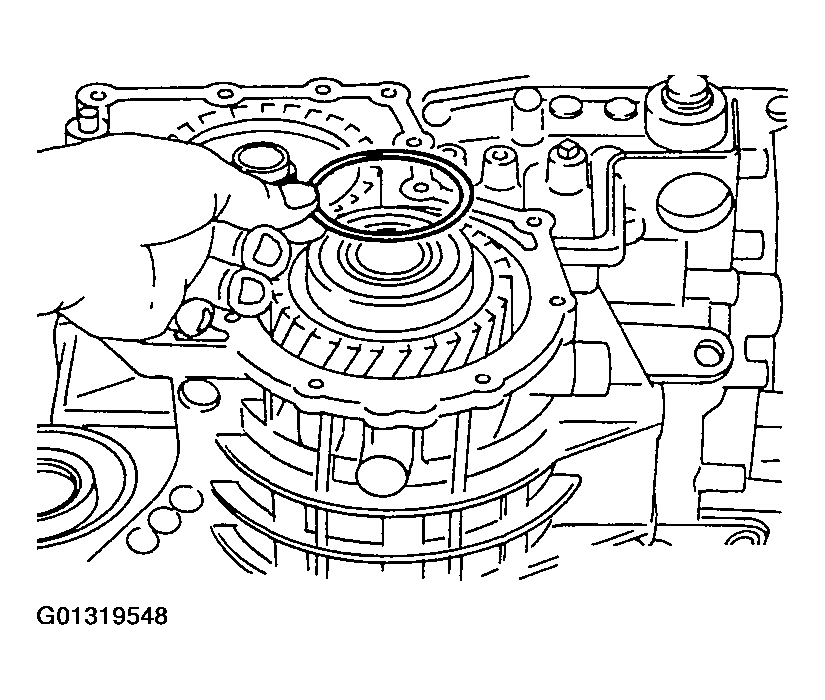

3. Remove O-ring from differential oil port.

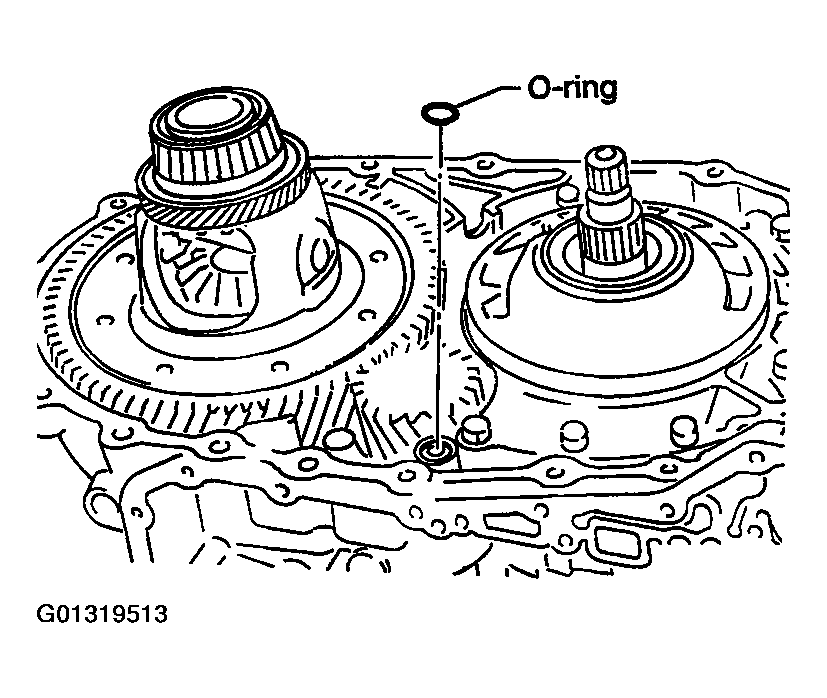

Fig 17: Removing O-Ring From Differential Oil Port

Courtesy of NISSAN MOTOR CO., U.S.A.

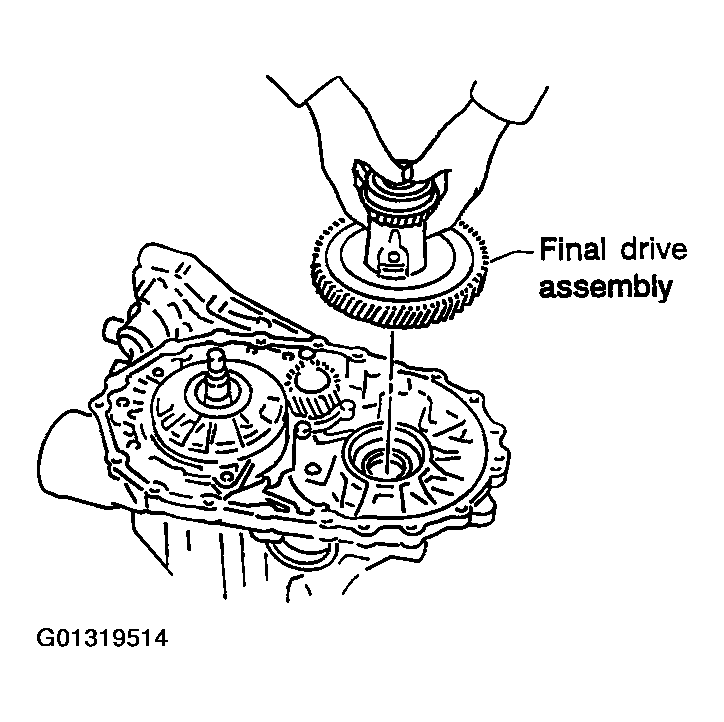

• Be careful not to damage case  .

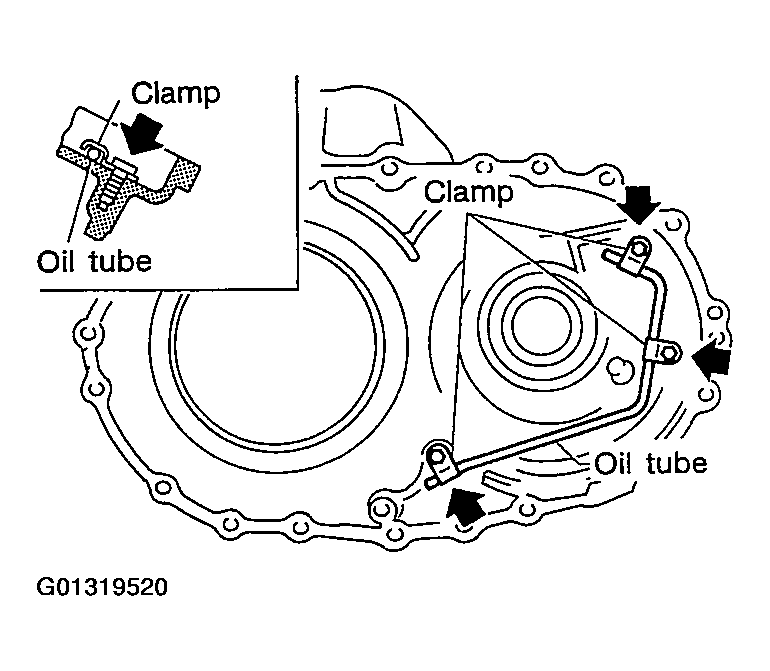

Fig 22: Removing Oil Seal From Converter Housing

Courtesy of NISSAN MOTOR CO., U.S.A.

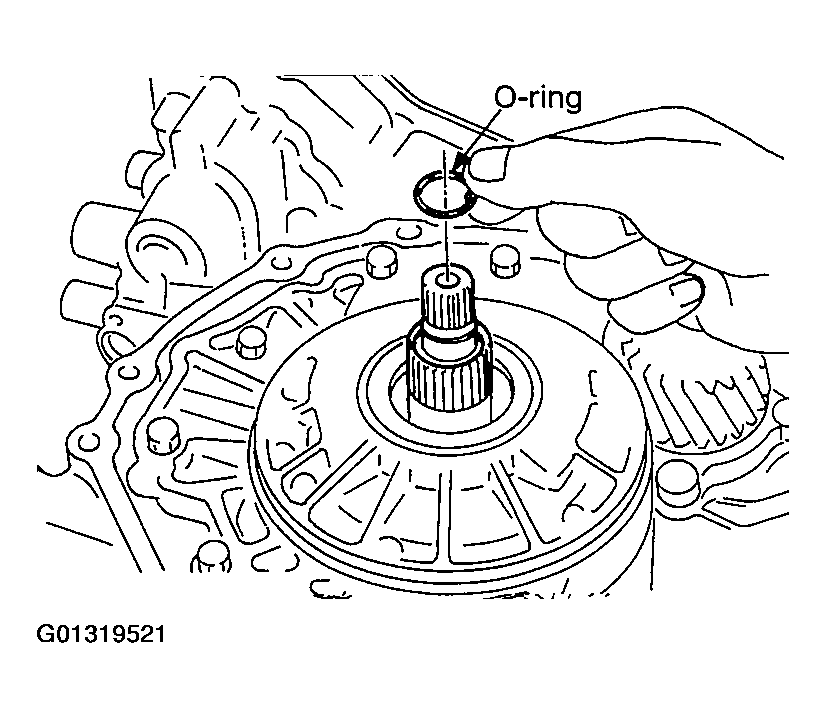

1. Remove O-ring from input shaft.
   Fig 25: Removing O-Ring From Input Shaft

   Courtesy of NISSAN MOTOR CO., U.S.A.

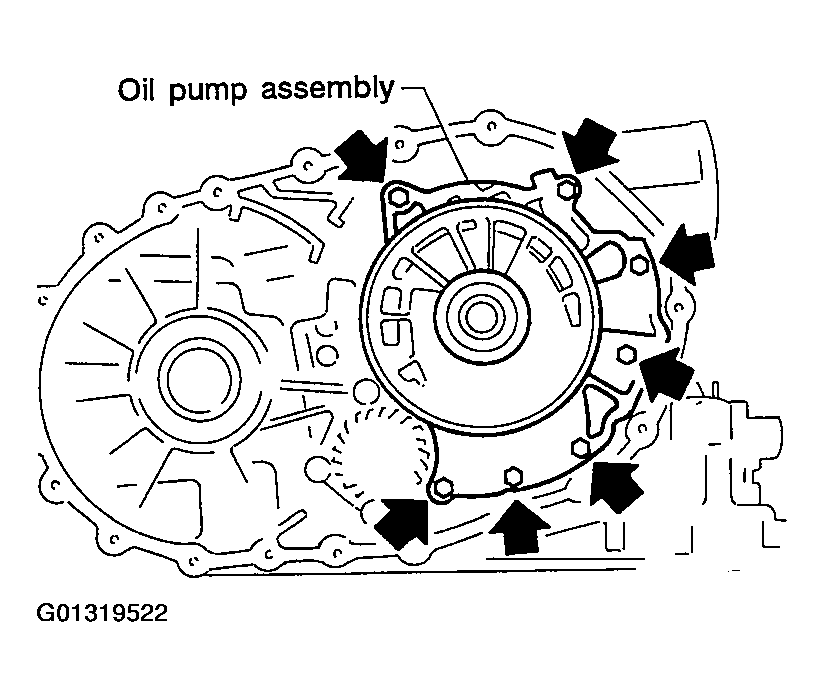

2. Remove oil pump assembly from transmission case.
   Fig 26: Removing Oil Pump Assembly From Transmission Case

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove thrust washer and bearing race from oil pump assembly.

Fig 27: Removing Thrust Washer And Bearing Race From Oil Pump Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

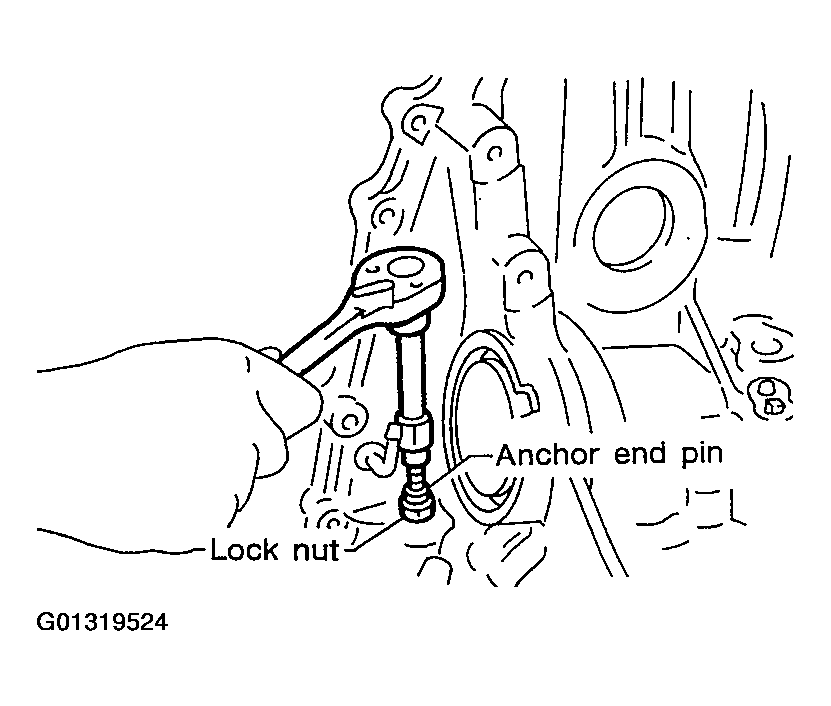

1. Loosen lock nut, then back off anchor end pin.
   • Do not reuse anchor end pin  .
   Fig 28: Loosening Lock Nut And Back Off Anchor End Pin

   Courtesy of NISSAN MOTOR CO., U.S.A.

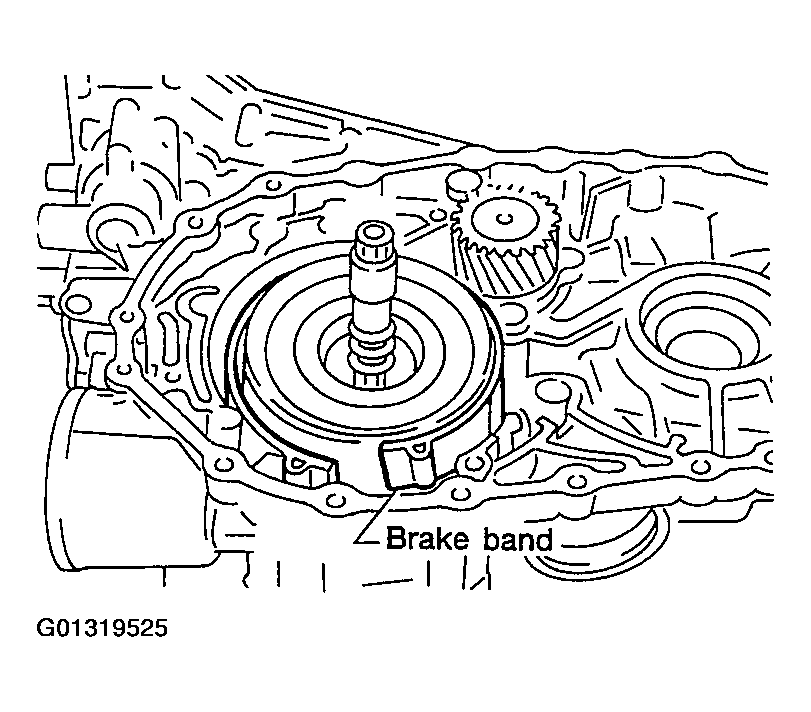

2. Remove brake band from transmission case.
   Fig 29: Removing Brake Band From Transmission Case

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown. Leave the clip in position after removing the brake band.
   Fig 30: Identifying Dimension Of Brake Band

   Courtesy of NISSAN MOTOR CO., U.S.A.

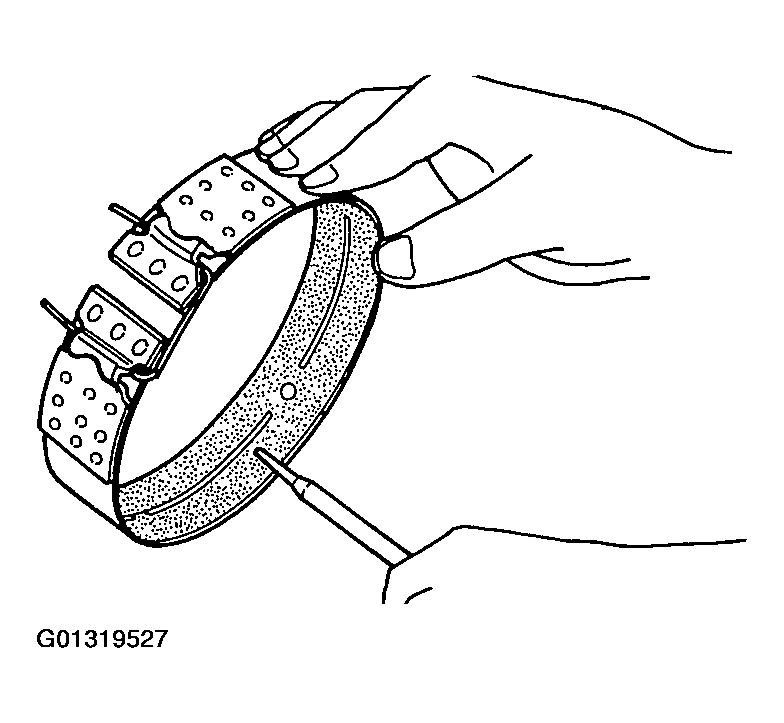

3. Check brake band facing for damage, cracks, wear or burns.

Fig 31: Checking Brake Band Facing For Damage, Cracks, Wear Or Burns

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 32: Removing Input Shaft Assembly (High Clutch) And Reverse Clutch

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove input shaft assembly (high clutch) with reverse clutch.
2. Remove input shaft assembly (high clutch) from reverse clutch.
   Fig 33: Removing Input Shaft Assembly (High Clutch) From Reverse Clutch

   Courtesy of NISSAN MOTOR CO., U.S.A.

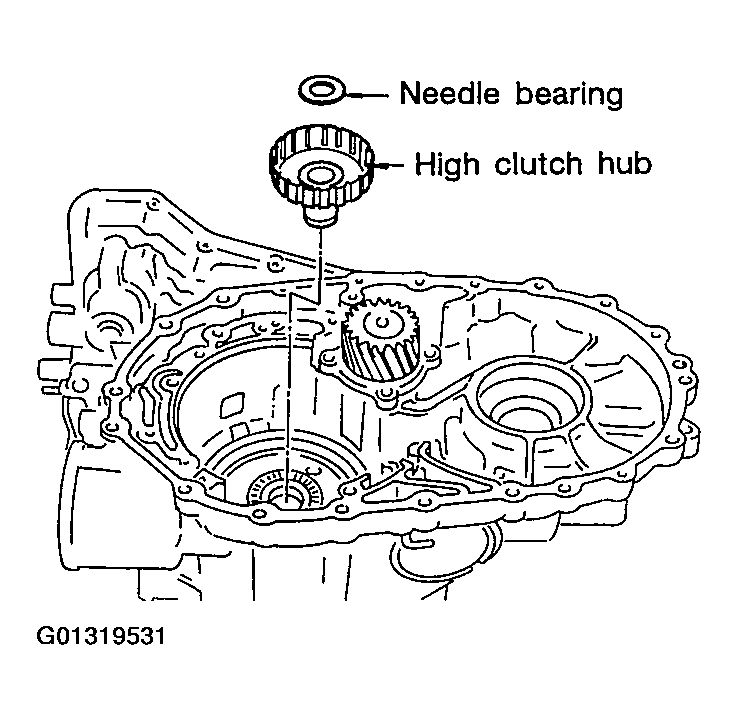

3. Remove needle bearing from high clutch drum.
Fig 34: Removing Needle Bearing From High Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check input shaft assembly and needle bearing for damage or wear.

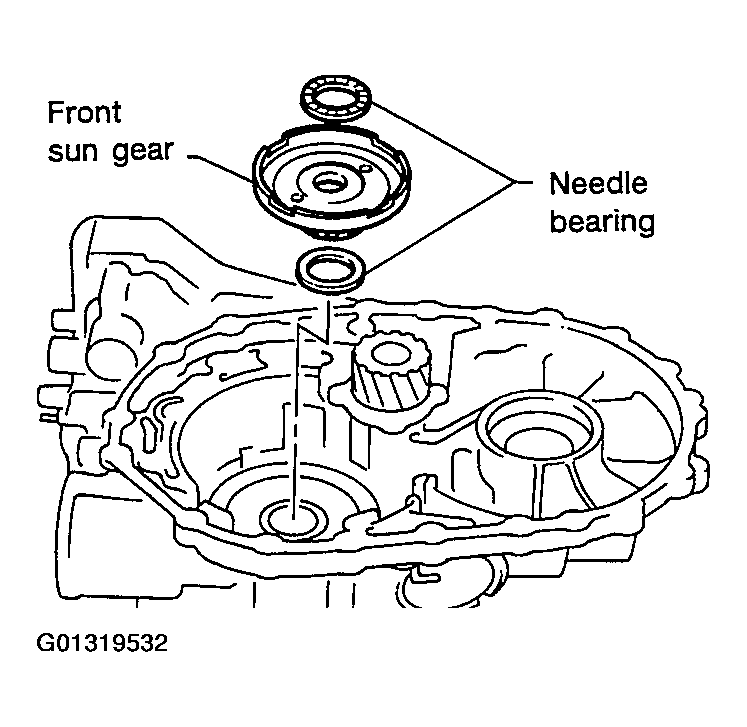

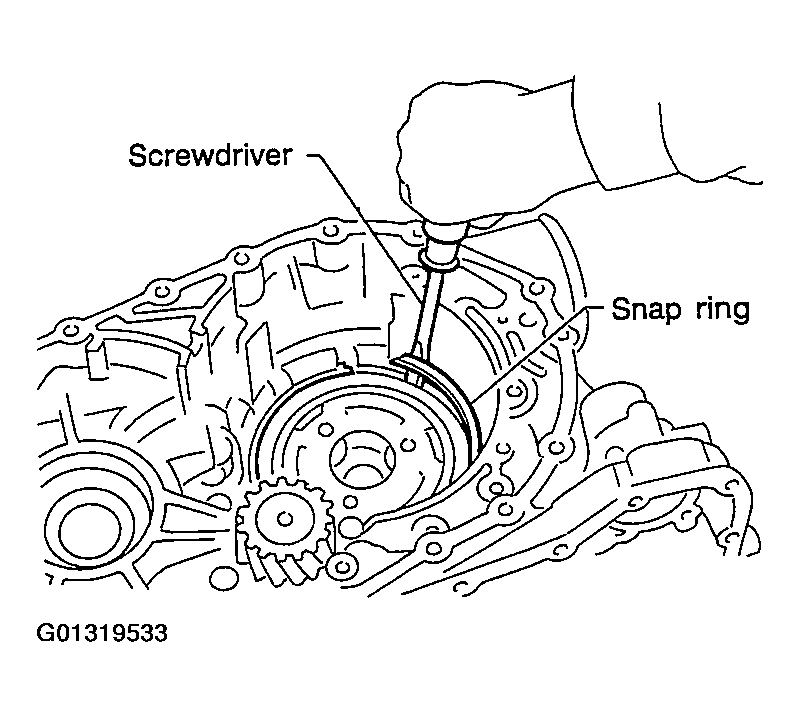

1. Remove snap ring using a screwdriver.
   Fig 37: Removing Snap Ring

   Courtesy of NISSAN MOTOR CO., U.S.A.

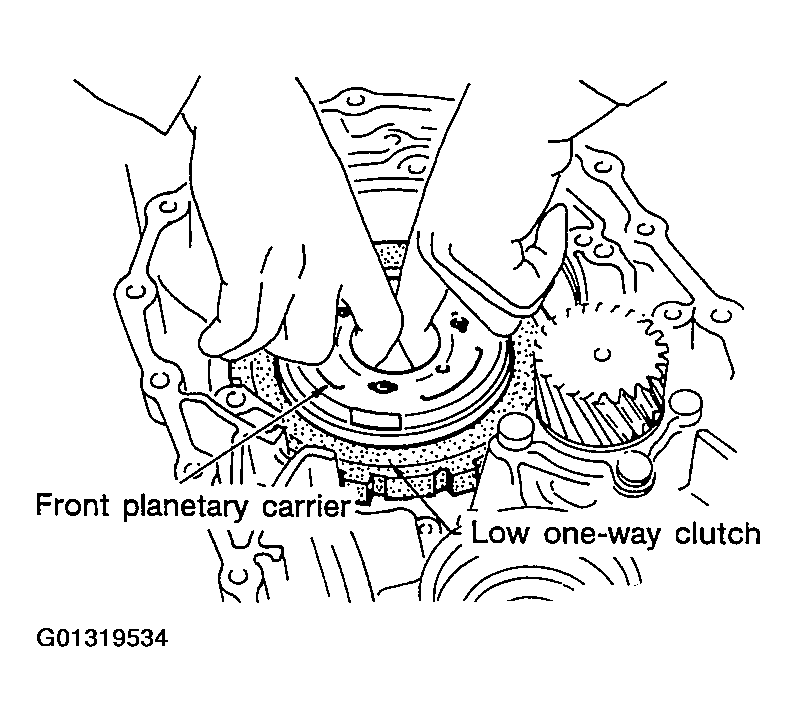

2. Remove front planetary carrier with low one-way clutch.
   Fig 38: Removing Front Planetary Carrier With Low One-Way Clutch

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check that low one-way clutch rotates in the direction of the arrow and locks in the opposite direction.
   Fig 39: Checking Low One-Way Clutch Rotates In Direction Of Arrow And Locks In Opposite Direction

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove low one-way clutch from front planetary carrier by rotating it in the direction of unlock.
Fig 40: Removing Low One-Way Clutch From Front Planetary Carrier
Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove needle bearing from front planetary carrier.
6. Check front planetary carrier, low one-way clutch and needle bearing for damage or wear.
7. Check clearance between pinion washer and planetary carrier using feeler gauge.

   Standard clearance: 0.15 - 0.70 mm (0.0059 - 0.0276 in)

   Allowable limit: 0.80 mm (0.0315 in)

   Replace front planetary carrier if the clearance exceeds allowable limit.

Fig 41: Checking Clearance Between Pinion Washer And Planetary Carrier

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 42: Removing Rear Planetary Carrier Assembly And Rear Sun Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

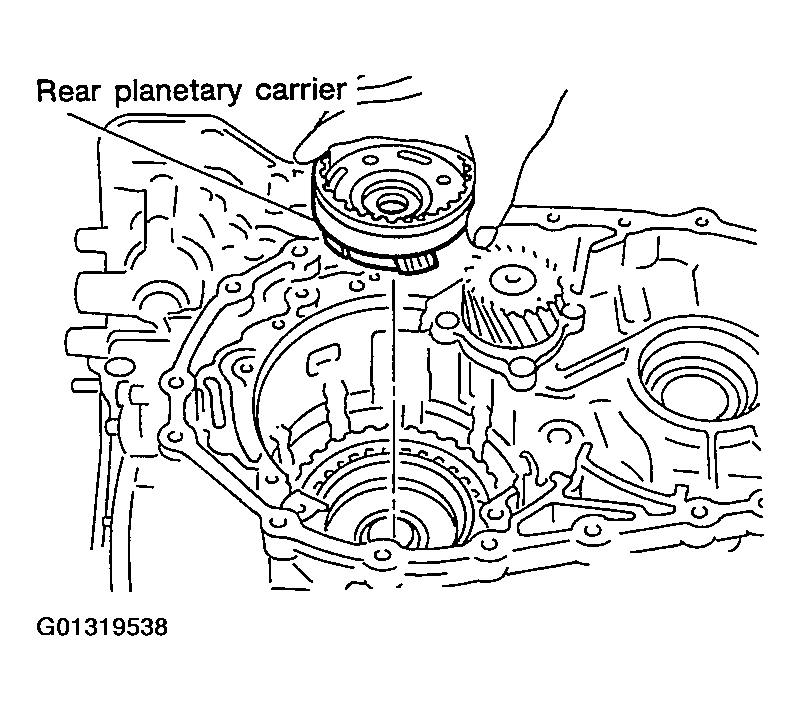

1. Remove rear planetary carrier assembly from transmission case.

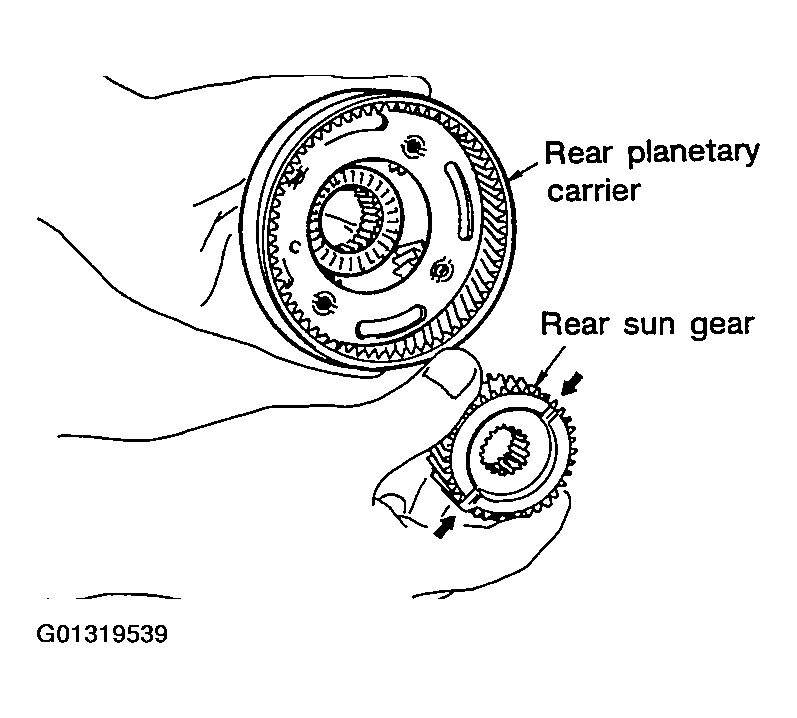

2. Remove rear sun gear from rear planetary carrier.
   Fig 43: Removing Rear Sun Gear From Rear Planetary Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove needle bearings from rear planetary carrier assembly.
   Fig 44: Removing Needle Bearings From Rear Planetary Carrier Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check rear planetary carrier, rear sun gear and needle bearings for damage or wear.
5. Check clearance between pinion washer and rear planetary carrier using feeler gauge.

   Standard clearance: 0.15 - 0.70 mm (0.0059 - 0.0276 in)

   Allowable limit: 0.80 mm (0.0315 in)

   Replace rear planetary carrier if the clearance exceeds allowable limit.

Fig 45: Checking Clearance Between Pinion Washer And Rear Planetary Carrier

Courtesy of NISSAN MOTOR CO., U.S.A.

• Check needle bearing for damage or wear.

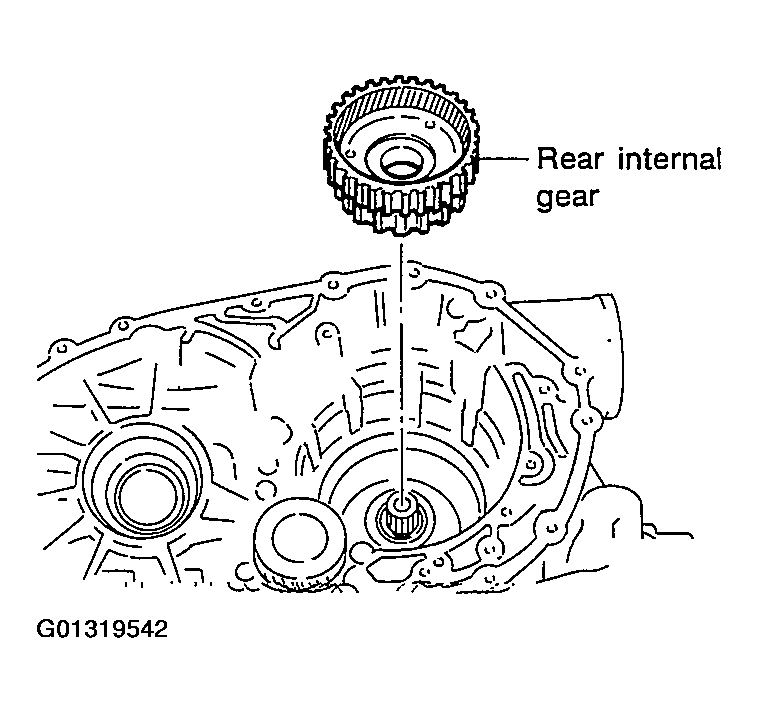

Fig 47: Removing Needle Bearing From Rear Internal Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

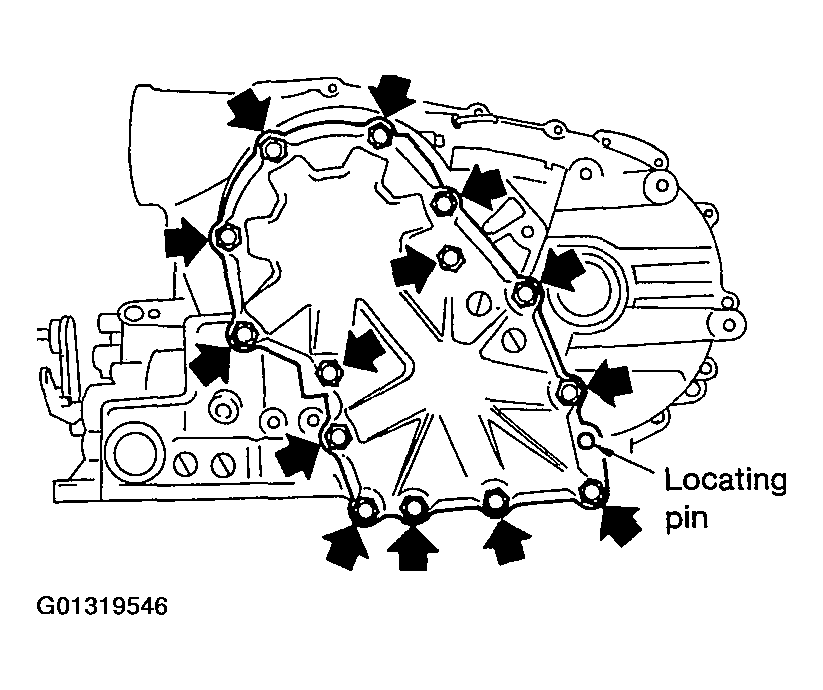

1. Remove side cover bolts.
Fig 50: Identifying Nuts Of Output Shaft Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

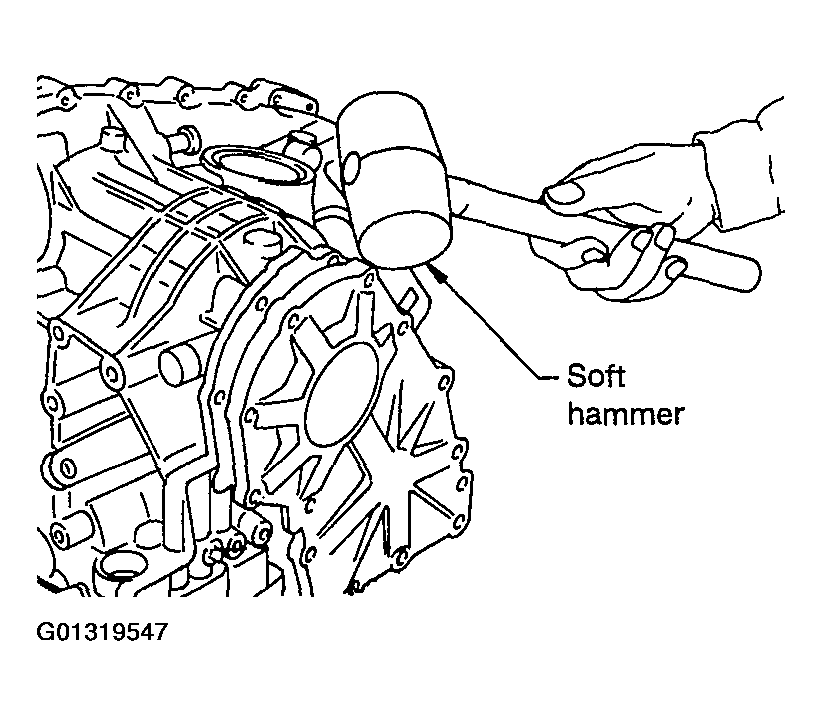

2. Remove side cover by lightly tapping it with a soft hammer.
   Fig 51: Removing Side Cover By Lightly Tapping It With A Soft Hammer

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to drop output shaft assembly. It might come out when removing side cover  .

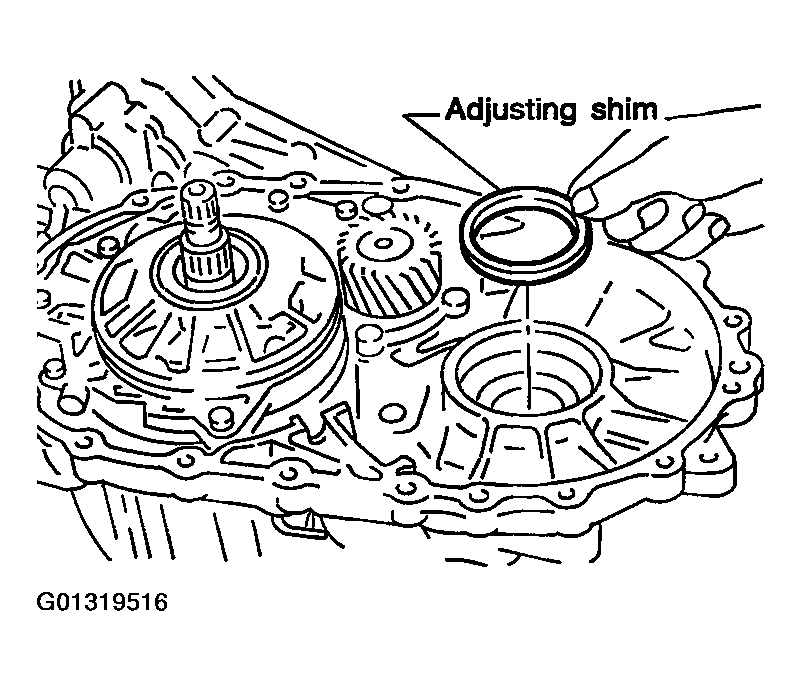

3. Remove adjusting shim.
   Fig 52: Removing Adjusting Shim

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove output shaft assembly.
   Fig 53: Removing Output Shaft Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • If output shaft assembly came off with side cover, tap cover with a soft hammer to separate.
   Fig 54: Taping Cover With A Soft Hammer

   Courtesy of NISSAN MOTOR CO., U.S.A.

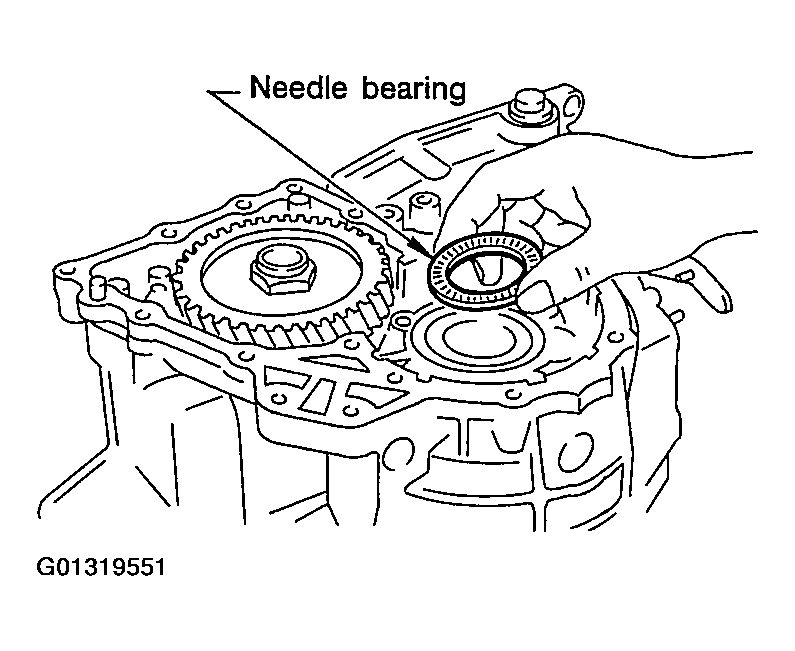

5. Remove needle bearing.

Fig 55: Removing Needle Bearing

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 56: Disassembling Reduction Pinion Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

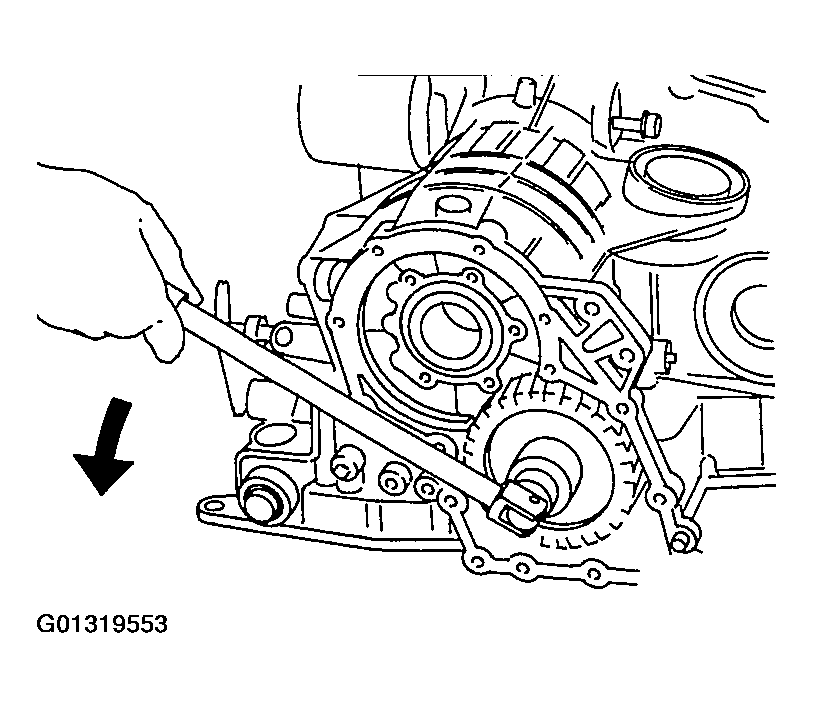

1. Set manual shaft to position "P" to fix idler gear.

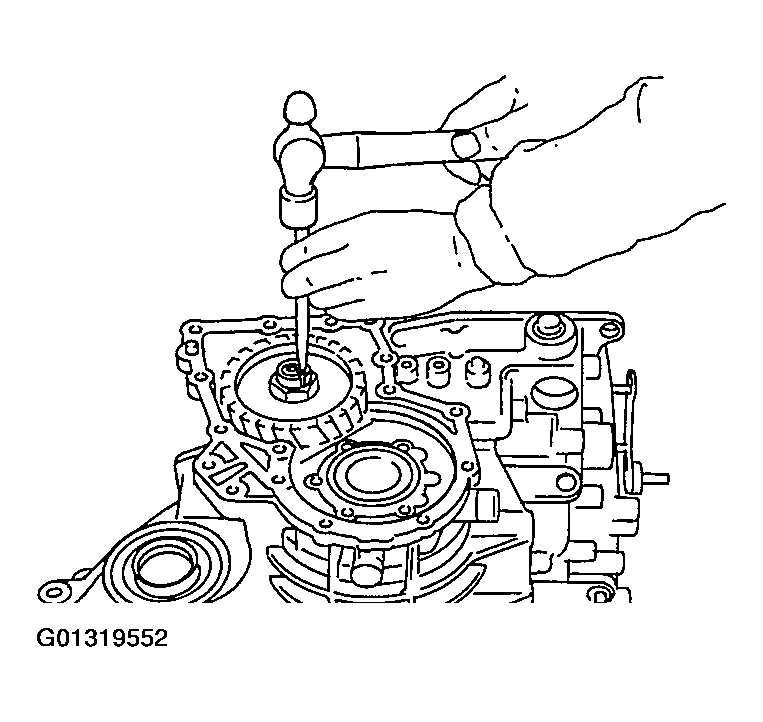

2. Unlock idler gear lock nut using a pin punch.
3. Remove idler gear lock nut.
   • Do not reuse idler gear lock nut  .
   Fig 57: Unlocking Idler Gear Lock Nut

   Courtesy of NISSAN MOTOR CO., U.S.A.

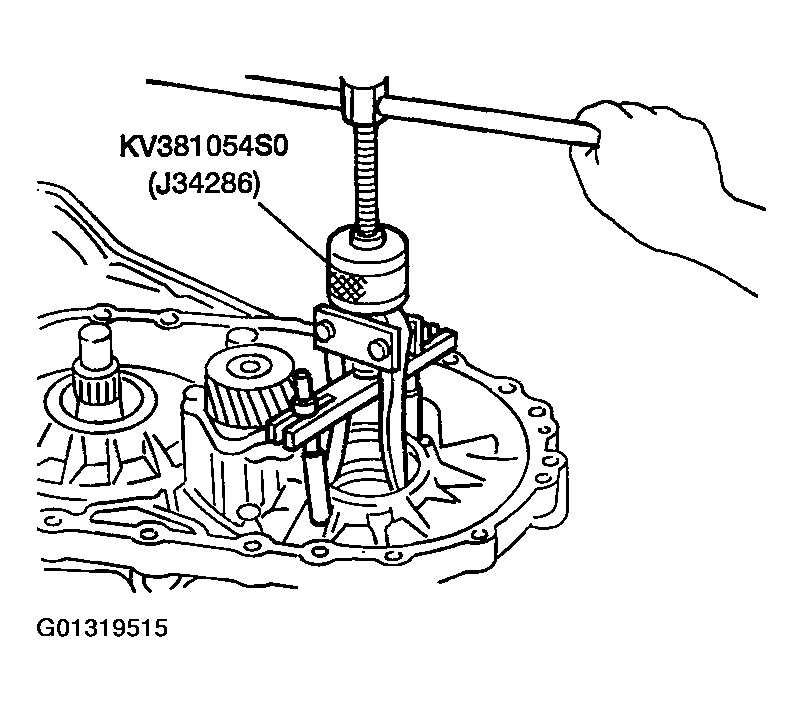

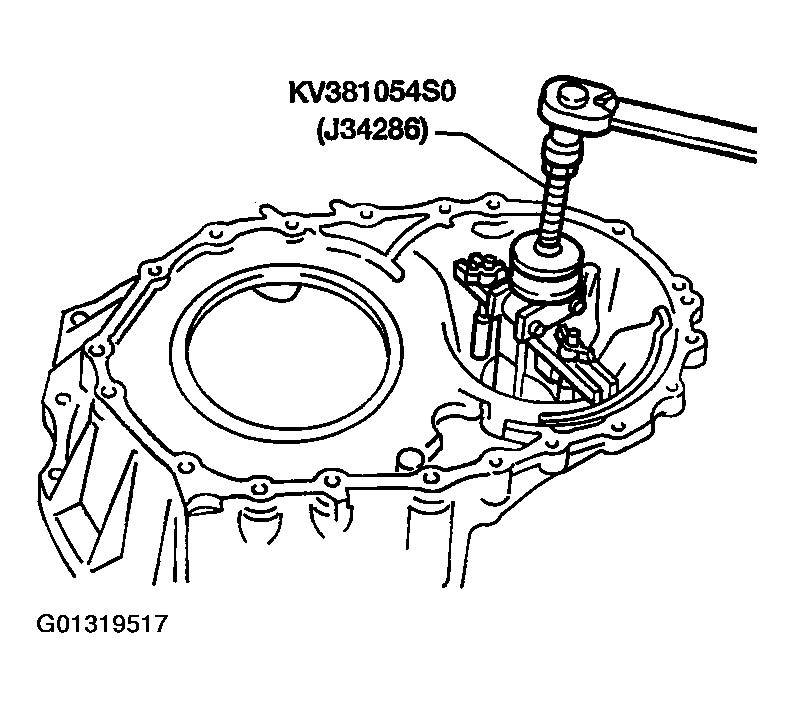

4. Remove idler gear with puller using Tool.
   Fig 58: Removing Idler Gear

   Courtesy of NISSAN MOTOR CO., U.S.A.

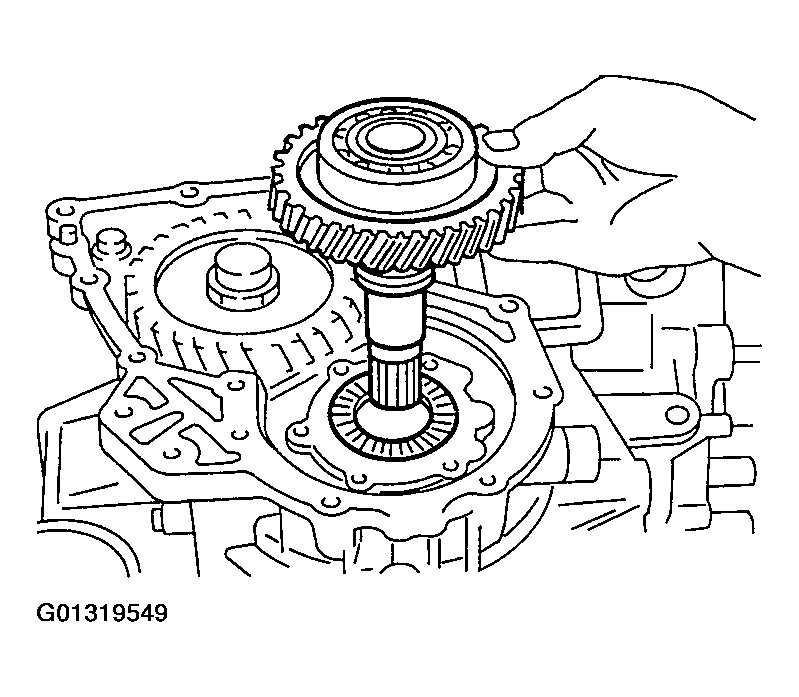

5. Remove reduction pinion gear.
6. Remove adjusting shim from reduction pinion gear.

Fig 59: Removing Adjusting Shim From Reduction Pinion Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

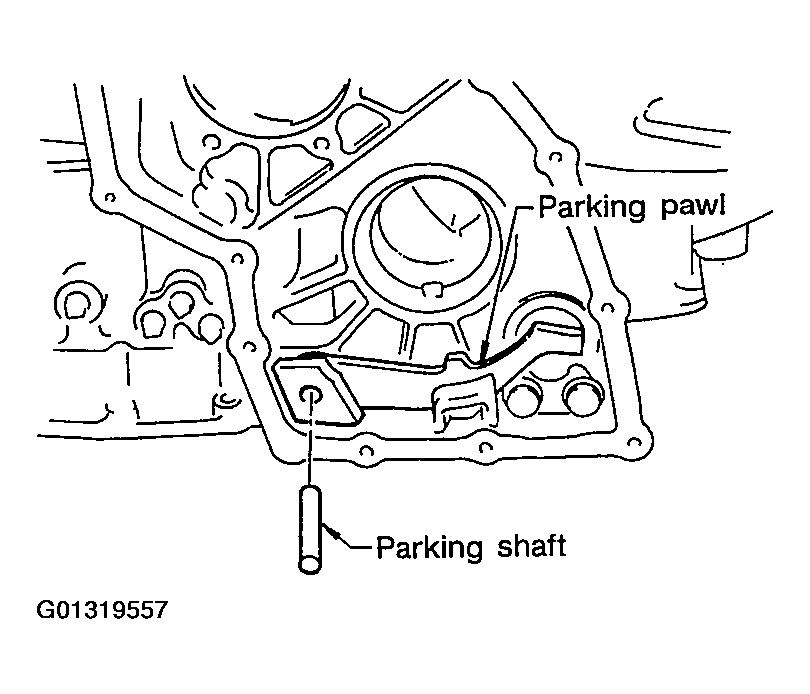

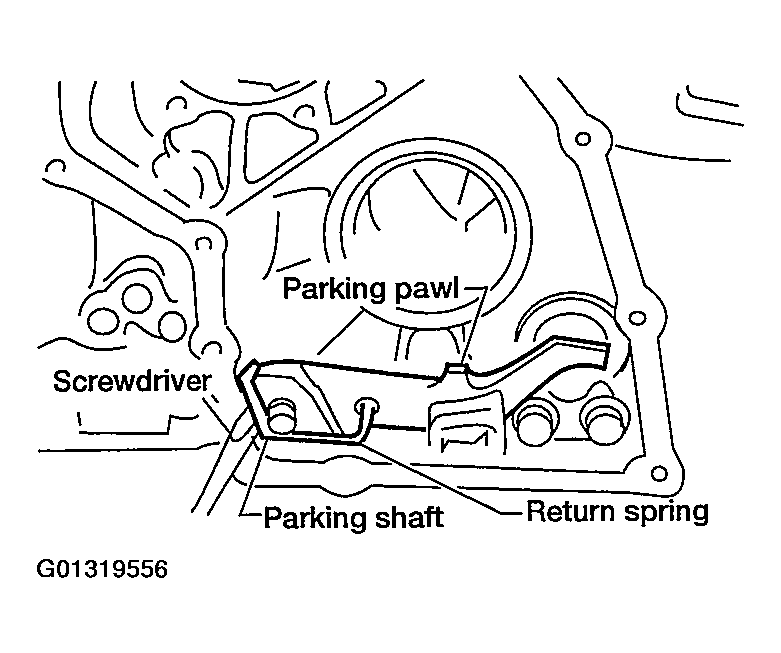

• Check parking actuator support for damage or wear.

Fig 62: Removing Parking Actuator Support From Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.
