Section 5 (Automatic Transaxle (Re4F03B))
›
Trouble Diagnosis - Introduction
›
Work Flow
›
Work Flow Chart
Work Flow Chart
WARNING:
This page is about a different variant/trim than selected.

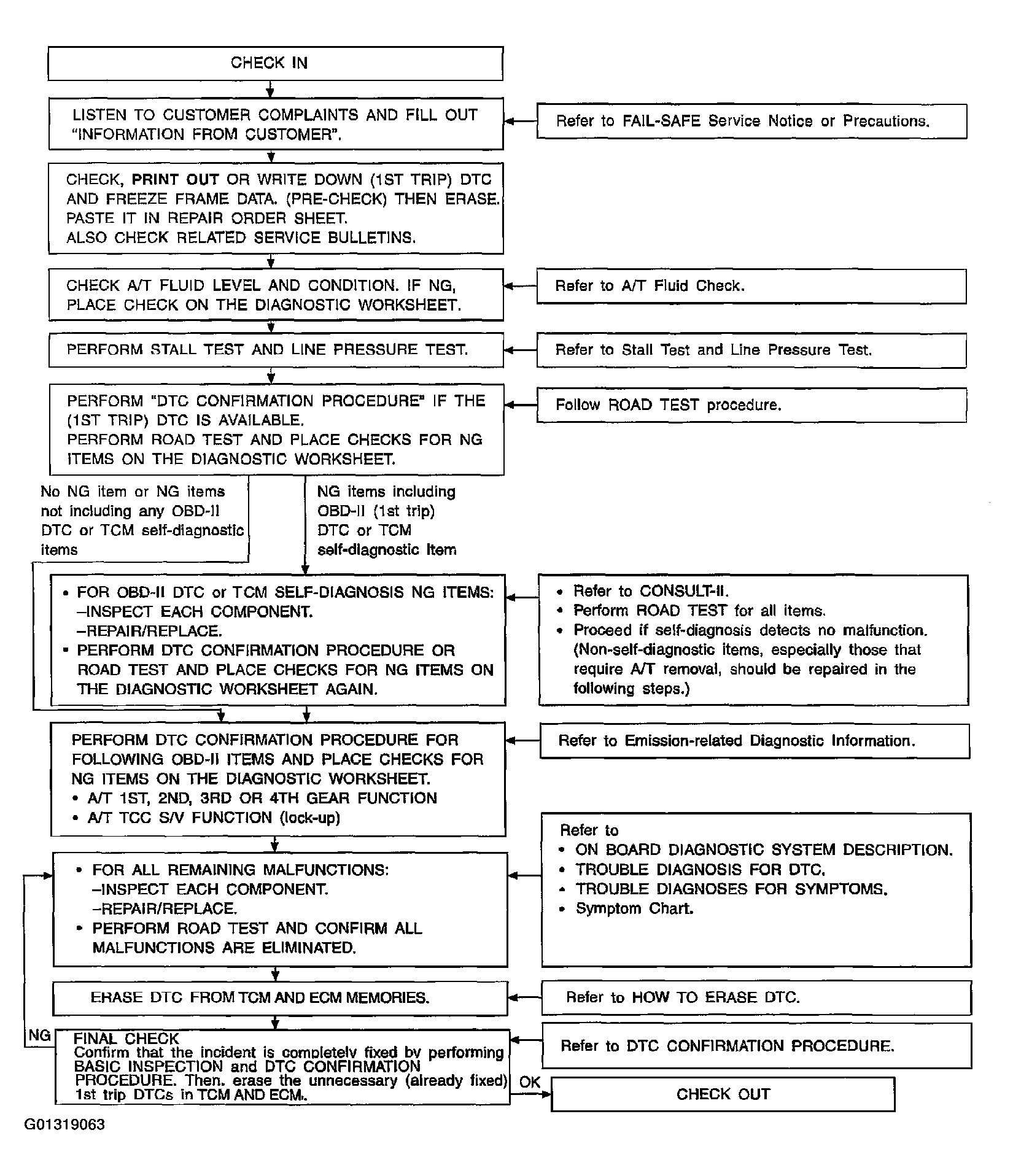

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
